Specifications

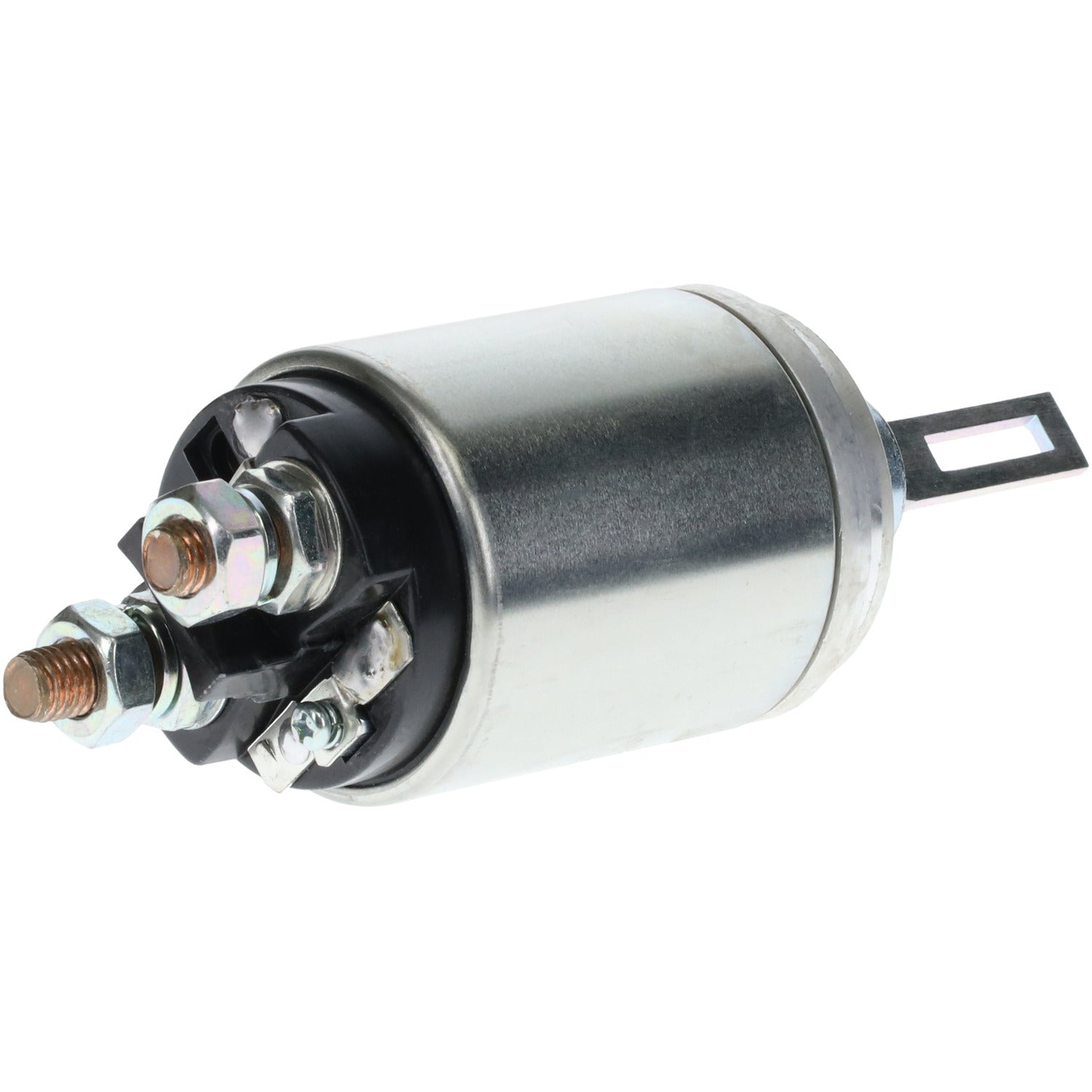

SPECS:12 Volt, 3-Terminal
SPECS FOR:Bosch 354 Series DD Starters
DIM 1:Batt. Term. M10 x 1.5
DIM 2:Motor Term. M10 x 1.5
DIM 3:Switch Term. M4 x 0.7 Hole
NOTE 1:Plunger slot length 23mm.
NOTE 2:For starters w/ early 401 series solenoids use adapter plate (included).
Voltage
12
LESTER NUMBERS
16293, 16363, 16364, 16365, 16564, 17114, 17159, 18370, 18467, 18468, 19675, 30121, 32178, 32228
Replaces
Bosch 0 331 400 001, 0 331 400 003, 0 331 400 006, 0 331 400 007, 0 331 400 009, 0 331 400 011, 0 331 401 006, 0 331 401 008, 0 331 401 009, 0 331 401 010, 0 331 401 015, 0 331 401 016, 0 331 401 027, 0 331 401 508, 0 331 401 509, 0 331 402 077, 0 331 402 078, DAF 163862, Fiat 9007857, IHC, Navistar 3078458R91, KHD 1299202, 1301841, Mercedes-Benz 000-152-52-10
Replaces
Bosch 0 331 400 001, 0 331 400 003, 0 331 400 006, 0 331 400 007, 0 331 400 009, 0 331 400 011, 0 331 401 006, 0 331 401 008, 0 331 401 009, 0 331 401 010, 0 331 401 015, 0 331 401 016, 0 331 401 027, 0 331 401 508, 0 331 401 509, 0 331 402 077, 0 331 402 078, DAF 163862, Fiat 9007857, IHC, Navistar 3078458R91, KHD 1299202, 1301841, Mercedes-Benz 000-152-52-10
