Specifications

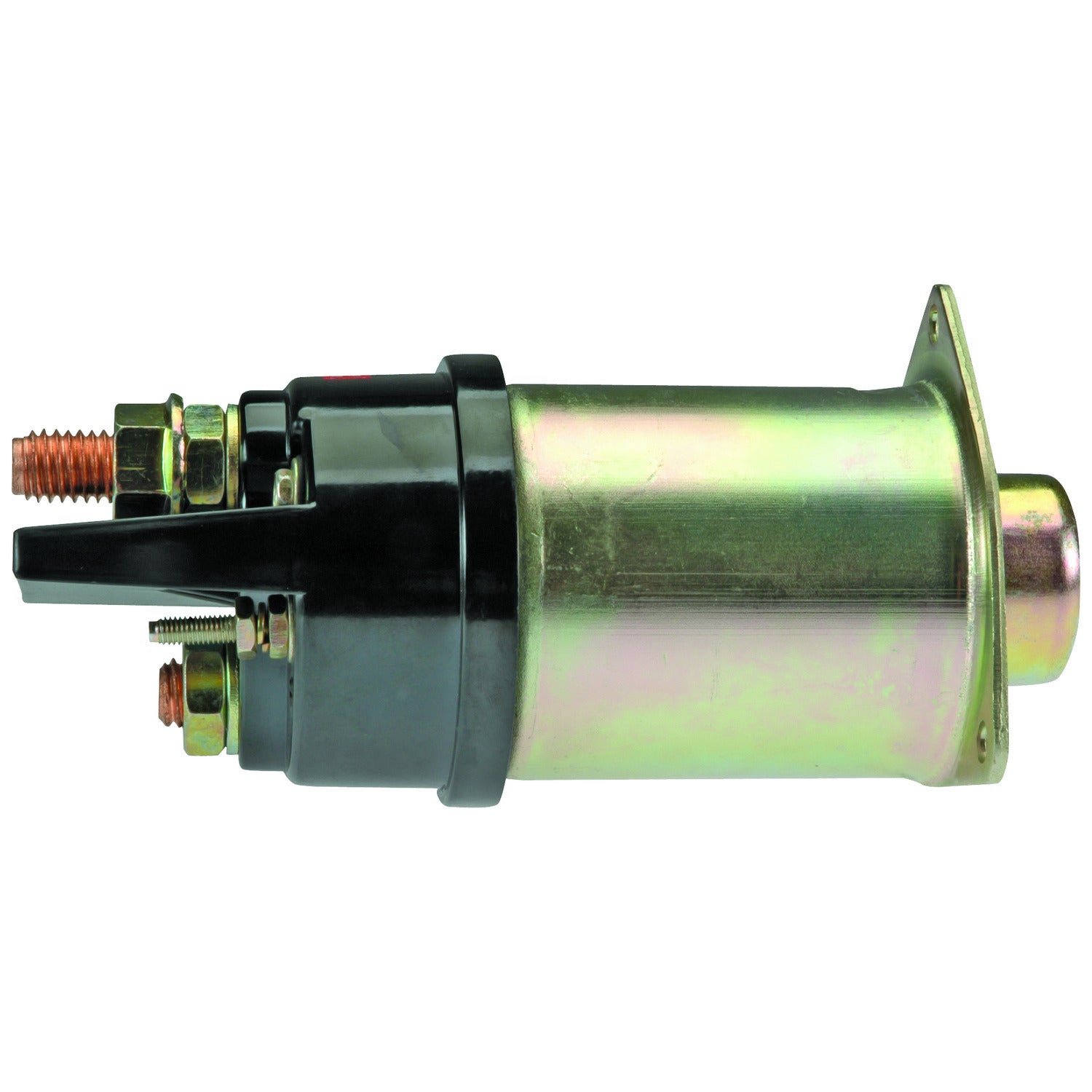

SPECS:24 Volt, 4-Terminal, Grounded Base
SPECS FOR:Delco 37MT Series DD Starters
DIM 1:Batt. Term. 1/2-13
DIM 2:Motor Term. 1/2-13 (w/ 1/4-20 Int. Thd.)
DIM 3:Switch Term. 10-32 Post (RH)
DIM 4:Dummy* Term. 10-32 Post (LH)
NOTE 1:With Jump-Start Protection cap.
NOTE 2:*Dummy terminal is used to secure cover used w/ Jump-Start Protection cap.
Voltage
24
LESTER NUMBERS
6240, 6278, 6280, 6287, 6291, 6397, 6405, 6414, 6458, 6459, 6689
Replaces
Delco 1115622, 1115627, D916A, D921A
UNIT NUMBERS
Caterpillar 0R8854, 0R9727, 204-9742, 8C4774, 8C4775, TR0395; Cummins 3675116RX, 3675117RX, 3675119RX, 3908594; Delco 10451295, 10461297, 10478811, 10478819, 10478960, 10478976, 10479020, 10479108, 10479179, 10479181, 1993917, 1993918, 1993920, 1993921, 1993930, 1993953, 1993954, 1993955, 1993986; John Deere RE36646, RE38632, RE41759, RE43184, RE43300, RE44514, RE48077, RE48134, RE48135, RE59586, RE65175, SE501408, TY24926, TY6797; Onan 1912038; Prestolite MS3-500
