Specifications
SPECS:12 Volt, 4-Terminal, Grounded Base
SPECS FOR:Delco 35MT Ext. Rotatable DD Starters
DIM 1:Batt. Term. 3/8-16 (LH)
DIM 2:Motor Term. 3/8-16 (RH)
DIM 3:Switch Term. 8-32 Post
DIM 4:Relay Term. 10-32 Post

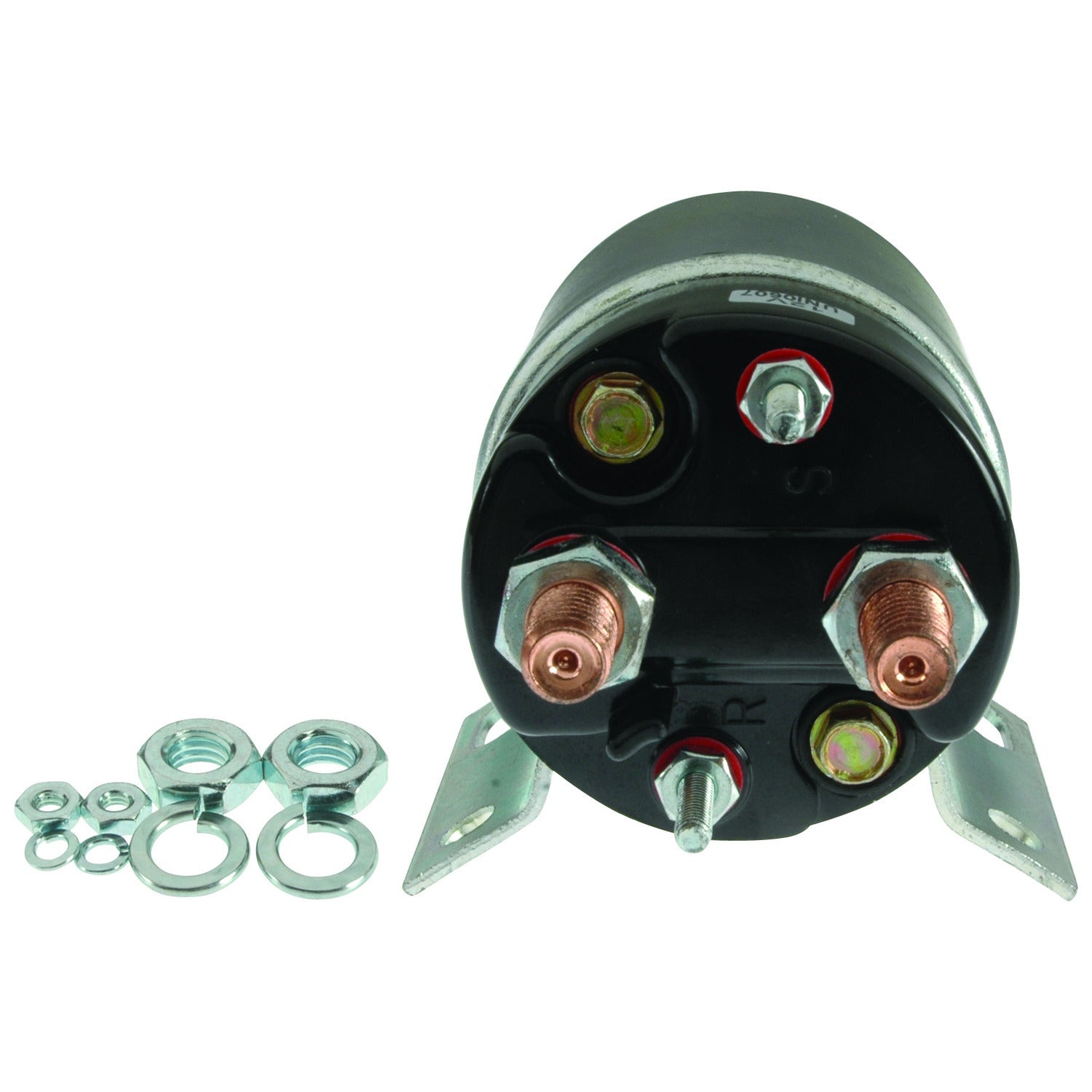

NOTE 1:Representative image, actual item may vary
Voltage
12
LESTER NUMBERS
3276, 3278, 3355, 3363, 4813, 4820, 4840, 4843, 4850, 4885, 4888, 4893, 4894, 4898, 4909, 4953, 4998, 6187, 6188, 6192, 6198, 6659
Replaces
Caterpillar 690814, Delco 1115518, 1115522, 1115528, 1115530, 1115531, 1115541, 1115553, 1115584, 1115585, 1119883, D953, Fiat Allis 73116827
UNIT NUMBERS
Allis-Chalmers 9004857-0; Case 406133R91, A145555, A149056, A47472, A59217, A64906, A64907; Caterpillar 369714, 690837; Delco 1108280, 1113389, 1113391, 1113392, 1113396, 1113397, 1113399, 1113400, 1113401, 1113404, 1113405, 1113412, 1113413, 1113416, 1113417, 1113418, 1113419, 1113420, 1113421, 1113422, 1113424, 1113425, 1113426, 1113428, 1113430, 1113431, 1113432, 1113433, 1113434, 1113435, 1113436, 1113437, 1113439, 1113440, 1113441, 1113442, 1113446, 1113447, 1113455, 1113473, 1113476, 1113478, 1113484, 1113488, 1113489, 1113490, 1113493, 1113494, 1113498, 1113499, 1113582, 1113586, 1113675, 1113681, 1113682, 1113684, 1113686, 1113687, 1113689, 1113698, 1113699, 12301397, 12301399; IHC, Navistar 107369C91, 107390C91, 107677C9, 130985C91, 564477C91, 678441C91, 67928C91, 702721C92, 739713C9, 739713C91; John Deere AR62227, AR77215, AR77254, AR78538, SE502712, TY1597, TY6618, TY6701; Prestolite 2500LC; White 155-852AS, 20-0006188
