Specifications

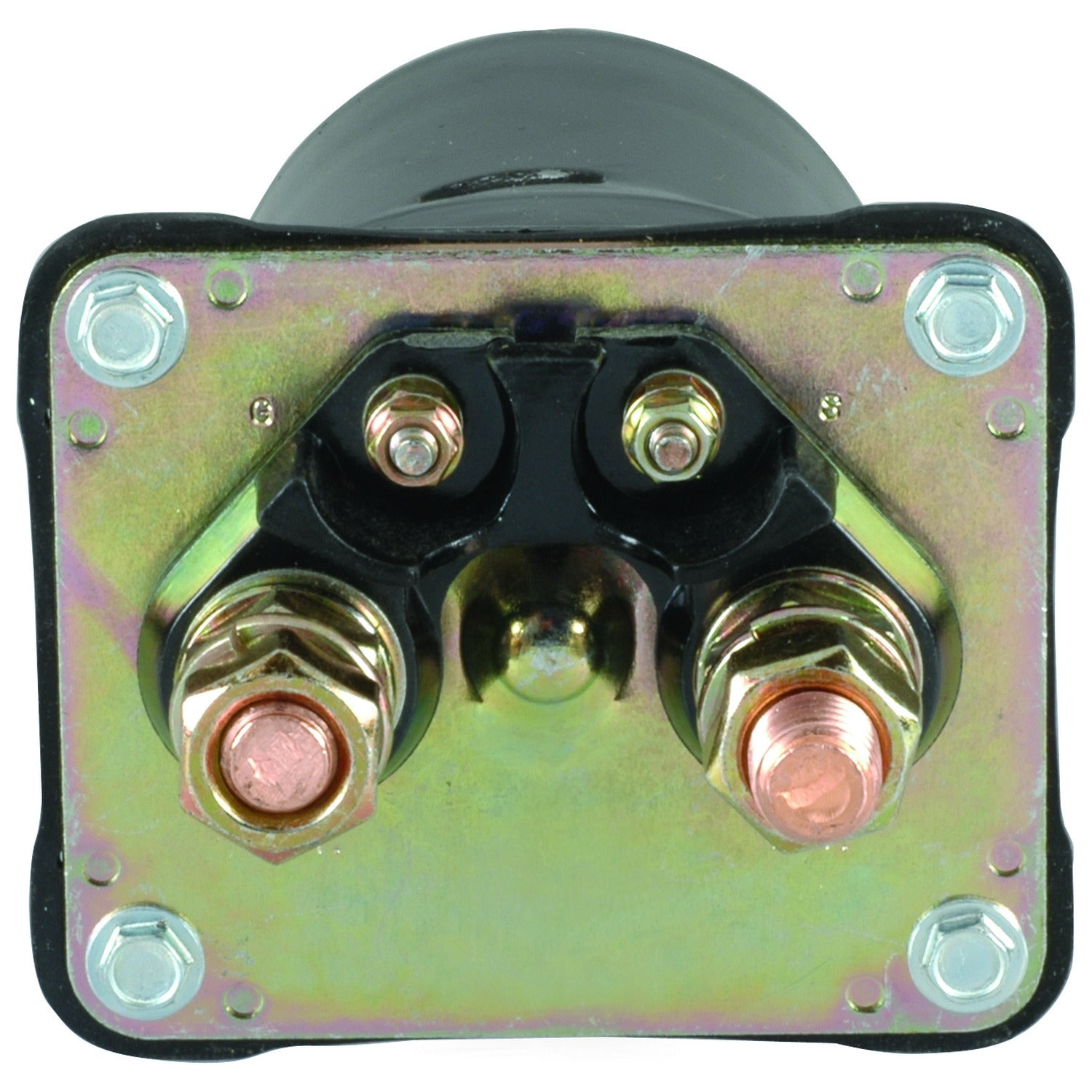

SPECS:12 Volt, 4-Terminal, Insulated Base
SPECS FOR:Delco 40MT, 50MT Series DD Starters
DIM 1:Batt. Term. 1/2-13 (RH)
DIM 2:Motor Term. 1/2-13 (LH)
DIM 3:Switch Term. 10-32 Post (RH)
DIM 4:Grd. Term. 10-32 Post (LH)
NOTE 1:Representative image, actual item may vary
Voltage
12
LESTER NUMBERS
3046, 3073, 3290, 3339, 3342, 3374, 3701, 3756, 3770, 3905, 3907, 3974, 3979, 3996, 4851, 6202, 6227, 6228, 6229, 6236, 6238, 6243, 6281, 6349, 6517, 6528, 6530, 6649, 6671
Replaces
Case A47931, Caterpillar 2N-1973, 3T-5045, 7L-6586, 9X-8236, Cummins 3603870RX, 3604230RX, Delco 1115556, 1115606, Ford E1HZ-11390-A, SW1720, Mack Truck 2132-1115556, 2132-1119879, Massey Ferguson 1022-662-M91, 1055-740-M91, 1903-173-M91, White 30-3090892, 30-3370895, 867224A, V1117550
UNIT NUMBERS
Case 121555C91, 20-1295T91, 262762C91, 412732C91, 415515C91, 431481C91, 431481R91, 510275C91, 522458C91, 523579C91, 530692C91, 777525C91, 782685C91, 786086C91, 875755R91, A145324, A162578, A34442, A47464, A75864; Caterpillar 0R5347, 120-9100, 2N3538, 3T2654, 3T2655, 3T2659, 3T2879, 3T3154, 3T3156, 4L9547, 4N0956, 4N1064, 4N9253, 4N956, 5L4160, 5L4168, 5L4169, 5L5667, 5L5867, 7G9132, 7N6503, 7T1081, 7T2265, 7T9254, 8C359, 8C3592, 8C3593, 8C3595, 8C3648, 8L5881, 8L8206, 9L3597, 9L6200, 9N0716, 9N0721, 9N716, 9W0058, SL8206; Cummins 3593752RX, 3603863RX, 3603864RX, 3603865RX, 3603895RX, 3604232RX, 3604492RX, 3604680RX; Delco 10461045, 10461046, 10461056, 10461059, 10461060, 10461073, 10461178, 10478813, 10478877, 10478881, 10478904, 10478906, 10478910, 10478917, 1109221, 1109274, 1109295, 1109545, 1109554, 1109790, 1109828, 1109964, 1113406, 1113410, 1113475, 1113480, 1113500, 1113532, 1113537, 1113538, 1113543, 1113547, 1113674, 1113678, 1113691, 1114080, 1114748, 1114749, 1114750, 1114751, 1114752, 1114753, 1114754, 1114757, 1114758, 1114761, 1114765, 1114766, 1114769, 1114770, 1114771, 1114795, 1114802, 1114807, 1114808, 1114809, 1114810, 1114811, 1114812, 1114814, 1114815, 1114817, 1114818, 1114819, 1114821, 1114822, 1114823, 1114825, 1114827, 1114828, 1114832, 1114834, 1114835, 1114836, 1114839, 1114882, 1114883, 1114884, 1114885, 1114886, 1114888, 1114889, 1114890, 1114891, 1114892, 1114893, 1114894, 1114895, 1114896, 1114897, 1114898, 1114899, 1114900, 1114901, 1114904, 1114906, 1114908, 1114911, 1114913, 1114919, 1114920, 1114927, 1114928, 1114929, 1114930, 1114931, 1114932, 1114933, 1114934, 1114938, 1114942, 1114943, 1114955, 1114956, 1114957, 1114960, 1114961, 1114967, 1114969, 1114975, 1114976, 1114977, 1114985, 1114986, 1114988, 1114990, 1114991, 1114992, 1114993, 1114994, 1114997, 1114999, 1990200, 1990201, 1990208, 1990209, 1990211, 1990212, 1990214, 1990215, 1990218, 1990219, 1990221, 1990223, 1990224, 1990252, 1990261, 1990277, 1990280, 1990296, 1990298, 1990299, 1990303, 1990323, 1990325, 1990329, 1990481, 1993703, 1993859, 1993864, 1993968; Detroit Diesel R0461178; Ford C5TF-11000-A, C5TZ-11002-C, C6TF-11000-A, C6TF-11000-C, C6TZ-11002-E, C7TF-11000-B, C7TZ-11002-B, C8TF-11000-C, C8TZ-11002-B, D3TF-11001-BA, D4TZ-11002-A, D4TZ-11002-B, D4TZ-11002-E, D4TZ-11002-F, D9PZ-11002-A, E0HZ-11002-A, E0HZ-11002-B, E2HZ-11002-A, E4HZ-11002-A, E4HZ-11002-B, E6HT-11001-AA, E6HZ-11002-A, E6HZ-11002-B; Ford Engineering C5TF-A, C6TF-A, C6TF-C, C7TF-B, C8TF-C; IHC, Navistar 262762C91, 382637C91, 412732C91, 415515C91, 431481C91, 431481R91, 510275C91, 522458C91, 523579C91, 530692C91, 5344721C91, 599103C91, 673796C93, 684639R91, 777525C91, 782685C91, 786086C91, 875755R91; John Deere AR102188, AR46886, AR62153, RE10321, RE13942, SE501442, SE501450, TY1902, TY6697, TY6723; Komatsu 1253279H91; Letrika (Iskra) Tech. AZG4686, AZG4688; Mack Truck 8MJ4172P1, 8MJ4172P3, 8MJ4172T, 8MJ417P1, 8MJ498P3; Massey Ferguson 1055-741-M91, 1446-098-M91, 1903-113-M91, 1903-123-M91, 521-465-M91, 525-831-M91, 527-902-M91, 527-902-M92, 536-011-M91, 722-578-M91; New Holland 254074; Prestolite MS2-503; Volvo 3945661; Western Star 820013417; White 10A18920, 20-70000400, 20-7000400, 30-3066940, 30-3110486, 30-3212645, V1114241
