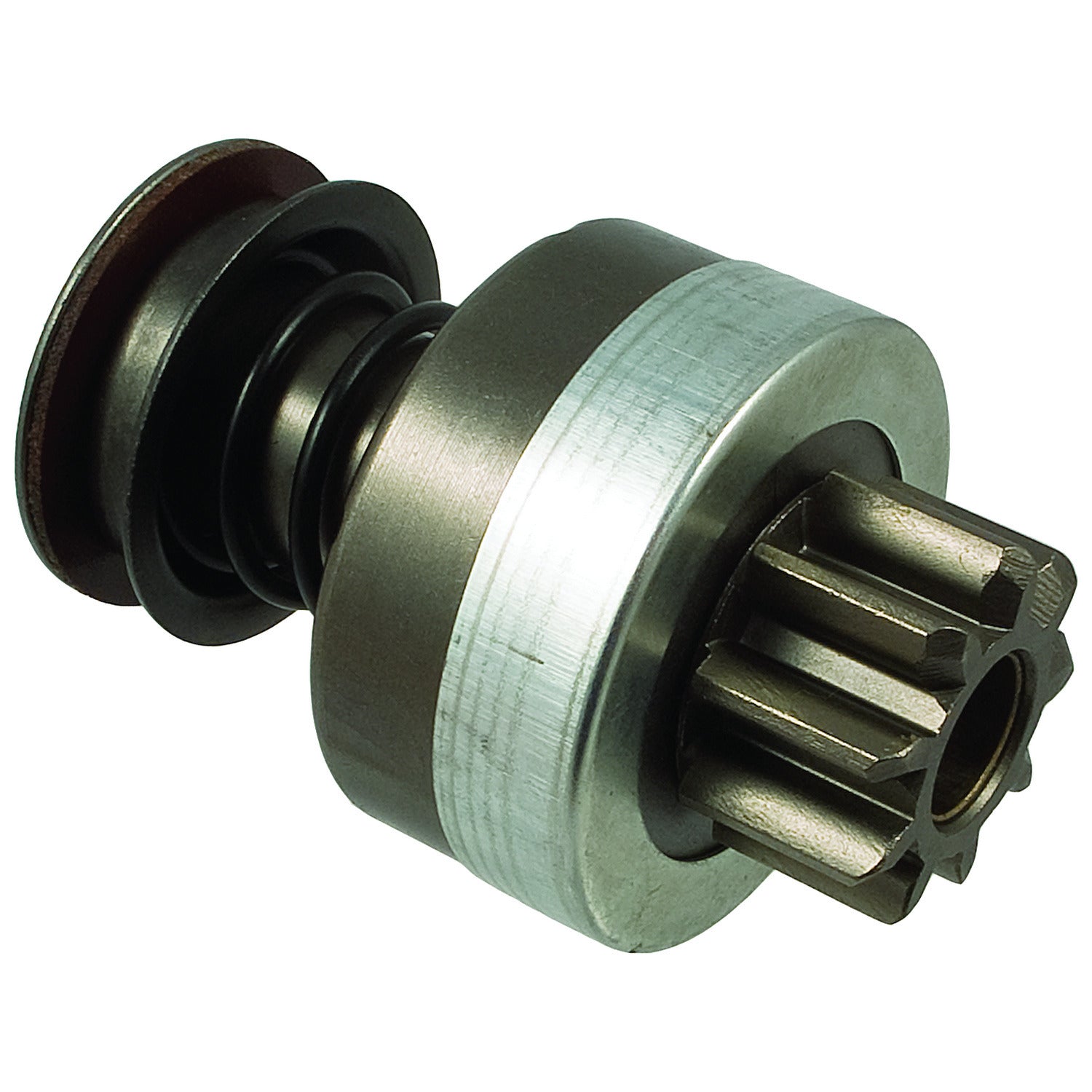

Aftermarket Starter Drive 54-9108

Specifications
SPECS: 9-T, CW, 10-SPL
SPECS FOR: Bosch 359, 360 Series DD Starters
DIM 1: 14.3mm ID, 34mm Gear OD, 91mm L
DIM 2: 22mm Root Dia., 23mm Gear Tooth L
NOTE 1: Splines inset 13mm from end of drive

LESTER NUMBERS
16559, 16560, 17045, 17073, 17074, 17076, 17106, 17136, 17184, 17228, 17230, 17320, 18032, 18111, 18229, 18237, 18250, 18371, 18462, 18926, 18927, 18942, 19401, 19673, 19676, 19782, 19920, 30004, 30056, 30057, 30068, 30195, 32032, 32033, 32060, 32066

Replaces
Bosch 1 006 209 56G, 2 006 209 107, 2 006 209 119, 2 006 209 301, 2 006 209 341, 2 006 209 401, 2 006 209 406, 2 006 209 421, 2 006 209 422, 2 006 209 436, 2 006 209 446, 9 001 083 436, Fiat 7115980, 7122580, 752042536, 790280900, 79028909, 9008243, 9918347, 9926112, 9928303, 9935164, 9956681, 9957919, 9958529, 9959619, Hanomag Massey Ferguson 114939101, IHC, Navistar 3078 758 R91, 3078 758 R92, 3078 960 R91, 3079 045 R91, 3079 178 R91, 3079 249 R91, 3132 442 R1, KHD 1171929, 129 0179, 130 1345, 130 4845, 130 7862, 130 8377, 130 8752, 1310682, Lancia 9008243, Massey Ferguson 2861-879-M1, Mercedes-Benz 000-151-66-13, 000-151-69-13, 000-151-70-13, 000-151-88-13, Renault 5000241468, 5000588872, 5000589686, 7701003812, Scania 192010, Steyr 609090711, Volvo 241277, 241877, 244361, 6645037

UNIT NUMBERS
Agritalia 130652; Bomag 057 109 12, 057-109-01, 057-109-03, 057-109-05, 057-109-19, 057-109-27, 057-109-30, 057-109-91, 057-109-92, 057-198-97, 057109019, 05710903, 05710912; Bosch 0 001 354 084, 0 001 358 048, 0 001 358 049, 0 001 359 012, 0 001 359 013, 0 001 359 014, 0 001 359 017, 0 001 359 022, 0 001 359 023, 0 001 359 025, 0 001 359 027, 0 001 359 031, 0 001 359 032, 0 001 359 038, 0 001 359 043, 0 001 359 044, 0 001 359 049, 0 001 359 051, 0 001 359 055, 0 001 359 057, 0 001 359 062, 0 001 359 071, 0 001 359 072, 0 001 359 073, 0 001 359 074, 0 001 359 077, 0 001 359 078, 0 001 359 083, 0 001 359 084, 0 001 359 087, 0 001 359 089, 0 001 359 091, 0 001 359 097, 0 001 359 100, 0 001 359 101, 0 001 359 111, 0 001 359 113, 0 001 359 118, 0 001 359 119, 0 001 360 004, 0 001 360 007, 0 001 360 008, 0 001 360 010, 0 001 360 011, 0 001 360 012, 0 001 360 014, 0 001 360 017, 0 001 360 018, 0 001 360 019, 0 001 360 022, 0 001 360 023, 0 001 360 024, 0 001 360 025, 0 001 360 027, 0 001 360 028, 0 001 360 030, 0 001 360 031, 0 001 360 032, 0 001 360 034, 0 001 360 035, 0 001 360 036, 0 001 360 037, 0 001 360 038, 0 001 360 039, 0 001 360 040, 0 001 360 045, 0 001 360 047, 0 001 360 049, 0 001 360 052, 0 001 360 056, 0 001 360 057, 0 001 360 059, 0 001 360 061, 0 001 360 065, 0 001 364 100, 0 001 364 105, 0 001 364 108, 0 001 365 004, 0 001 365 007, 0 001 365 008, 0 001 368 008, 9 000 083 027, 9 000 083 028, 9 000 083 031, 9 000 083 036, 9 000 083 045, 9 000 083 049, 9 000 083 054, 9 000 083 056, 9 000 083 060, 9 000 083 064, 9 000 083 065, 9 000 083 068, 9 000 083 074, 9 000 083 082, 9 000 453 082, 9 001 083 643, 9 001 083 645, 9 001 083 647, F 000 AL0 157; Case 9.0572E+11, E010372, E155737, E41565, E41565EX; Claas 1053560, 6853810; Cummins 105-356-0, 1053560; DAF 1516761R; Delco 19024233, 19024274; Deutz Engine Mfr 0117 3560, 0118 2933, 0118 3243, 0118 3246, 0118 3685, 0118 3720, 0304 7129, 1161422, 1164995, 1172099, 1302023, B17R24X4, B29R24X4H7622; Faun 1701054; Fiat 4053778, 42522942, 75207601, 8962534, 8962687, D75207601; Hanomag Massey Ferguson 114939701, 114939702; IHC, Navistar 1210377R91, 3055557R91, 3144932R92, 3218667R91; Iveco 42522864; John Deere SE501414; Kassbohrer 7-431-027-000; KHD 116-1384, 116-1422, 116-3626, 116-3669, 116-3758, 116-4994, 116-4995, 116-4996, 1161420, 117-2099, 117-9586, 130-1833, 130-2023; Letrika (Iskra) 11.130.407, 11.130.412, 11.130.491, 11.130.551, 11.130.552, 11.130.660, 11.130.743, 11.130.824, 11.130.889; Letrika (Iskra) Tech. AZE4193, AZF4233, AZF4313, AZJ3109, AZJ3113, AZJ3115, AZJ3118, AZJ3132, AZJ3169, AZJ3170, AZJ3196, AZJ3213, AZJ3219, AZJ3231, AZJ3232, AZJ3237, AZJ3242, AZJ3244, AZJ3262, AZJ3263, AZJ3269, AZJ3277, AZJ3287, AZJ3310, AZJ3314, AZJ3320, AZJ3333, AZJ3548, AZJ3593; Letrika Old 11.132.141; Liebherr 610 70 17, 620-08-27; Mack Truck 8MJ4167; Magneton 9-124-310, 9-124-320, 9-124-340, 9-124-350, 9-142-744, 9-142-746, 9-142-749, 9-142-801, 9-142-802, 9-142-803, 9-142-805, 9-144-742, 9-144-744, 9-144-820; Marelli 063206834010, 063216733010, 063227604010, 063522310030, 063523680010, 063523680270, 063523683010, 063523683090, 943252206, 943252207010, 943252234, 943252244, MSR699, MSR716, MSR726; Mercedes-Benz 001 151 94 01 80, 001 151 96 01 80, 001-151-94-01, 001-151-96-01, 001151940180, 001151960180, 002 151 57 01 80, 002 151 94 01 80, 002-151-07-01, 002-151-56-01, 002-151-57-01, 002-151-94-01, 003 151 08 01 80, 003 151 13 56 80, 003 151 87 01 80, 003-151-08-01, 003-151-13-56, 003-151-87-01, 343-151-71-01, 343-151-72-01, 344-151-74-01, 376-151-71-91, 376-151-72-01, A0011519401, A001151940180, A0011519601, A001151960180, A0021515601, A0021515701, A002151570180, A0021519401, A002151940180, A0031510801, A003151080180, A003151135680, A0031518701, A003151870180, A343-151-71-01, A3431517201, A3441517401; MWM Diesel 905720100074; O&K (Orenstein & Koppel) 6209190; Original Reference Number 1097, EF10821, S511065, SBO667A, SBO667E; Prestolite 20500923, 35258240, 35261420, 858317, 858780GB

Aftermarket Starter Drive 54-9108 Product Overview

Aftermarket Starter Drive 54-9108 is an aftermarket starter drive intended for compatible starter repair, rebuilding, and maintenance applications. It is designed for professional rebuilders, technicians, repair shops, and customers who need a dependable replacement for a worn, damaged, corroded, or missing component. Before ordering, confirm the product name, part number 54-9108, measurements, mounting style, connector configuration, original equipment references, and application information.

Product Specifications and Application Details

The original listing provides these product-specific details: Specifications SPECS: 9-T, CW, 10-SPL SPECS FOR: Bosch 359, 360 Series DD Starters DIM 1: 14.3mm ID, 34mm Gear OD, 91mm L DIM 2: 22mm Root Dia., 23mm Gear Tooth L NOTE 1: Splines inset 13mm from end of drive LESTER NUMBERS 16559, 16560, 17045, 17073, 17074, 17076, 17106, 17136, 17184, 17228, 17230, 17320, 18032, 18111, 18229, 18237, 18250, 18371, 18462, 18926, 18927, 18942, 19401, 19673, 19676, 19782, 19920, 30004, 30056, 30057, 30068, 30195, 32032, 32033, 32060, 32066 Replaces Bosch 1 006 209 56G, 2 006 209 107, 2 006 209 119, 2 006 209 301, 2 006 209 341, 2 006 209 401, 2 006 209 406, 2 006 209 421, 2 006 209 422, 2 006 209 436, 2 006 209 446, 9 001 083 436, Fiat 7115980, 7122580, 752042536, 790280900, 79028909, 9008243, 9918347, 9926112, 9928303, 9935164, 9956681, 9957919, 9958529, 9959619, Hanomag Massey Ferguson 114939101, IHC. Use this information together with the product photographs, dimensions, cross-reference numbers, and application notes when confirming the correct replacement.

Key Features and Benefits

• Product-specific aftermarket replacement for compatible starter applications
• Part-number-focused identification for easier comparison and ordering
• Suitable for professional repair, rebuilding, inspection, and maintenance work
• Designed to support dependable fit, operation, and long-term service performance
• Useful for matching original equipment numbers and common cross-reference numbers

Compatibility and Fitment Guidance

Fitment can vary by vehicle model, starter or alternator design, production date, manufacturer, connector style, mounting configuration, and original equipment number. Compare the listed part number, product photos, dimensions, Lester numbers, unit numbers, and replacement references with the original component. Contact RCAutoElectric when additional compatibility confirmation is required.

Professional Installation Notes

Inspect the complete assembly and related components before installation. Professional installation or rebuilding service is recommended whenever specialized tools, electrical testing, soldering, pressing, torque specifications, or technical adjustments are required.
