Specifications
SPECS:12 Volt

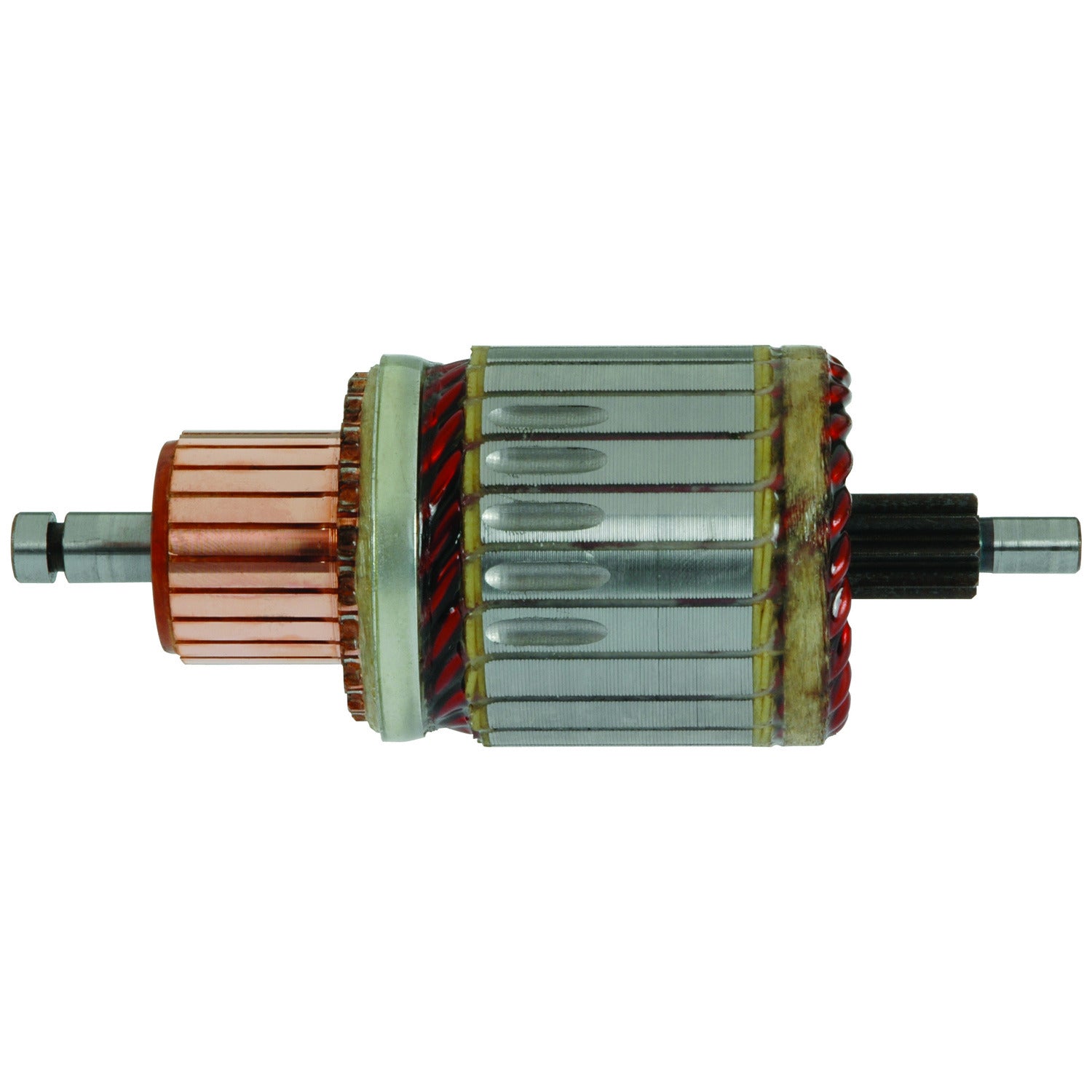

SPECS FOR:Bosch 115 Series PMGR Starters
Dim 1:146mm OAL
Dim 2:9-Splines
Dim 3:8mm Shaft OD, Front Bearing
Dim 4:10mm Shaft OD, Rear Bearing
FEATURE 1:100% New
FEATURE 2:Precision machined shaft with ground bearing surfaces
FEATURE 3:Heat treated splines & bearing surfaces
FEATURE 4:Commutator with thick copper segments & stake welded hairpins
FEATURE 5:Banded hairpins at commutator
FEATURE 6:100% tested for balance, grounds & shorts
LESTER NUMBERS
10881, 17753, 17756, 17787, 17804, 17860, 17883, 17926, 17974, 19002, 19036, 19087, 19210, 32439, 32639, 32670, 32698, 32802
Replaces
Bosch 1 004 011 073, 1 004 011 092
UNIT NUMBERS
Audi, Volkswagen 012-911-023-E, 012-911-023-F, 012-911-023-FX, 012-911-023-G, 012-911-023-GX, 012-911-023-H, 012-911-023-HX, 012-911-023E, 012-911-023F, 012-911-023FX, 012-911-023G, 012-911-023GX, 012-911-023H, 012-911-023HX, 02Z-911-023-L, 02Z-911-023-LX, 02Z-911-023L, 02Z-911-023LX, 07C-911-023, 07C-911-023-X, 07C-911-023X; BMW 12-41-7-794-952, 12-41-7-796-892; Bosch 0 001 115 001, 0 001 115 002, 0 001 115 007, 0 001 115 008, 0 001 115 012, 0 001 115 015, 0 001 115 016, 0 001 115 017, 0 001 115 020, 0 001 115 021, 0 001 115 024, 0 001 115 039, 0 001 115 040, 0 001 115 041, 0 001 115 045, 0 001 115 046, 0 001 115 047, 0 001 115 048, 0 001 115 072, 0 001 115 073, 0 001 115 074, 0 001 115 075, 0 001 115 096, 0 001 115 097, 0 001 115 106, 0 001 115 107, 0 001 115 108, 0 001 115 109, 0 001 123 001, 0 001 123 002, 0 001 123 003, 0 001 123 024, 0 001 123 025, 0 001 123 026, 0 001 123 027, 0 001 123 052, 6 004 AA3 015, 6 004 AA4 000; Chrysler 56028210; GM 24460703, 9224109, 99224108; Marelli 063521150450, 063521150470, 944280171900, 944280179100, 944280181800, 944280199700, 944280212300, 944280213600, 944280801120; Mercedes-Benz 000-906-24-02, 000906240283, 005-151-16-01, 006-151-25-01, 006-151-25-01-80, 006-151-62-01, 006-151-74-01, 006-151-74-01-80, 006-151-98-01, 636 151 02 01, A 000 906 24 02, A 006 151 25 01, A 006 151 75 01, A 636 151 02 01, A-006-151-98-01, A0051511601, A006-151-62-01, A006-151-74-01, A006151250180, A0061517401, A006151740180; Opel 24-460-703, 55-351-631, 62-02-052, 90-07-007, 91-46-359, 91-463-599, 92-00-610, 92-00-890, 93-172-020, 93-176-056, 93-184-539; Porsche 955-604-107-00, 955-604-107-10, 955-604-107-11, 955-604-107-BX, 996-604-103-00; Renault 7700102800; Steyr 7794952, 7796892; Volvo 5003821, 8111007, 8111007-0, 8111007-4, 8111199-0, 8111199-9, 9162400, 9162400-0, 9162400-7, 9168267, 9168267-0, 9168267-4
