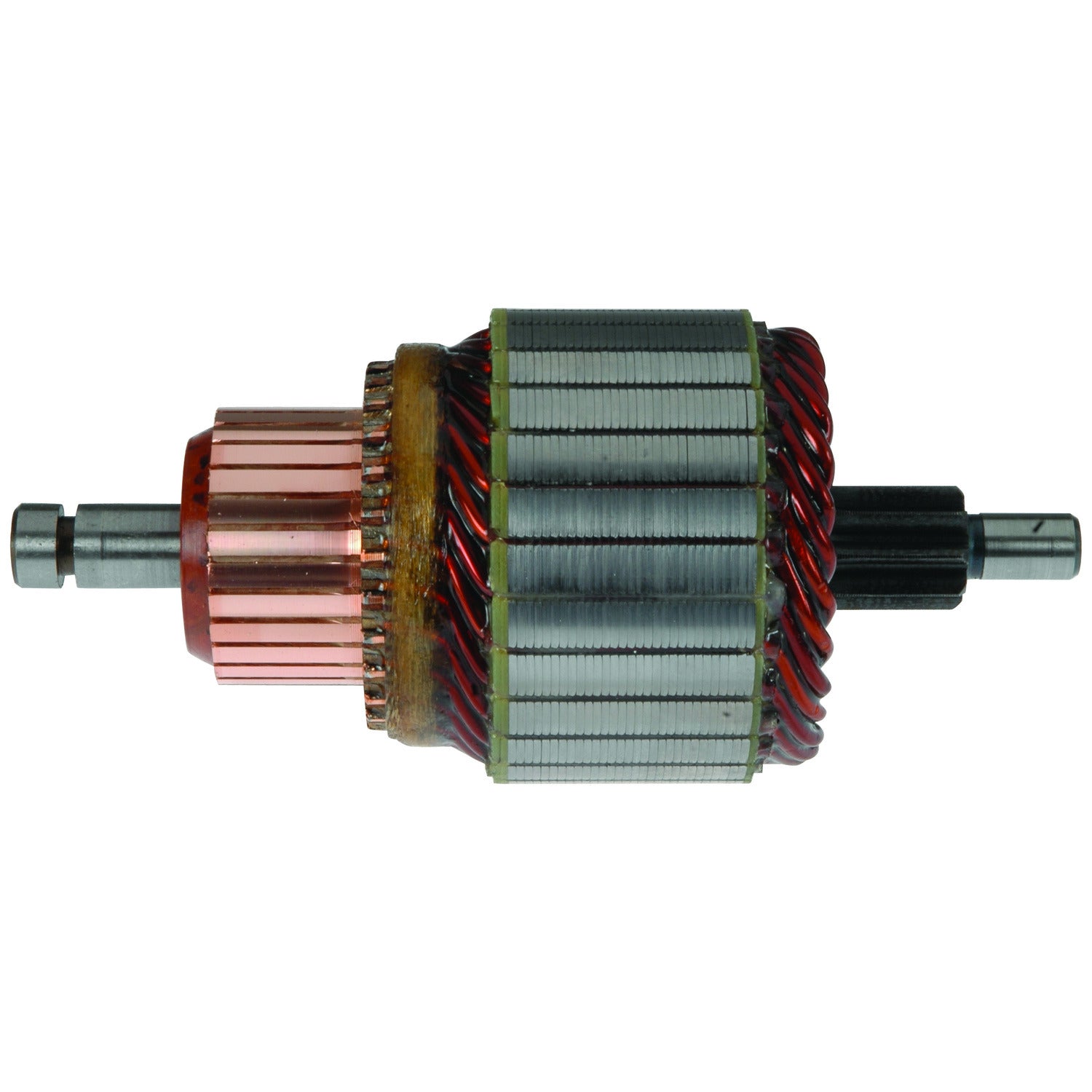

Click to zoom in
Specifications
SPECS:12 Volt
SPECS FOR:Bosch 107 Series PMGR Starters
Dim 1:123mm OAL
Dim 2:9-Splines
Dim 3:7.89mm Shaft OD, Front Bushing
Dim 4:9.93mm Shaft OD, Rear Bushing
FEATURE 1:100% New
FEATURE 2:Precision machined shaft with ground bearing surfaces
FEATURE 3:Heat treated splines & bearing surfaces
FEATURE 4:Commutator with thick copper segments & stake welded hairpins
FEATURE 5:Banded hairpins at commutator
FEATURE 6:100% tested for balance, grounds & shorts
LESTER NUMBERS
17560, 17563, 17730, 17736, 17758, 17812, 30817, 30975, 30984, 31165, 31208, 31213, 31223, 31244, 32448, 32611, 32740, 33084, 33102, 33103
Replaces
Bosch 1 004 011 046, 1 004 011 058, 1 004 011 063, 1 004 011 097
UNIT NUMBERS
Audi, Volkswagen 012-911-023, 012-911-023-X, 012-911-023X, 069-911-023-G, 069-911-023-GX, 069-911-023G, 069-911-023GX; Bosch 0 001 107 010, 0 001 107 011, 0 001 107 030, 0 001 107 031, 0 001 107 032, 0 001 107 037, 0 001 107 038, 0 001 107 039, 0 001 107 048, 0 001 107 049, 0 001 107 056, 0 001 107 059, 0 001 107 064, 0 001 107 070, 0 001 107 071, 0 001 107 075, 0 001 107 077, 0 001 107 079, 0 001 107 080, 0 001 107 082, 0 001 107 086, 0 001 107 088, 0 001 107 092, 0 001 107 093, 0 001 107 098, 0 001 107 100, 0 001 107 101, 0 001 107 108, 0 001 107 112, 0 001 107 113, 0 001 107 118, 0 001 121 003, 6 004 AA0 004, 6 004 AA0 013, 6 004 AA0 018, 9 007 045 009, 9 007 045 016, 9 007 045 018, 9 007 045 020; Chrysler 04685664AC, 04686512, 046865124CB, 046865124CC, 04686512AB, 04686512AC, 04793210AB, 4557466, 4557468, 4672108, 4672108AB, 4686512, 4793110, 4793210, 4793210AB, 4793804, R4793210AB; DAF 1516657R, 1516683R; Ford 1067622, 95FB-11000-BD, 96FB-11000-MA, 96FB-11000-MB, 96FB-11000-MC, 96FB-11000-MD, 96FB-11000-ME, 97KB-11000-AA, 97KB-11000-AB, 97KB-11000-AC, R91AX 11000 KB1; Ford Engineering 1027772, 1416207, 95FB-BD, 96FB-MA, 96FB-MB, 96FB-MC, 96FB-MD, 96FB-ME, 97KB-AA, 97KB-AB, 97KB-AC; Holden 09-200-960, 93-184-536; Land Rover NAD101340; Letrika (Iskra) Tech. AZE2113, AZE2205, AZE2211, AZE2225; Marelli 063280006010, 063521070380, 063521070920, 063521070980, 063521071080, 943251334010, 943253111010, 943253114010, 944280175300, 944280179200, 944280183500, 944280184800, 944280188500, 944280193700, 944280199200, 944280801640, 944280801960; Mazda 1E03-18-400A; Mercedes-Benz 004-151-69-01, 005-151-46-01, A-004-151-69-01, A0051514601; Mitsubishi Motors 0467-2108AB, 4672-108AB, M04672108, MO4672108; Nissan, Infiniti 23300-1F705, 23300-1F715, 23300-5M000, 23300-94850, 23300-94851, 23300-99B00, 23300-99B05, 23300-99B06, 23300-99B15, 23300-99B16, 2330M-8U30ARW; Opel 24-422-258, 24-422-272, 55-351-638, 55351638, 90-371-766, 90-508-037, 90-586-916, 91-17-691, 92-00-960, 92-00-961, 93-104-536, 93-176-061, 93184536; Porsche 986-604-104-00; Toyota 28100-02040, 28100-02080, 28100-02080-84, 28100-0D030, 28100-0E010, 28100-16180, 28100-16180-84, 28100-16230, 28100-22040, 28100-22041, 281000-0D130; Valeo 458576
