Specifications
SPECS:12 Volt

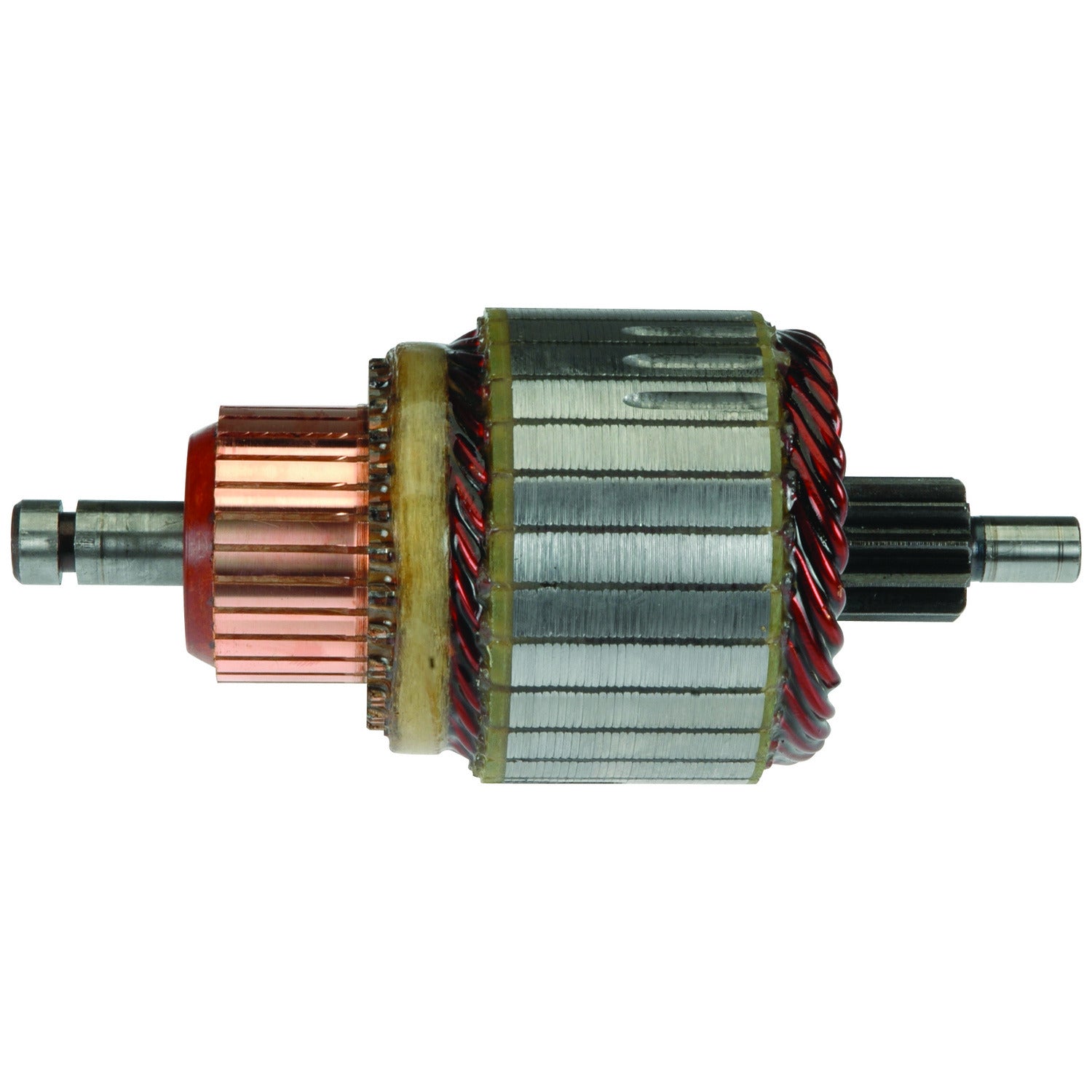

SPECS FOR:Bosch 107 Series PMGR Starters
Dim 1:123mm OAL
Dim 2:11-Splines
Dim 3:7.89mm Shaft OD, Front Bushing
Dim 4:9.93mm Shaft OD, Rear Bushing
FEATURE 1:100% New
FEATURE 2:Precision machined shaft with ground bearing surfaces
FEATURE 3:Heat treated splines & bearing surfaces
FEATURE 4:Commutator with thick copper segments & stake welded hairpins
FEATURE 5:Banded hairpins at commutator
FEATURE 6:100% tested for balance, grounds & shorts
LESTER NUMBERS
17222, 17223, 17415, 17416, 17751, 18473, 18948, 19667, 19669, 30174, 30178, 30410, 30571, 30749, 30757, 30790, 30892, 31167, 31173, 32547, 32582, 32676, 32747, 33000, 33033, 33071, 33083, 33148, 33302, 33322
Replaces
Alfa Romeo 9947836, 9950838, Audi, Volkswagen 053911311, 142529, 547911311A, Bosch 1 004 011 039, 1 004 011 042, 1 004 011 062, 1 004 011 068, 1 004 011 086, Fiat 7078087, 9945962, 9947836, 9950686, 9950838, Ford 5479-11311-A, GM 93227141, Lancia 7078087, 9945962, 9947836, 9950686, 9950838, PSA Peugeot Citroen 5821E4, Renault 7701042467
UNIT NUMBERS
Alfa Romeo 46406973, 46468696, 605629740, 60813461; Audi, Volkswagen 001-911-023, 001-911-023-B, 001-911-023-C, 001-911-023-CX, 001-911-023-X, 001-911-023B, 001-911-023C, 001-911-023CX, 001-911-023X, 020-911-023, 020-911-023-A, 020-911-023-J, 020-911-023-N, 020-911-023-NX, 020-911-023A, 020-911-023J, 020-911-023N, 020-911-023NX, 02A-911-023-E, 02A-911-023-EX, 02A-911-023-F, 02A-911-023-FA, 02A-911-023-T, 02A-911-023-TX, 02A-911-023E, 02A-911-023EX, 02A-911-023F, 02A-911-023FA, 02A-911-023T, 02A-911-023TX, 02B-911-023-B, 02B-911-023-BX, 02B-911-023B, 02B-911-023BX, 036 911 023 S, 036 911 023 SX, 036-911-023-S, 036-911-023-SX, 053-911-023, 053-911-023-A, 053-911-023-AX, 053-911-023-B, 053-911-023A, 053-911-023AX, 053-911-023B, 058-911-023-B, 058-911-023-BX, 058-911-023B, 058-911-023BX, 06B-911-023, 06B-911-023-X, 06B-911-023X, 085-911-023-H, 085-911-023-HX, 085-911-023H, 085-911-023HX; Bosch 0 001 107 003, 0 001 107 004, 0 001 107 005, 0 001 107 006, 0 001 107 007, 0 001 107 008, 0 001 107 009, 0 001 107 012, 0 001 107 013, 0 001 107 014, 0 001 107 016, 0 001 107 017, 0 001 107 018, 0 001 107 019, 0 001 107 020, 0 001 107 021, 0 001 107 022, 0 001 107 023, 0 001 107 024, 0 001 107 025, 0 001 107 026, 0 001 107 027, 0 001 107 028, 0 001 107 029, 0 001 107 033, 0 001 107 034, 0 001 107 040, 0 001 107 041, 0 001 107 043, 0 001 107 044, 0 001 107 045, 0 001 107 046, 0 001 107 047, 0 001 107 052, 0 001 107 053, 0 001 107 054, 0 001 107 055, 0 001 107 058, 0 001 107 060, 0 001 107 061, 0 001 107 062, 0 001 107 063, 0 001 107 066, 0 001 107 067, 0 001 107 068, 0 001 107 069, 0 001 107 073, 0 001 107 074, 0 001 107 076, 0 001 107 078, 0 001 107 083, 0 001 107 084, 0 001 107 085, 0 001 107 087, 0 001 107 090, 0 001 107 091, 0 001 107 094, 0 001 107 095, 0 001 107 097, 0 001 107 102, 0 001 107 103, 0 001 107 104, 0 001 107 105, 0 001 107 106, 0 001 107 109, 0 001 107 110, 0 001 121 001, 0 001 121 002, 0 001 121 030, 0 001 121 031, 0 001 121 032, 0 001 121 033, 0 001 121 034, 0 001 121 035, 9 000 694 007, 9 000 694 022, 9 000 694 047, 9 000 694 051, 9 000 694 052, 9 000 694 053, F 004 A94 009, F 004 A94 010; DAF 1516723R, 1516773R; Fiat 46468696, 46748349, 46748350, 46821681, 51776205, 51832956, 55193407, 60562974, 60875800, 961323028, 9615519880, 9624291380; Ford 1BYU-11000-AA, 6816678, 91AB-11000-LB, 92AB-11000-GA, 92AB-11000-GB, 92AB-11000-JA, 92BB-11000-AA, 93BB-11000-CA, 93BB-11000-CB, 95GB-11000-FA, 95VW-11000-AA, 95VW-11000-AB, 96FB-11000-KB, 96FB-11000-KC, 96FB-11000-KD, YS4U-11000-AA; Ford Engineering 1BYU-AA, 91AB-LB, 92AB-GA, 92AB-GB, 92AB-JA, 92BB-AA, 93BB-CA, 93BB-CB, 95GB-FA, 95VW-AB, 96FB-KB, 96FB-KC, 96FB-KD; JCB 02-630500, 714-36700; KHD 12851306; Lancia 46468696, 60562974, 961323028; Letrika (Iskra) 11.131.928; Letrika (Iskra) Tech. AZD2109, AZD2127, AZD3514, AZD3519, AZD3520, AZD3522, AZE1235, AZE2113, AZE2185, AZE2188, AZE2204, AZE2534, AZE2535, AZE2538, AZE2543, AZE2558, AZE2563, AZE2617, AZE2640, AZE2642, AZE2649; Letrika Old IS 1170, IS 9327, IS 9328; Lombardini 563R 078 0, 563R0540, 5840 194 0, 5840 199 0, 5840 209, 5840 209 0, 5840142, 58401760, 5840246; Magneton 9-141-39-1, 9-141-390, 9-141-394, 9-141-410, 9-141-411, 9-141-413; Marelli 063227004010, 063521070460, 063521070470, 063521070620, 063521070630, 063521070730, 063521070910, 063521210310, 943221332010, 943251417010, 943253155010, 944280103400, 944280125900, 944280126000, 944280161100, 944280162900, 944280163000, 944280163300, 944280163500, 944280167500, 944280167900, 944280168000, 944280170600, 944280179400, 944280182300, 944280188700, 944280188800, 944280800470; Opel 1202138, 1202144, 90-449-689, 90-451-825, 90-487-345, 90-512-189, 90-518-627, 90458462, 90512188, 90518628; Perkins Engine 185086321, 18508661, 185086610; PSA Peugeot Citroen 5802 E4, 5802E4, 96-035-034, 96-102-058, 96-147-592, 96-155-198, 96035034, 96102058, 96147592, 96155198; Renault 7700105080, 7700865719; Ruggerini 563-49, 5840-203; Seat 036-911-023S; Valeo 455728, 458467, 458476; Volvo
