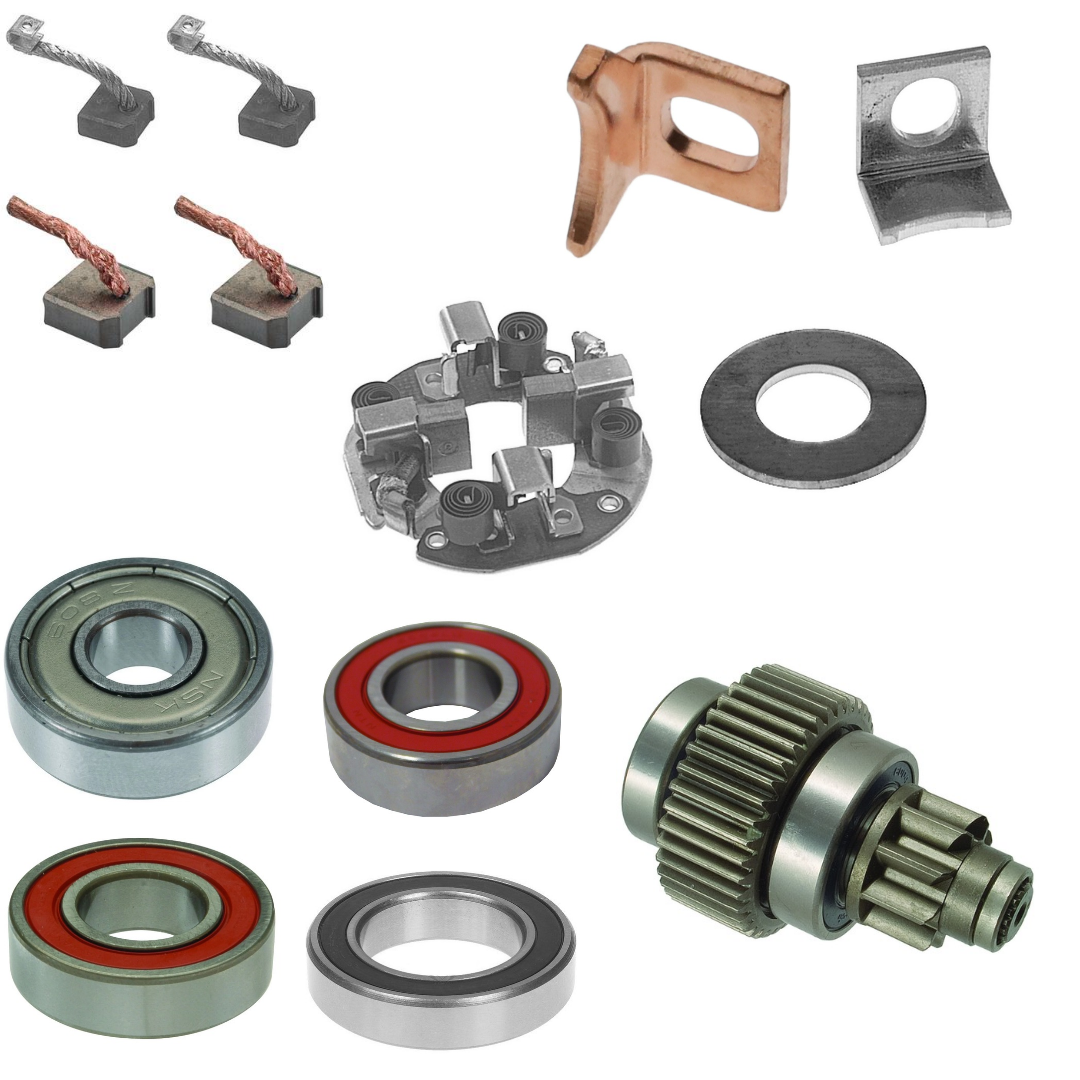

Included in Rebuild Kit:
Bearing 1: W02X-23-1 6-102-4
Bearing 2: W02X-35-1 6-608-2
Bearing 3: W02X-74-1 6-904-4
Bearing 4: W02X-81-1 6-104-4
Brushes 1: W415-32 68-8211
Brushes 2: W415-33 68-8210
Brush Holder Assembly: 69-8201
Solenoid Contact Short: W485-11S 66-82756
Solenoid Contact Left: W485-45 66-82759
Contact Striker Disc: W485-103 66-82651
Starter Drive: W475-127 54-8235
Not Included in Rebuild Kit:
Brushes 3: W415-40 68-8201
Solenoid Coil: W455-57 66-82458
Starter Drive: W475-05 54-82201
Drive Clutch: W475-144 54-82401
Terminal Boot: W485-03 71-82301
Terminal Block: W485-125 76-82571
Roller Carriage: W485-133 76-82810
Brush Spring: W485-136 69-82701
Insulator: W485-144 72-82415
Insulator External: W485-47
Plunger Repair Cap: W485-149 66-82765
Starter O-Ring: W485-159 71-82510
Battery Terminal Insulator: W485-22 72-82409
Solenoid Plunger: W485-63 66-82603-1
Solenoid Insulator: W485-83
Product Specifications
-
Part Type: Starter Rebuild Kit
-
Manufacturer: Made for Denso
-
Voltage: 12V
-
Rotation: CW
-
Teeth: 9
-
Power: 1.4 kW
-
Design: OSGR
Compatible Lester Numbers
17671, 17697
Replaces
Denso 228000-3750, 228000-3961, 228000-5300; Toyota 28100-07010, 28100-07010-84, 28100-0W070, 28100-62050, 28100-62050-84
| Make | Model | Year | Engine |
| Toyota - Europe | Land Cruiser | 1996-2000 | 3400, 24V, 5VZ-FE |
| Toyota | 4Runner | 1996-2001 | V6 3.4L 3378cc |
| Toyota | T100 | 1995-1998 | V6 3.4L 3378cc |
| Toyota | Tacoma | 1995-2004 | V6 3.4L 3378cc |
| Toyota | Tundra | 2000-2004 | V6 3.4L 3378cc |
