Specifications
- MFR:DENSO
- FEATURE 1:100% New
- FEATURE 2:Standard Lamp - No Output
- FEATURE 3:Field, Lamp Short Circuit Protection
- FEATURE 4:Full range LRC
- FEATURE 5:RLO voltage control
- FEATURE 6:Temperature Coefficient

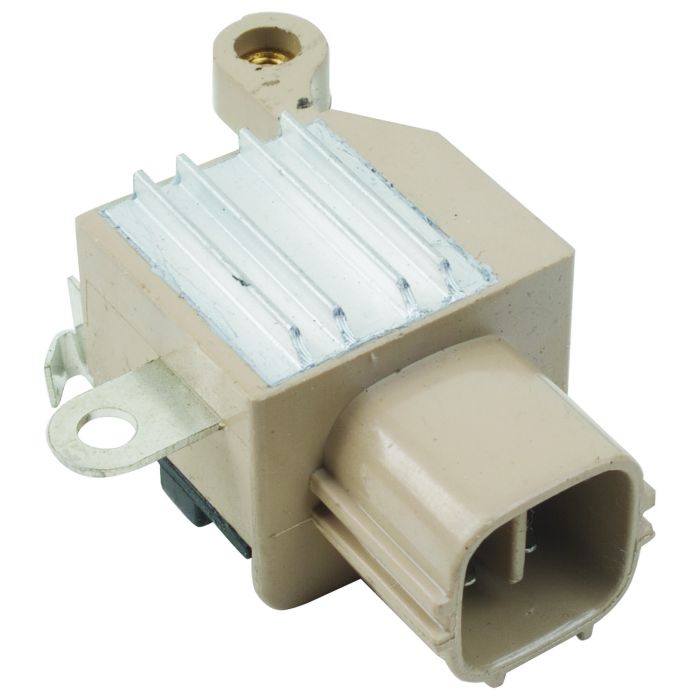

- SPECS FOR:Denso IR/IF Alternators
- SPECS:12 Volt, B-Circuit, High Side Drive Regulator, 14.10 Vset
USED ON
- Toyota (2006-2008)
Replaces
- Denso 126600-3020, 126600-3220, 126600-3320, 126600-3800, 3020, 3220, Original Reference Number 1123-046RS, GC1M3320, GC2M3020, GC2M3220
LESTER NUMBERS
- 11201, 11322, 11323, 11328, 20226, 20359, 20490, 20494, 20538, 20714, 21418, 24104, 24105, 24114
UNIT NUMBERS
- Denso 104210-2080, 104210-2090, 104210-2091, 104210-2092, 104210-2180, 104210-2181, 104210-2182, 104210-2183, 104210-2300, 104210-2310, 104210-2320, 104210-2520, 104210-4590, 104210-4591, 104210-4592, 104210-4670, 104210-4740, 104210-4750, 104210-4760, 104210-4770, 104210-4771, 104210-4771, 104210-4790, 104210-4791, 104210-4792, 104210-4793, 104210-4794, 104210-4795, 104210-6130, 104210-6131, 104210-8350, 104210-8351, 104210-9240, 104210-9250, 104210-9290, 9664219-208, DAN1018, DAN1025, TG104210-9240; Lexus 27060-38040, 27060-38041, 27060-38070; Marelli 063377534010; Toyota 27060-0G021, 27060-0N040, 27060-0N050, 27060-0Q060, 27060-0T050, 27060-0T051, 27060-0Y010, 27060-0Y020, 27060-0Y030, 27060-0Y040, 27060-0Y041, 27060-26030, 27060-28300, 27060-28301, 27060-28301-84, 27060-2830184, 27060-28330, 27060-31050, 27060-31090, 27060-31091, 27060-31091, 27060-31091-84, 27060-31091-84, 27060-31100, 27060-31101, 27060-31102, 27060-33100, 27060-47050
