Specifications

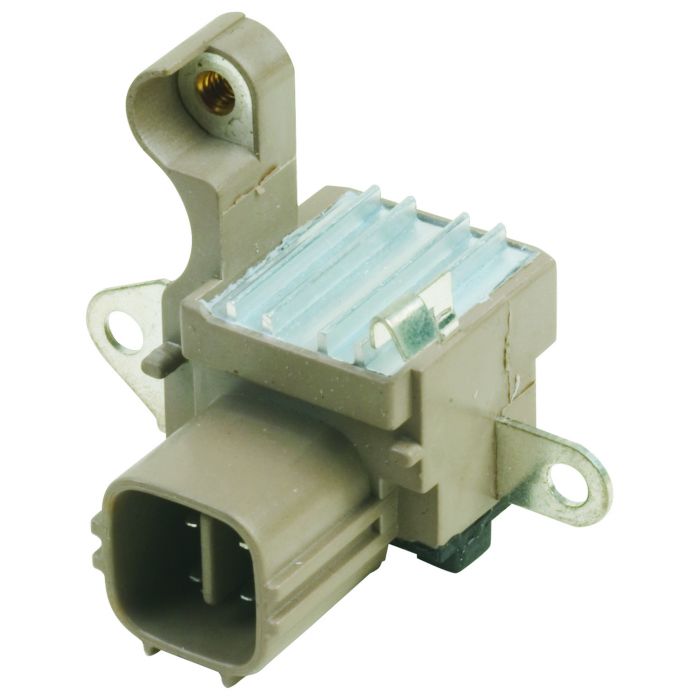

- MFR:DENSO
- FEATURE 1:100% New Transpo
- FEATURE 2:Ignition activated
- FEATURE 3:OE compliant C-function
- FEATURE 4:Short-circuit protection: lamp, field
- NOTE 1:Standard lamp function - no output.
- SPECS FOR:Denso IR/IF Alternators

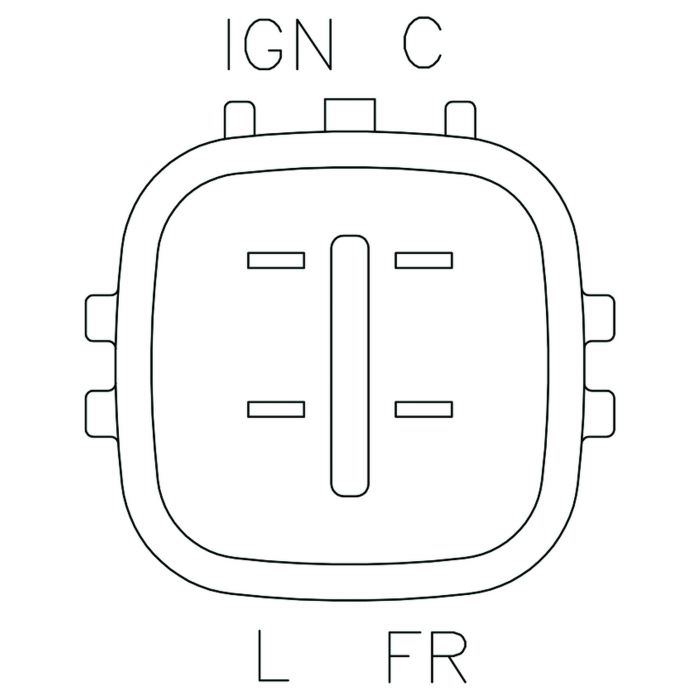

- SPECS:12 Volt, B-Circuit, IG-C-L-FR Terminals, 14.35 Vset
USED ON
- Acura (2003-2009) ** Honda (2004-2008)
Replaces
- Denso 126600-3070, 126600-3150, Original Reference Number 3070, 3150, GA13070, GA13150
LESTER NUMBERS
- 11030, 11099, 11150, 11151, 23971
UNIT NUMBERS
- Acura 31100-RDJ-A01, 31100-RJA-A01, 31100-RJA-A02, CSC10, CSD69; Denso 104210-3100, 104210-3500, 104210-3911, 104210-4300, 104210-4301, 104210-4480, 104210-4481, 104210-4690, 104210-4860, TN104210-4690; GM 88861823; Honda 06311-RCB-505RM, 31100-RBD-E01, 31100-RBD-E02, 31100-RCB-505RM, 31100-RCB-Y01, 31100-RCB-Y02, 31100-RGM-A01, 31100-RGM-A01RM, 31100-RJA-A01, 31100-RJA-A02, 31100RSRE01, CSC50, CSC91, CSC914E, CSD30, CSD48, CSD69, CSD86, N22A2
