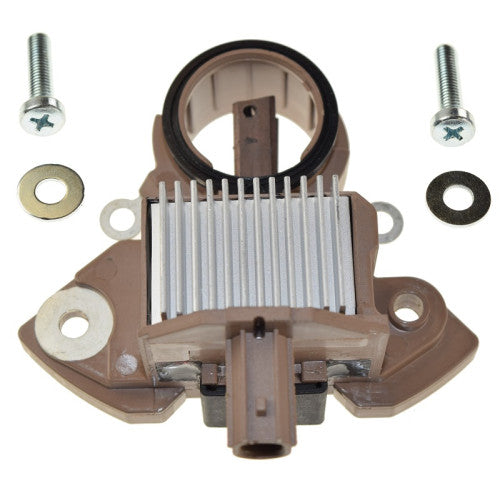

Aftermarket Mitsubishi Voltage Regulator IM624 for Honda Accord 2013-2017 V4 2.4L

Specifications

• MFR: MITSUBISHI
• DIM 1: 23.5mm ID Brush Ring
• FEATURE 1: 100% New

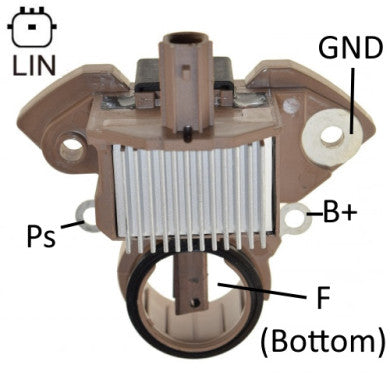

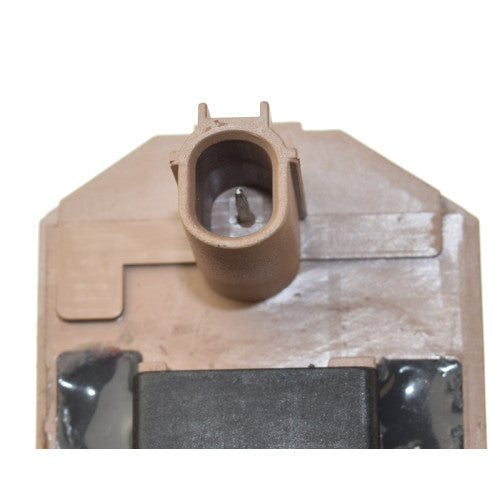

• FEATURE 2: LIN2 (COM) Terminal Function
• FEATURE 3: COM ID Code: 29
• FEATURE 4: Field Rating 5 Amps
• FEATURE 5: Voltage Set point and Regulation Mode is controlled by Vehicle
• FEATURE 6: Short Circuit Protection
• SPECS FOR: Mitsubishi IR/IF Alternators
• SPECS: 12 Volt, A-Circuit, Low Side Drive Regulator, LIN Terminals, 14.5 Vset

Used On

• Honda (2013-2017)

Replaces

Honda: 31150-5A2-A01
Mitsubishi: 700, 7005401D, 70065401

Lester Numbers

14488, 14489

Unit Numbers

Honda: 31100-5A2-A02, 31100-5A2-A02RM, 31100-5A2-AA000M2, 31100-5B0-Y02, 31100-5B0-Y02RM, AHGA87, AHGA88
Mitsubishi: A005TL0581, A005TL0581ZC, A5TL0591ZC

Vehicle Application

Honda Car
Accord L4 2.0L 1993cc 122cid 2014-2015
Accord L4 2.0L 1993cc 122cid 2017
Accord L4 2.4L 2356cc 144cid K24W1 2013-2017

Features & Benefits

• Precision aftermarket replacement part
• Regulates alternator output voltage
• Helps maintain proper battery charging
• Supports stable charging system performance
• Manufactured to match original specifications
• Designed for dependable long-term operation
• Ideal for alternator rebuilding and repair
• Cross-referenced to OEM and aftermarket part numbers

What Does a Voltage Regulator Do?

The voltage regulator controls the alternator's output by regulating current supplied to the rotor field winding. As electrical demand changes, the regulator continuously adjusts field current to maintain the proper charging voltage for the battery and the vehicle's electrical system.

A properly functioning voltage regulator helps prevent battery overcharging and undercharging while protecting sensitive electrical components from excessive voltage. Because charging system performance depends on the interaction between the regulator, rotor, stator, rectifier, and battery, replacing a faulty regulator is an important step in restoring alternator performance.

Common Signs Replacement Is Needed

Replace the voltage regulator if you notice:

• Battery overcharging
• Battery not charging
• Low charging voltage
• High charging voltage
• Battery warning light illuminated
• Intermittent charging problems
• Headlights that brighten or dim with engine speed
• Charging system failure during testing
• Voltage regulator failure discovered during alternator rebuilding

Installation Recommendations

Installation should be performed by a qualified technician or experienced alternator rebuilder. Before installing the new regulator, inspect the brushes, brush holder, slip rings, rotor, stator, rectifier, wiring, and electrical connections for signs of wear or damage.

Always verify connector configuration and mounting style before installation. After assembly, bench-test the alternator to confirm proper charging voltage and overall charging system performance.

While You're Rebuilding

Inspect other common wear components to help maximize charging system reliability:

• Bearings
• Brushes
• Brush Holder
• Slip Rings
• Rectifier
• Diodes
• Rotor
• Clutch Pulley
• Insulators

Why Buy From RC Auto Electric?

RC Auto Electric specializes in alternator and starter rebuilding components for professional rebuilders, repair shops, automotive technicians, and DIY enthusiasts. Our extensive catalog includes thousands of OEM and aftermarket electrical components backed by accurate cross-reference information to help simplify part identification and reduce ordering mistakes.

Disclaimer

Compatibility information is provided as a reference only. Manufacturing revisions, production changes, and previous rebuilding modifications may affect internal alternator components. Always compare the original part, connector configuration, mounting style, voltage specifications, cross-reference numbers, and product photographs before installation. If you are unsure about compatibility, contact RC Auto Electric before ordering.
