Specifications
- DIM 1:21mm Belt x 55mm Rib OD x 17mm Bore, M17 Threads
- DIM 2:4.2mm from hub to center of 1st groove
- DIM A (MM):17
- DIM B (MM):54.92
- DIM C (MM):37.38
- DIM D (MM):8.44
- GROOVES:6
- SPECS FOR:Mitsubishi 200A IR/IF Alternators

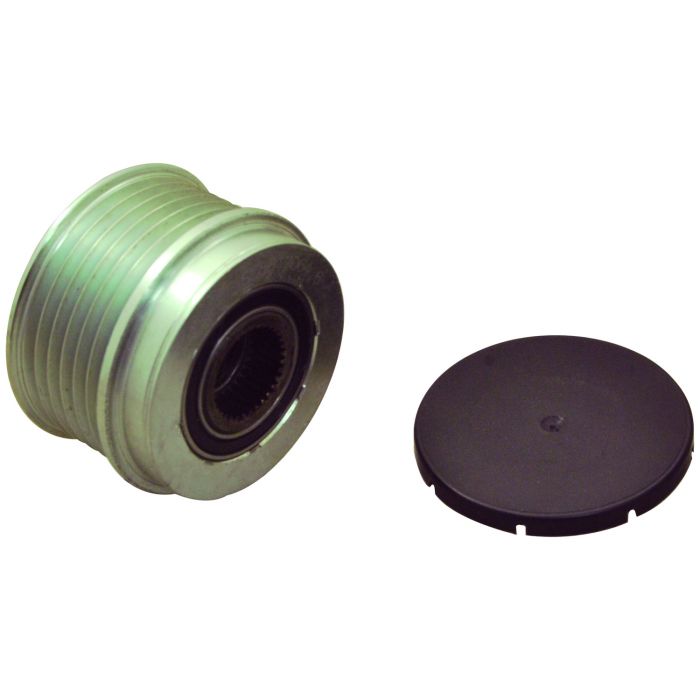

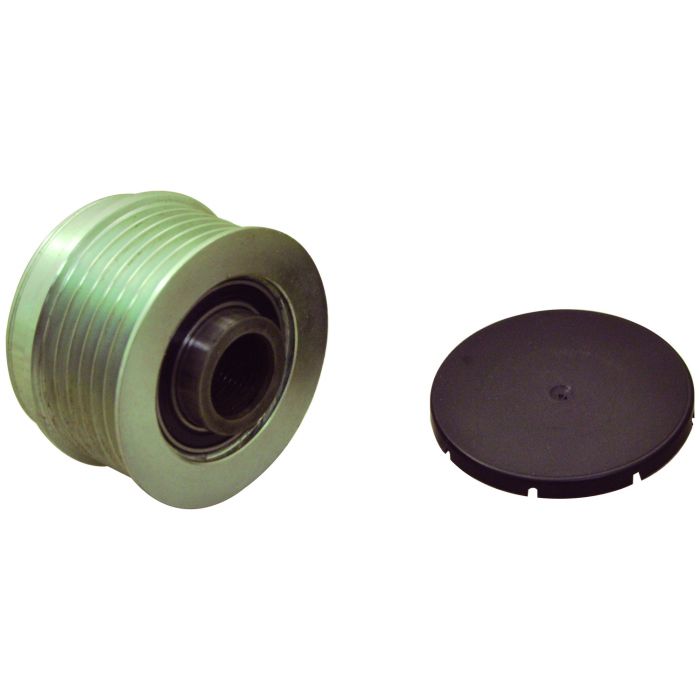

- SPECS:6-Groove Clutch Pulley
- TYPE:OAP
USED ON
- Ford (2004-2011) ** Mitsubishi (2008-2010)
Replaces
- INA Bearing Co 535 0145 10, F-552562, Mitsubishi 519-40511, 619-31122, Original Reference Number 519 30327, 519 30819, 519 30829, 519 31122, 519 40116, 519 40603, 519 50115, 519 50119, Valeo 588087
LESTER NUMBERS
- 11026, 11377, 11543, 11552
UNIT NUMBERS
- Citroen 5705KA; Ford 4W73-10300-AC, 4W7Z-10346-AC, 4W7Z-10346-AD, 6W7T-10300-AB, 6W7Z-10346-AA, 6W7Z-10346-AA, 7W7T-10300-AA, FW73-10346-AC; Ford Engineering 4W73-AC, 6W7T-AB; GM 92421122; Mitsubishi A002TX3981, A003TG3181, A003TG3181MI, A004TJ0181, A004TJ0181, A004TJ0181ZC, A004TJ0182, A004TJ0182ZC, A004TJ0182ZCKD, A004TJ0182ZCKD, A004TJ018NC; Mitsubishi Motors 1800A053; Original Reference Number M1800A053D
