Specifications

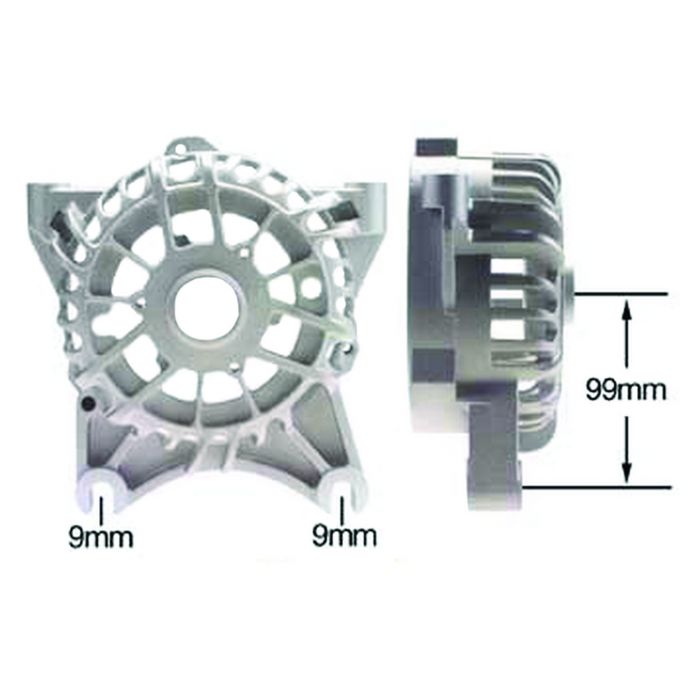

- DIM 1:Mtg. Foot Hole Size: 9mm
- DIM 2:Mtg. Foot to Bearing Center: 99mm
- DIM 3:Bearing Bore Dia: 47mm
- DIM 4:Stator Bore Dia: 130mm
- NOTE 1:Used w/ 6303 ball bearing
- SPECS FOR:Ford 6G Series 105A Small Frame IR/IF Alternators
USED ON
- Ford (1999-2008) ** Lincoln (2002-2010)
LESTER NUMBERS
- 8252, 8305, 8310, 8311, 8318, 8443
UNIT NUMBERS
- Ford 2C3Z-10V346-ABRM, 2C6U-10300-BA, 2C6Z-10346-BA, 2C6Z-10346-BARM, 2C6Z-10V346-BBRM, 2L7U-10300-AA, 2L7U-10300-BA, 2L7U-10300-BB, 2L7Z-10346-AA, 2L7Z-10346-BA, 2L7Z-10346-BARM, 2L7Z-10346-BB, 2L7Z-10V346-BBRM, 3C3T-10300-DA, 3C3Z-10346-DA, 3C3Z-10346-DARM, 3C3Z-10V346-DBRM, 4L3U-10300-BA, 4L3U-10300-BB, 4L3Z-10346-BA, 4L3Z-10346-BB, 4L3Z-10V346-BBRM, 4U2Z-10V346-AFRM, 4U2Z-10V346-CCRM, 4U2Z-10V346-CDRM, 4U2Z-10V346-CURM, 5L7T-10300-CB, 5L7Z-10346-CA, 6L3Z-10346-AA, 6L7T-10300-AA, 6L7Z-10346-A, 6L7Z-10346-AARM, 6L7Z-10346-AARM, 6L7Z-10346-CRM, 6L7Z-10346-CRM, 6L7Z-10V346-AARM, 6U2Z-10V346-ACRM, 7L3T-10300-AA, 7L3Z-10346-A, 7L3Z-10346-AARM, 7L3Z-10346-CRM, GL974RM, XR3U-10300-AA, XR3U-10300-AB, XR3U-10300-AC, XR3Z-10346-AA, XR3Z-10346-AARM, XR3Z-10V346-ABRM; Ford Engineering 2C6U-BA, 2L7U-AA, 2L7U-BA, 2L7U-BB, 3C3T-DA, 4L3U-BA, 5L7T-CB, 6L7T-AA, 7L3T-AA, RM4U2J-10D309-ASC, RM6L7T-10300-AD, RM6U2J-10D309-DC, RM7L3T-10300-AD, XR3U-AA, XR3U-AB, XR3U-AC; Original Reference Number 4L3U-BB; Penntex PX-220R-5; Visteon CY, FH, FJ, FP, FT, HD, HW, KN
