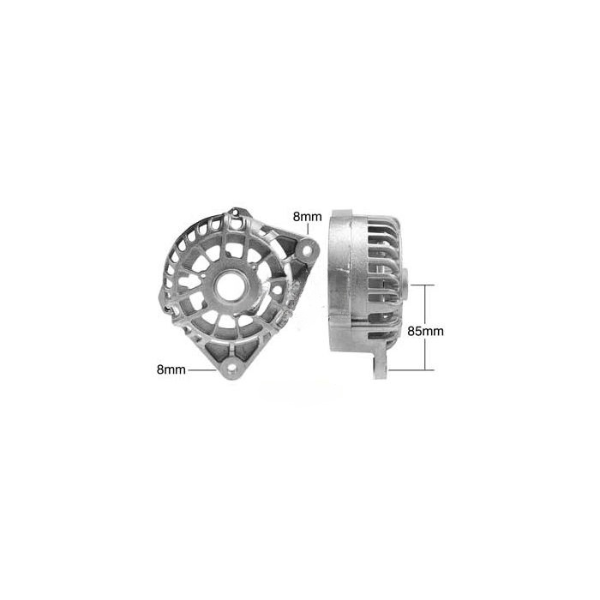

Specifications
- DIM 1:Mtg. Ear Hole Size: 8mm
- DIM 2:Mtg. Ear Thickness: 14mm
- DIM 3:Mtg. Foot Hole Size: 8mm
- DIM 4:Mtg. Foot to Bearing Center: 85mm
- DIM 5:Bearing Bore Dia: 47mm
- DIM 6:Stator Bore Dia: 130mm
- NOTE 1:Used w/ 6303 ball bearing
- SPECS FOR:Ford 6G Series 105-110A Small Frame IR/IF Alternators
USED ON
- Ford (1998-2009) ** Ford - Europe (2001-2004) ** Mazda (2001-2009) ** Mazda - Europe (2001-2005) ** Mercury (1998-2002)
Replaces
- Ford F8RU-10A351-AA, Visteon ALT-C-132
LESTER NUMBERS
- 23555, 8250, 8260, 8264, 8265, 8309, 8418, 8518
UNIT NUMBERS
- Ford 1L5U-10300-AC, 1L5U-10300-AD, 1L5U-10300-AE, 1L5Z-10346-AA, 1L5Z-10346-AARM, 1L5Z-10V346-AARM, 1L5Z-10V346-ABRM, 1L8U-10300-AB, 1L8U-10300-AC, 1L8U-10300-BB, 1L8U-10300-BC, 1L8Z-10346-AB, 1L8Z-10346-ABRM, 1L8Z-10346-BA, 1L8Z-10V346-ABRM, 1L8Z-10V346-ACRM, 1L8Z-10V346-BBRM, 1S41-10300-AA, 2M5V-10300-AA, 2M5Z-10346-AB, 2M5Z-10346-ABRM, 2M5Z-10V346-ACRM, 2M5Z-10V346-ADRM, 4U2Z-10V346-ACRM, 4U2Z-10V346-CWRM, 4U2Z-10V346-CWRM, 6L5T-10300-AA, 6L5Z-10346-AA, 6L5Z-10346-AARM, 6L5Z-10346-ABRM, 6L5Z-10346-ABRM, 98AB-10300-EB, 98AZ-10346-EA, 98AZ-10346-EARM, 98AZ-10V346-EARM, 98AZ-10V346-EBRM, 98AZ-10V346-ECRM, 98BB-10300-CC, F8RZ-10346-CC, F8RZ-10346-CCRM, XS8Z-10346-BB, XS8Z-10346-BBRM, XS8Z-10V346-BCRM, XS91-10300-BB, XS91-10300-BC; Ford Engineering 1L5U-AC, 1L5U-AD, 1L5U-AE, 1L8U-AB, 1L8U-AC, 1L8U-BB, 1L8U-BC, 1S41-AA, 2M5V-AA, 98AB-EB, 98BB-CC, RM4U2J-10D309-ABC, RM4U2J-10D309-AEC, RM4U2J-10D309-AMC, XS91-BB, XS91-BC; Mazda 1F70-18-300, 1F70-18-300A, 1F70-18-300R00, YF09-18-300, YF09-18-300A, YF20-18-300A, YF20-18-300R0D; Visteon CL, CM, CR, DH, DJ, DN, DN, DS
