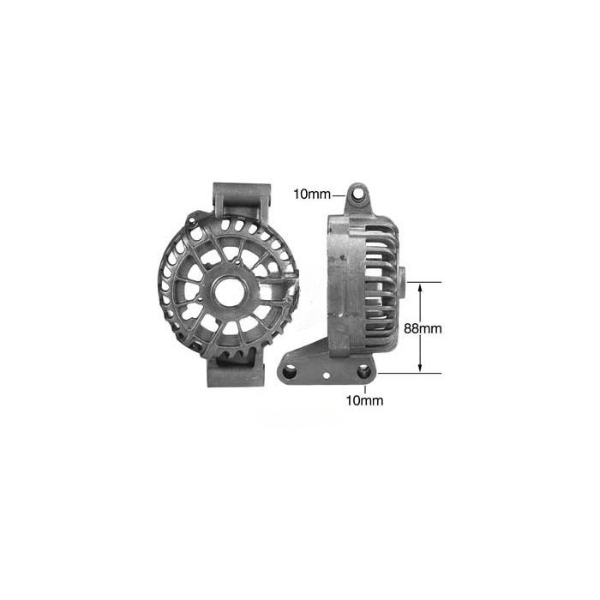

Click to zoom in
Specifications
- DIM 1:Mtg. Ear Hole Size: 10mm
- DIM 2:Mtg. Ear Thickness: 55mm
- DIM 3:Mtg. Foot Hole Size: 10mm
- DIM 4:Mtg. Foot to Bearing Center: 88mm
- DIM 5:Bearing Bore Dia: 47mm
- DIM 6:Stator Bore Dia: 130mm
- NOTE 1:Used w/ 6303 ball bearing
- SPECS FOR:Ford 6G Series 105A Small Frame IR/IF Alternators
USED ON
- Ford (1999-2008) ** Ford - Europe (2001-2003) ** Mazda (2001-2004) ** Mazda - Europe (2001-2005) ** Mercury (2001-2002)
Replaces
- Ford F8CU-10A351-AA, Visteon ALT-C-133
LESTER NUMBERS
- 7796, 7798, 7799, 8254, 8259, 8261, 8306, 8316, 8317, 8406, 8447, 8476, 8479
UNIT NUMBERS
- Ford 1127506, 1L8U-10300-CD, 1L8U-10300-CE, 1L8U-10300-DD, 1L8U-10300-DE, 1L8Z-10346-CB, 1L8Z-10346-CBRM, 1L8Z-10346-DA, 1L8Z-10V346-CCRM, 1S41-10300-BB, 2C3U-10300-BB, 2C3U-10300-BC, 2C3U-10300-CB, 2C3U-10300-CC, 2C3Z-10346-BA, 2C3Z-10346-BARM, 2C3Z-10346-BB, 2C3Z-10346-CA, 2C3Z-10346-CARM, 2C3Z-10346-CB, 2C3Z-10V346-BBRM, 2C3Z-10V346-CBRM, 2C3Z-10V346-CCRM, 2C3Z10V346CBRM, 3C3T-10300-AA, 3C3T-10300-AC, 3C3T-10300-EA, 3C3Z-10346-AA, 3C3Z-10346-AARM, 3C3Z-10346-EA, 3C3Z-10346-EARM, 4C3T-10300-AA, 4C3Z-10346-AA, 4C3Z-10V346-ABRM, 4S4T-10300-AC, 4S4Z-10346-AB, 4U2Z-10V346-AARM, 4U2Z-10V346-AARM, 4U2Z-10V346-ANRM, 4U2Z-10V346-CARM, 4U2Z-10V346-CFRM, 4U2Z-10V346-CHRM, 4U2Z-10V346-CKRM, 4U2Z-10V346-CLRM, 5C3T-10300-DA, 5C3T-10300-DB, 5C3Z-10346-DA, 5L3T-10300-BA, 5L3T-10300-BB, 5L3T-10300-BC, 5L3T-10300-CA, 5L3Z-10346-BA, 5L3Z-10346-BC, 5S4T-10300-AB, 5S4T-10300-AC, 5S4Z-10346-A, 6C2Z-10V346-CBRM, 6C3T-10300-DA, 6C3Z-10346-DA, 6C3Z-10346-DBRM, 6C3Z-10V346-DBRM, 6L3T-10300-BA, 6L3Z-10346-BA, 6L3Z-10V346-BBRM, 6L8Z-10346-DA, 6S4T-10300-AD, 6S4Z-10346-AA, 6S4Z-10V346-ABRM, 6S4Z-10V346-BBRM, 6S4Z-10V346-BCRM, 6U2Z-10V346-BBRM, 6U2Z-10V346-CARM, 7L3Z-10300-BA, 7L3Z-10346-B, 7L3Z-10346-BARM, 7L3Z-10346-BRM, 7L3Z-10346-CARM, 7S4T-10300-AA, 7S4Z-10346-A, 7S4Z-10346-AARM, 98AB-10300-FC, 98AZ-10346-FA, 98AZ-10346-FARM, 98AZ-10V346-FBRM, 98AZ-10V346-FBRM, F81U-10300-CC, F81U-10300-CD, F81U-10300-CE, F81U-10300-EB, F81U-10300-FA, F81U-10300-FB, F81U-10300-FC, F81U-10300-GA, F81Z-10346-CA, F81Z-10346-CARM, F81Z-10346-EA, F81Z-10346-EARM, F81Z-10346-GA, F81Z-10346-GARM, F81Z-10V346-CBRM, F81Z-10V346-EBRM, F81Z-10V346-GARM, F81Z-10V346-GBRM, XS71-10300-FB, XS71-10300-FE, XS8Z-10346-AA, XS8Z-10346-AARM, XS8Z-10346-FB, XS8Z-10346-FBRM, XS8Z-10V346-ABRM, XS8Z-10V346-ADRM, XS91-10300-AE; Ford Engineering 1L8U-CD, 1L8U-CE, 1L8U-DD, 1L8U-DE, 1S41-BB, 2C3U-BB, 2C3U-BC, 2C3U-CB, 2C3U-CC, 3C3T-AA, 3C3T-AC, 3C3T-EA, 4C3T-AA, 4S4T-AC, 5C3T-DA, 5C3T-DB, 5L3T-BA, 5L3T-BB, 5L3T-BC, 5S4T-AB, 5S4T-AC, 6C3T-DA, 6L3T-BA, 6S4T-AD, 7L3Z-BA, 7S4T-AA, 98AB-FC, F81U-CC, F81U-CD, F81U-CE, F81U-EB, F81U-FA, F81U-FB, F81U-FC, F81U-GA, RM4U2J-10D309-AFC, RM6U2J-10D309-EC, RM6U2J-10D309-FC, RM6U2J-10D309-JC, RM7L3T-10300-BD, XS71-FB, XS71-FE, XS91-AE; Mazda AJ03-18-300A, AJ03-18-300A, AJ03-18-300B, AJ11-18-300B; Original Reference Number 5LST-BA, 7L3T-BA; Visteon CA, CC, CJ, CK, CN, CQ, DE, DK, DL, DT, FD, FE, FZ, HB, HF, HH, HQ, HQ, KA, KD
