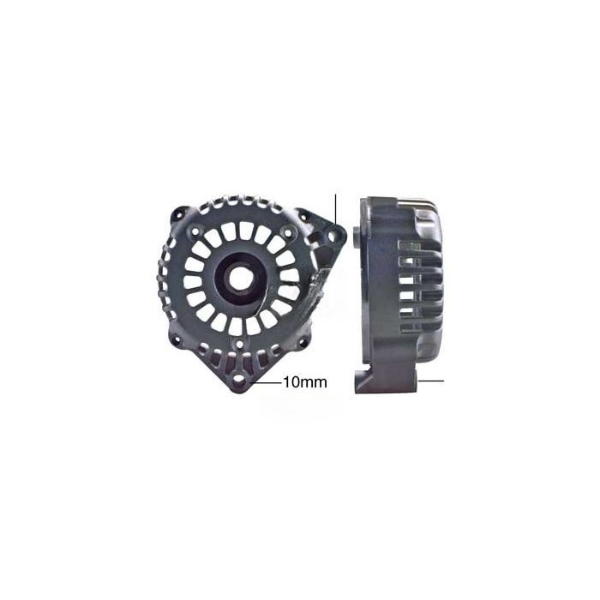

Aftermarket Alternator Frame  21-176-1
Click to zoom in

Aftermarket Alternator Frame 21-176-1

Delco
21-176-1
In stock
Frame
$55.00
$55.00

Aftermarket Alternator Frame 21-176-1

Specifications

  • DIM 1:Mtg. Ear Hole Size: 10mm
  • DIM 2:Mtg. Ear Thickness: 51mm
  • DIM 3:Mtg. Foot Hole Size: 10mm
  • DIM 4:Mtg. Foot to Bearing Center: 82mm
  • DIM 5:Bearing Bore Dia: 47mm
  • DIM 6:Stator Bore Dia: 129mm
  • NOTE 1:Includes 6-303-4 ball bearing
  • SPECS FOR:Delco AD230 Series IR/IF Alternators
  • SPECS:w/ Bearing

USED ON

  • Cadillac (2002-2004) ** Chevrolet (1999-2006) ** GMC (1999-2006)

Replaces

  • Delco 10494737, 10494738

LESTER NUMBERS

  • 8238, 8247, 8273, 8291, 8490-3, 8490-9, 8491-3

UNIT NUMBERS

  • Delco 10464455, 10464459, 10464478, 10464481, 10464483, 10464484, 10464490, 10464490, 10480229, 10480271, 10480326, 10480388, 10480476, 10480479, 15087020, 15087021, 15087023, 15755616, 15755616W, 15768829, 15769252, 19244728, 19244731; GM 10464438, 10464451, 10464455, 10464481, 19244727, 19244731, 88877296; Original Reference Number 10480229W, 10480326M, 10480326M, 15769252W
