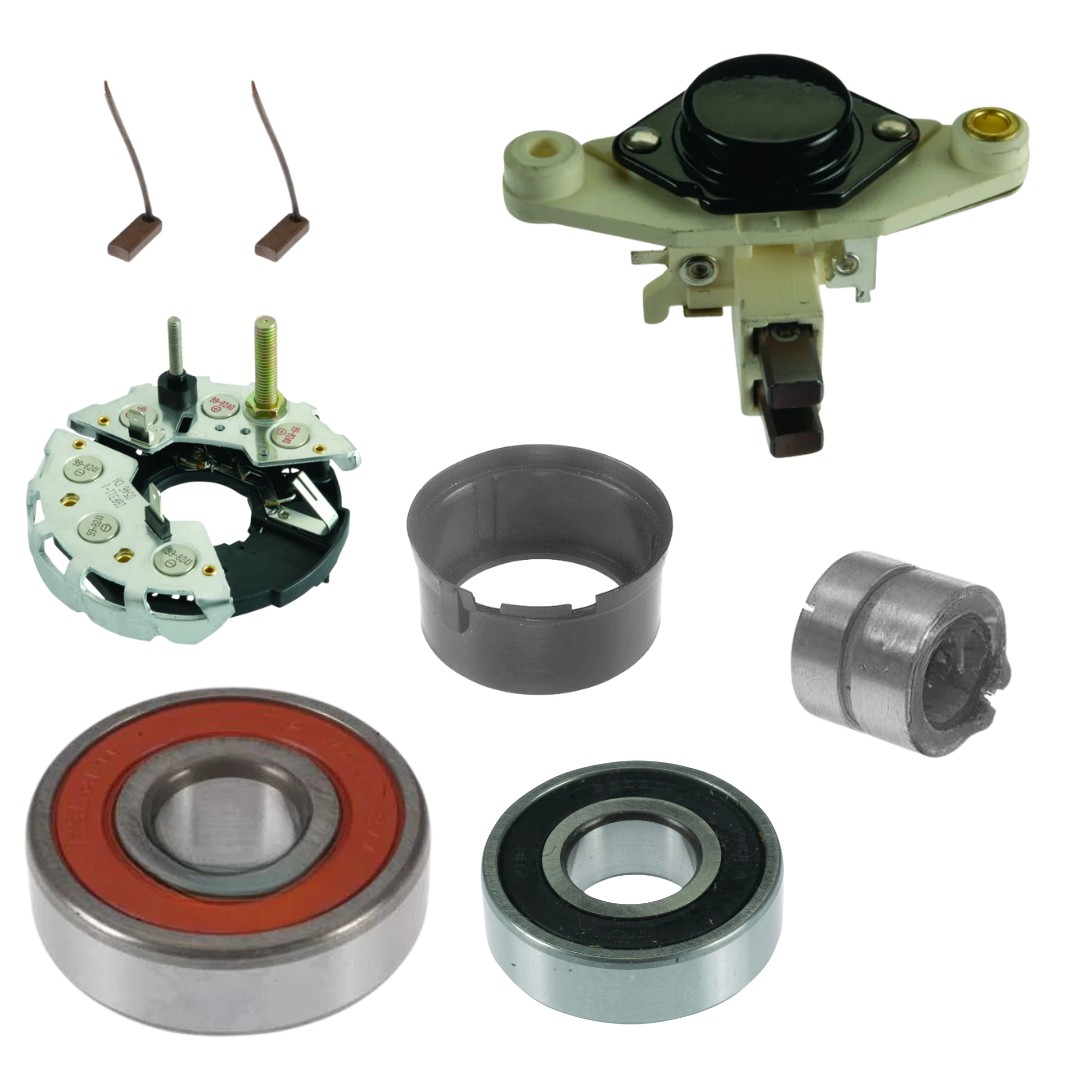

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brushes
Rectifier
Slip Ring
Tolerance Ring
Voltage Regulator
NOT INCLUDED IN REBUILD KIT:
Capacitor
Diodes Positive
Diodes Negative
Insulator
Specifications
- MFR:BOSCH
- AMPERAGE:65
- DESIGN:IR/EF
- FEATURE 1:100% New
- FEATURE 2:Mfd. by Iskra
- NOTE 1:Connection: B+(M8), D+(M5), W(spade connector)
- PLUG CLOCK:11:00 Plug Clock
- PULLEY CLASS:V1
- ROTATION:CW
- SPECS FOR:Bosch IR/EF
- SPECS:65 Amp/12 Volt, CW, 1-Groove Pulley
- VOLTAGE:12
USED ON
- Seat - Europe (1991-1993) ** Volkswagen (1986-1992) ** Volkswagen - Europe (1983-1994) ** Volkswagen LCV - Europe (1984-1992)
Replaces
- Audi, Volkswagen 031-903-023, 031-903-023-D, 031-903-023D, 036-903-017-K, 036-903-017-KX, 036-903-017HX, 036-903-017JX, 036-903-017K, 036-903-017KX, 036-903-017L, 036-903-017LX, 036-903-023, 036-903-023SX, 036-903-025-A, 036-903-025-L, 036-903-025-M, 036-903-025-S, 036-903-025A, 036-903-025L, 036-903-025M, 036-903-025S, 036-903-027-A, 036-903-027-D, 036-903-027-E, 036-903-027A, 036-903-027D, 036-903-027E, 036903017HX, 036903017KX, 036903023B, 036903025QX, 036903025T, 036903027B, 036903027C, 036903027G, 068-903-017-R, 068-903-017-T, 068-903-017-TX, 068-903-017R, 068-903-017T, 068-903-017TX, 068-903-021-H, 068-903-021H, 068-903-029-T, 068-903-029T, 068-903-031, 068-903-031-A, 068-903-031-B, 068-903-031-E, 068-903-031-F, 068-903-031-G, 068-903-031-H, 068-903-031-HX, 068-903-031A, 068-903-031B, 068-903-031E, 068-903-031F, 068-903-031G, 068-903-031H, 068-903-031HX, 068903017TX, 074-903-023, 74903023, Bosch 0 120 488 196, 0 120 488 197, 0 120 488 198, 0 120 488 199, 0 120 488 226, 0 120 488 227, 0 120 488 237, 0 120 488 238, 0 120 488 239, 0 120 488 240, 0 120 489 372, 0 120 489 373, 0 120 489 374, 0 120 489 375, 0 120 489 376, 0 120 489 377, 0 120 489 378, 0 120 489 379, 0 120 489 380, 0 120 489 381, 0 120 489 382, 0 120 489 383, 0 120 489 442, 0 120 489 449, 0 120 489 497, Fiat 46431710, Letrika (Iskra) 11.201.257, 11.201.611, Letrika (Iskra) Tech. AAK1140, AAK1150, AAK3510, AAK4106, Marelli 063321023010, 943356674, 943356675010, 943356676, 943356678, 943356678010, 943356679, 943356681, 944390345300, 944390349900, MAR570, MAR572, MAR574, MAR575, MAR577, Paris Rhone A13E10, A13E42, A13E43, Valeo 2523203, 2940309A, 436299, A13E08, A13E09, A13E10, A13E11, A13E42, A13E43, A13E58
LESTER NUMBERS
- 14818, 14995, 21106, 21107, 21108, 21109, 21110, 21112, 21114, 23590
