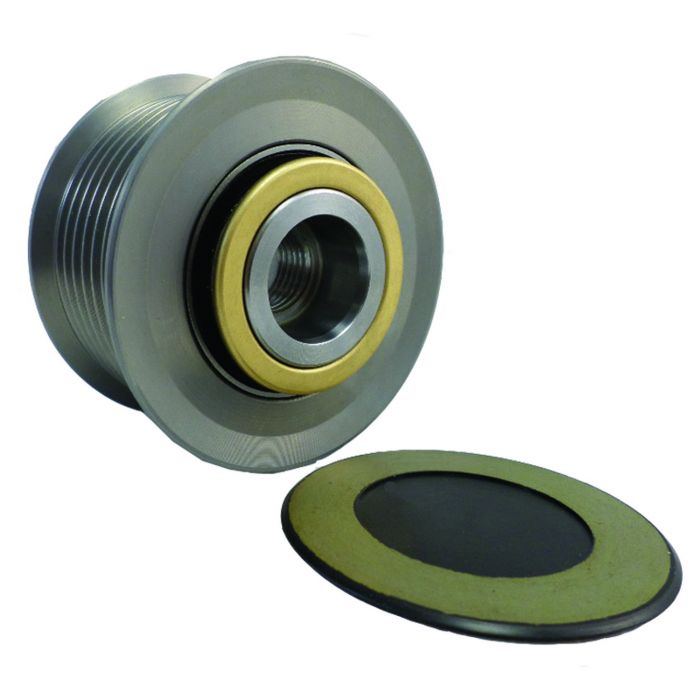

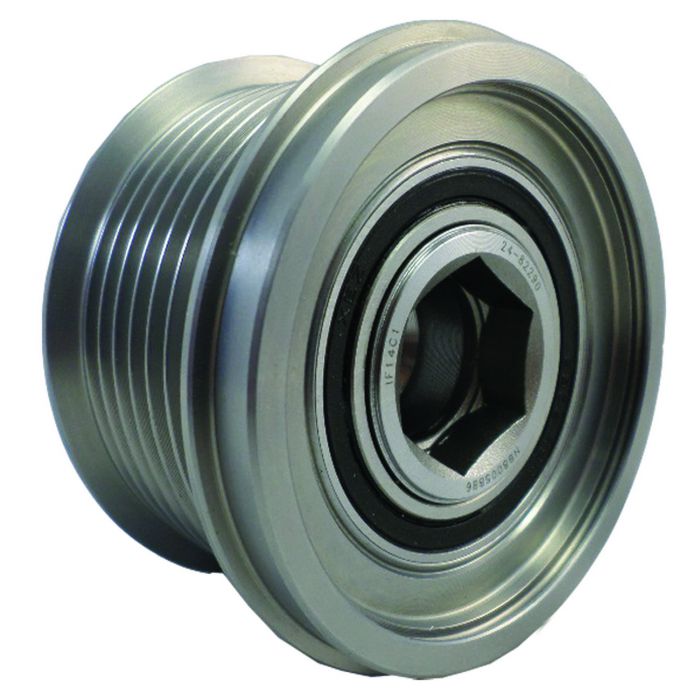

Aftermarket Alternator Clutch Pulley 24-82290
Aftermarket Alternator Clutch Pulley 24-82290
Click to zoom in
Load image into Gallery viewer, Aftermarket Alternator Clutch Pulley 24-82290
Load image into Gallery viewer, Aftermarket Alternator Clutch Pulley 24-82290

Aftermarket Alternator Clutch Pulley 24-82290

Denso
24-82290
In stock
Clutch Pulley
$80.00
$80.00
Aftermarket Alternator Clutch Pulley 24-82290
Description

Specifications

  • DIM 1:25mm Belt x 53mm Rib OD x 17mm Bore, M14 x 1.5 Threads
  • DIM 2:9mm from hub to center of 1st groove
  • DIM A (MM):17
  • DIM B (MM):52.5
  • DIM C (MM):52
  • DIM D (MM):9
  • FEATURE 1:100% New WAIglobal
  • FEATURE 2:Premium 2 Year Warranty
  • GROOVES:7
  • SPECS FOR:Denso IR/IF Alternators
  • SPECS:7-Groove Clutch Pulley
  • TYPE:OAP

    USED ON

    • Lexus (2006-2016) ** Toyota (2005-2016)

      Replaces

      • Denso 021040-1970, INA Bearing Co 535 0209 10, Original Reference Number 27415-0W010-C, 27415-0W01000, Toyota 27415-0W010, 27415-0W010A, 27415-0W010B, 27415-0W130, 27415-0W130A, 27415-0W131

      LESTER NUMBERS

      • 11136, 11137, 11196, 11322, 11323, 11325, 11326, 11514, 11517, 14072

      UNIT NUMBERS

      • Denso 104210-2050, 104210-2051, 104210-2070, 104210-2071, 104210-2074, 104210-2080, 104210-2090, 104210-2091, 104210-2092, 104210-2100, 104210-2101, 104210-2104, 104210-2140, 104210-2141, 104210-284, 104210-2840, 104210-2850, 104210-2860, 104210-2863, 104210-2864, 104210-4470, 104210-4471, 104210-4570, 104210-4571, 104210-4573, 104210-4680, 104210-4740, 104210-4750, 104210-4830, 104210-4890, 104210-5510, 104210-5511, 104210-5512, 104211-8090, 104211-8091, 104211-8092, 104211-8093, 9664219-208; Lexus 27060-0P141-84, 27060-0P151-84, 27060-0P210, 27060-0P240, 27060-0P241, 27060-0P241-84, 27060-31060, 27060-31061, 27060-31062, 27060-31062-84, 27060-31080, 27060-31081, 27060-31081-84, 27060-31110, 27060-31111, 27060-31111-84, 27060-31112, 27060-31161, 27060-31162, 27060-31162-84, 27060-31212; Original Reference Number TN104210-4470, TN104210-5511; Toyota 27060-0P140, 27060-0P141, 27060-0P141-84, 27060-0P150, 27060-0P151, 27060-0P151-84, 27060-0P210, 27060-0P240, 27060-0P241, 27060-0P241-84, 27060-31060, 27060-31061, 27060-31062, 27060-31080, 27060-31081, 27060-31081, 27060-31081-84, 27060-31082, 27060-31090, 27060-31091, 27060-31091, 27060-31091-84, 27060-31091-84, 27060-31100, 27060-31101, 27060-31102, 27060-31110, 27060-31111, 27060-31111-84, 27060-3111184, 27060-31112, 27060-31161, 27060-31162, 27060-31162-84, 27060-31180, 27060-31190
