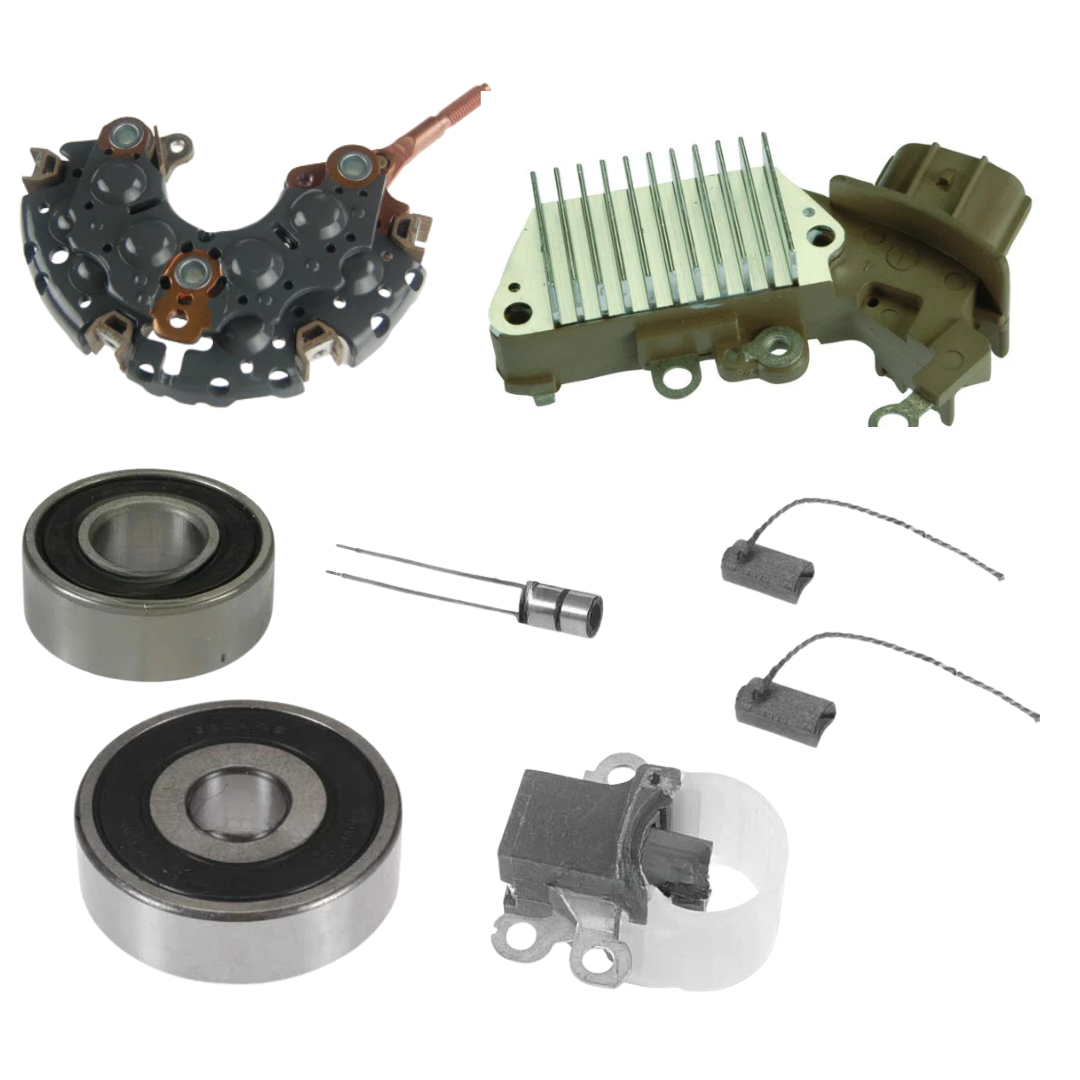

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brush Holder
Brushes
Rectifier
Slip Ring
Voltage Regulator
NOT INCLUDED IN REBUILD KIT:
Bearing Cover
Bearing Retainer
Connector
Frame DE
Insulator 1
Insulator 2
Nut 1
Nut 2
Nut 3
Nut 4
Pulley
Rotor
Screw 1
Screw 2
Screw 3
Seal 1
Seal 2
Stator
Thru Bolt
Washer Spring
Specifications
- MFR:DENSO
- AMPERAGE:100
- DESIGN:IR/IF
- FEATURE 1:100% New
- PLUG CLOCK:02:00 Plug Clock
- PLUG CODE:312
- PULLEY CLASS: S7
- ROTATION:CW
- SPECS FOR:Dense IR/IF
- SPECS:100 Amp/12 Volt, CW, 7-Groove Pulley
- VOLTAGE:12
USED ON
- Toyota (1982-2005) ** Toyota - Europe (2000-2006)
Replaces
- Dense 100211-0600, 101211-7400, 101211-7410, 102211-0780, 102211-2120, 102211-2250, 102211-9470, 9661219-740, Toyota 27060-28060, 27060-28080, 27060-28080-84, 27060- 28090, 27060-28090-84, 27060-28110, 27060-28110-84, 27060-2811084
LESTER NUMBERS
- 13957, 13959, 14004, 14336
