Specifications
SPECS:12 Volt

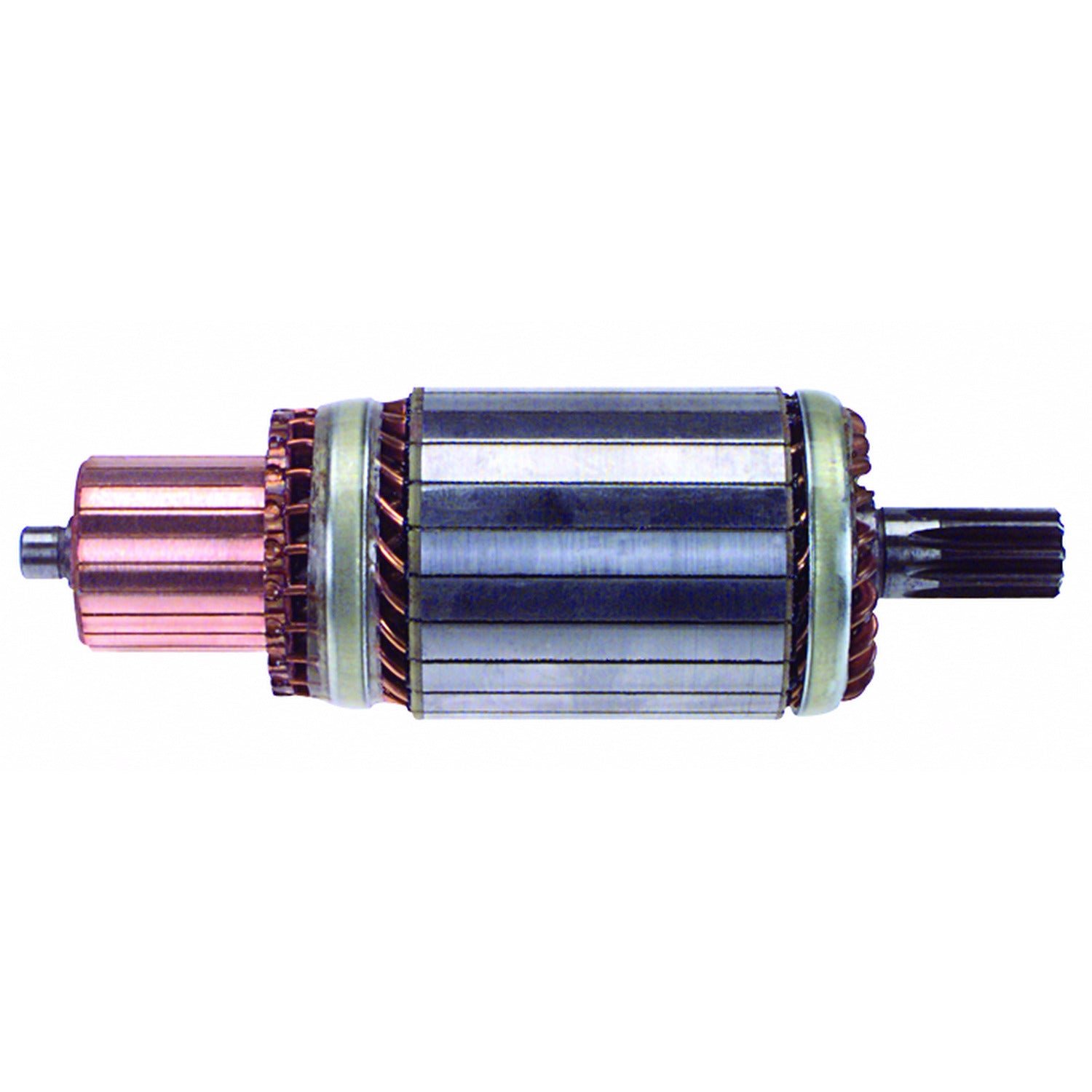

SPECS FOR:Denso 2.5kW OSGR Starters
Dim 1:187mm OAL
Dim 2:9-Splines
Dim 3:17mm Shaft OD, Front Bearing
Dim 4:10mm Shaft OD, Rear Bearing
NOTE 1:Used w/ 6-103-4 & 6-200-4 ball bearings.
FEATURE 1:100% New
FEATURE 2:Precision machined shaft with ground bearing surfaces
FEATURE 3:Heat treated splines & bearing surfaces
FEATURE 4:Commutator with thick copper segments & stake welded hairpins
FEATURE 5:Banded hairpins at commutator
FEATURE 6:100% tested for balance, grounds & shorts
LESTER NUMBERS
16652, 16658, 16897, 16981, 16990, 17198, 17304, 17311, 17348, 17362, 17362A, 17380, 17385, 17388, 17390, 17393, 17394, 17399, 17418, 17458, 17462, 17548, 17589, 17613, 17630, 17892, 18138, 18150, 18197, 18424, 18456, 18506, 18507, 18510, 18559, 18560, 18936, 19553, 19905, 19924, 19962, 19963, 30721, 33217, 33287
Replaces
Allis-Chalmers 272032, Case A47242, Caterpillar 7T6091, Denso 028200-1780, 028200-1900, 028200-6230, Isuzu 5811210220
UNIT NUMBERS
Allis-Chalmers 270324; Atlas Copco 91295372; Bluebird Bus 1315480, 1760057, 1769512, 1967561; Bobcat 6631597, 6632415, 6665324, 6665654, 6667587; Case 116930A1, 1987559C1, 282161A1, 86982709, A170746, A181056, A47496, R39341; Caterpillar 0R4316, 0R4319, 1068553, 112-1767, 142-0539, 143-0535, 143-0536, 143-0537, 143-0538, 143-0539, 303-5769, 3E0079, 3E7905, 6T7001, 6T7007, 6V0492, 7C2264, 7C4622, 8T8619, 8T9685, OR4316; Chrysler 05086932AA, 4741012, 4746639, 5016522AA, 5086932AA, R4741012; Clark 2355695, 6632415, C07628, C07889, CO7628; Cummins 1308066H91, 2873K409, 3604684NW, 3604684RX, 3920403, 3920643, 3921682, 3935888, 3957585, 3957586, 3964432, 3971612, 4090084; Daewoo D160591; Daihatsu Motor Co 28100-47050, 28100-47051, 28100-87314, 28100-8731A, 28100-87601; Denso 028000-5593, 028000-5880, 028000-5881, 028000-5882, 028000-5883, 028000-5884, 028000-6290, 028000-6291, 028000-6640, 028000-6780, 028000-6781, 028000-6782, 028000-7840, 028000-7841, 028000-8400, 028000-8401, 028000-8402, 028000-8403, 028000-8404, 028000-8405, 028000-8490, 128000-0210, 128000-0211, 128000-0212, 128000-0213, 128000-0214, 128000-0215, 128000-0216, 128000-0970, 128000-0971, 128000-0972, 128000-0973, 128000-0974, 128000-1060, 128000-1061, 128000-1062, 128000-1780, 128000-1781, 128000-1782, 128000-2250, 128000-2251, 128000-2252, 128000-2253, 128000-2270, 128000-2273, 128000-2480, 128000-3030, 128000-3032, 128000-3120, 128000-3121, 128000-3122, 128000-4080, 128000-4081, 128000-4082, 128000-4083, 128000-4084, 128000-4090, 128000-4091, 128000-4092, 128000-5600, 128000-5601, 128000-5602, 128000-6860, 128000-6861, 128000-7040, 128000-7041, 128000-7042, 128000-8290, 128000-8291, 128000-8292, 128000-8293, 128000-8294, 128000-8640, 128000-8641, 128000-9500, 128000-9501, 128000-9502, 128000-9503, 128000-9504, 128000-9610, 128000-9960, 128000-9962, 228000-0020, 228000-0022, 228000-0190, 228000-0191, 228000-0620, 228000-0621, 228000-0622, 228000-0623, 228000-0624, 228000-0840, 228000-0841, 228000-0842, 228000-0844, 228000-0845, 228000-1350, 228000-1351, 228000-1352, 228000-1420, 228000-1421, 228000-1422, 228000-1610, 228000-1611, 228000-1950, 228000-1951, 228000-1952, 228000-1953, 228000-2030, 228000-2031, 228000-2032, 228000-2290, 228000-2291, 228000-2292, 228000-3600, 228000-3601, 228000-4160, 228000-4161, 228000-4670, 228000-4671, 228000-4940, 228000-4941, 228000-5210, 228000-5211, 228000-5340, 228000-5341, 228000-5342, 228000-5760, 228000-5761, 228000-5810, 228000-5811, 228000-6050, 228000-6051, 228000-6230, 228000-6231, 228000-6400, 228000-6401, 228000-6470, 228000-6471, 228000-6980, 228000-6981, 228000-7300, 228000-7301, 228000-7310, 228000-7340, 228000-7341, 228000-7342, 228000-7810, 228000-8460, 228000-9100, 228080-2290, 228080-2291, 228080-2292, 428000-0190, 428000-0191, 428000-0290, 428000-1190, 428000-1600, 428000-2160, 428000-2630, 428000-2631, 428000-2633, 428000-2890, 428000-3110, 428000-5940, AS228000-1953, AS228000-4671, AS228000-6401, AS228000-7810, AS428000-1600; Detroit Diesel 23519695; Ford F4HS-11001-HA; Freightliner 01-27284-000; Hyster 3049383, 3049479, 8504305; IHC, Navistar 1959854C1, 1987586C1, 2585095C91, 2585259C91; Isuzu 5811001540; JLG Industries 7026833; John Deere RE19275, RE40092, RE41799, RE50165, RE51447, RE51694, RE540300, RE540301, RE540302, RE54090, RE54091, RE54092, RE540925, RE559757, RE59588, RE59595, RE68470, SE501401, SE501402, SE501425, SE501426, TY24436, TY24437, TY24438, TY25971, TY25972, TY6688, TY6719; Komatsu 600-813-1410, 600-813-1430; Kubota 16541-63010, 16541-63012; Letrika (Iskra) Tech. AZE4253, AZJ3466; Marelli 944280526030; Onan 191-2211; Original Reference Number 4402426, XD253; Ottawa 90022947; Perkins Engine 1388721; Prestolite 20513034, 35259620; Teledyne TMD-27M00517, TMD-27M504, TMD-27M506, TMD-27M507, TMD-27M509, TMD-27M517, TMD27M00519; Thomas Built Buses 61230709; Toyota 28100-0L050, 28100-0L051, 28100-17010, 28100-17040, 28100-30050, 28100-30051, 28100-30070, 28100-30080, 28100-30081, 28100-360E3,
