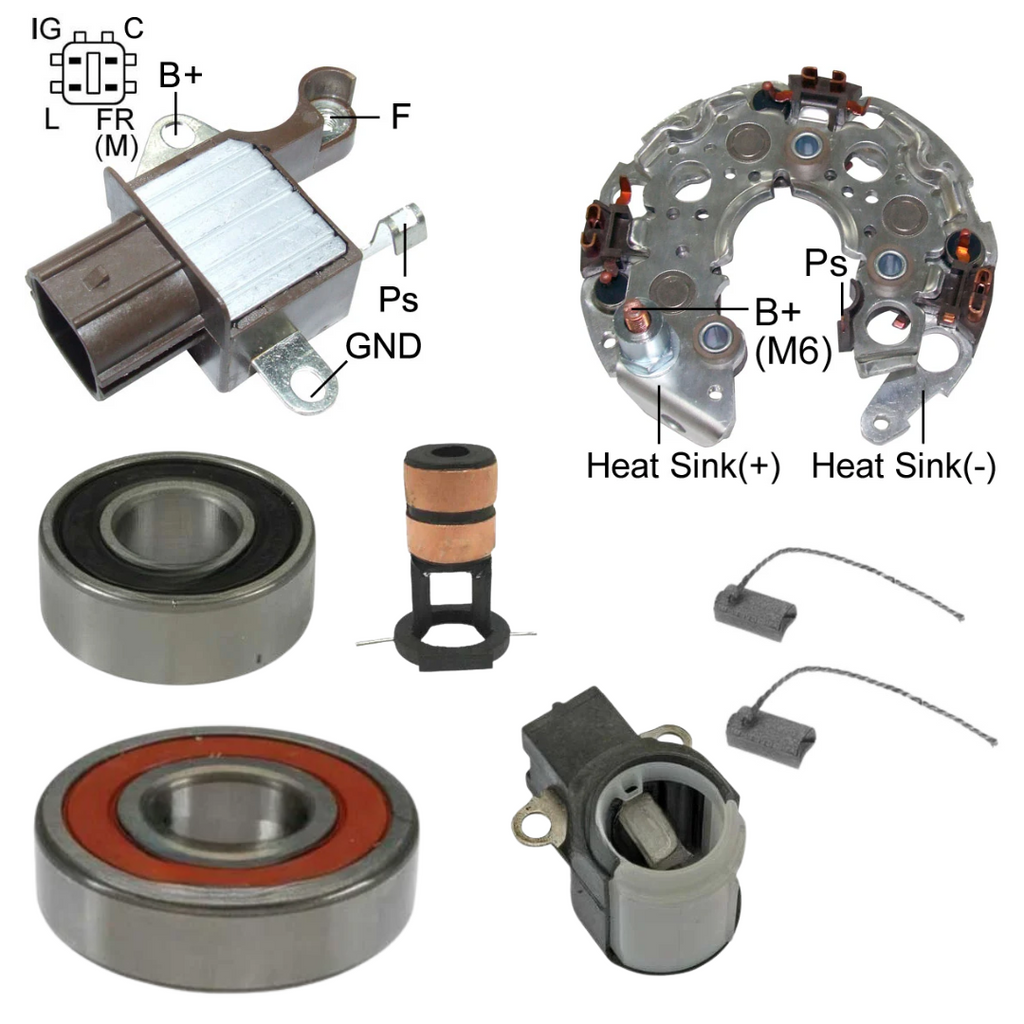

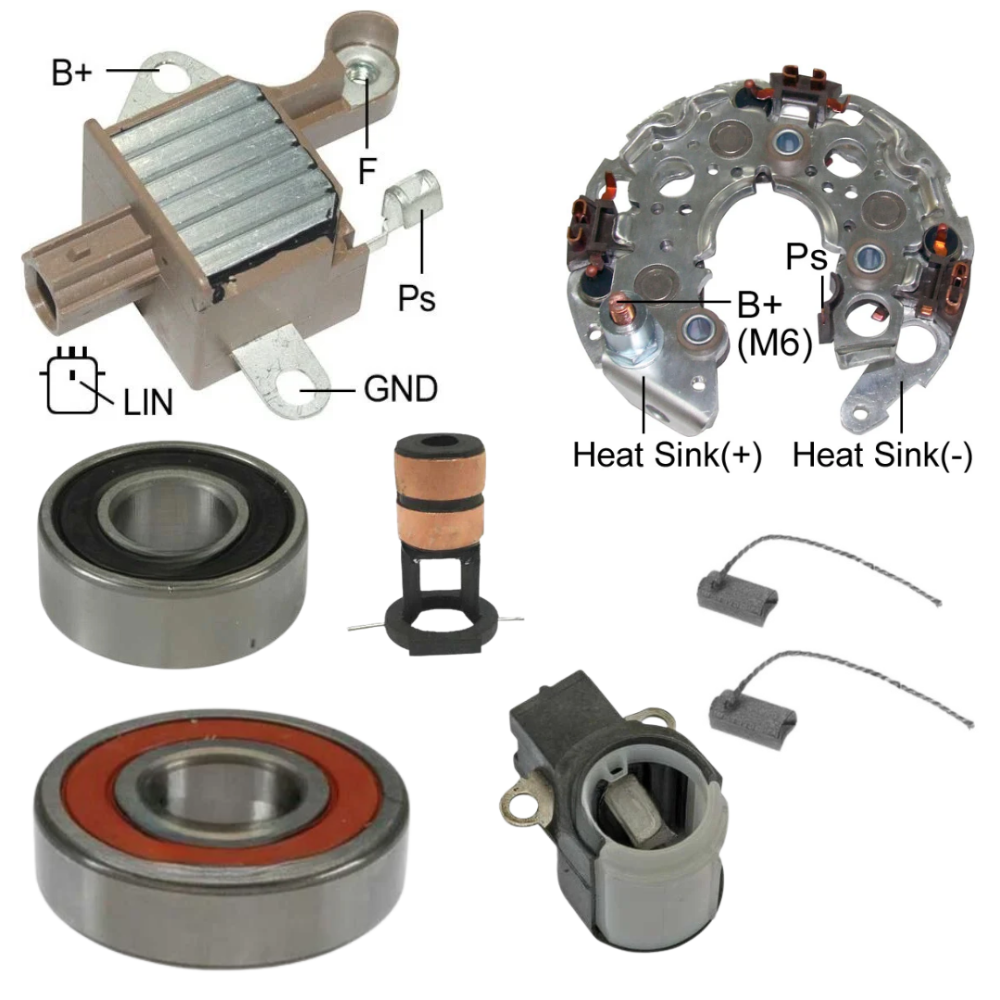

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brush Holder
Brushes
Rectifier
Slip Ring
Voltage Regulator
NOT INCLUDED IN REBUILD KIT:
Bearing Cover
Bearing Retainer
Insulator 1
Nut 1
Pulley Nut
Rectifier Cover
Screw 1
Screw 2
Screw 3
Washer Ring
Specifications
- MFR:DENSO
- Mfr Series:HAIRPIN
- AMPERAGE:120
- DESIGN:IR/IF
- FEATURE 1:100% New
- PLUG CLOCK:10:00 Plug Clocking
- PULLEY CLASS:S7
- ROTATION:CW
- SPECS FOR:Alternator - Denso Hairpin IR/IF
- SPECS:120 Amp/12 Volt, CW, 7-Groove Pulley
- VOLTAGE:12
USED ON
- Acura (2013-2015) ** Honda (2012-2015) ** Honda - China (2012-2013)
VEHICLE APPLICATION
|
Acura Car |
ILX L4 2.4L 2354cc 144cid 2013-2015 |
|
Honda Car |
Civic L4 2.4L 2354cc 144cid 2012-2015 |
|
Honda Truck |
CR-V L4 2.4L 2354cc 144cid 2012-2014 |
|
Honda - China Truck |
CR-V 2.4L, Non-Turbo, Gas (K24Z8) 2012-2013 |
LESTER NUMBERS
- 11604
Replaces
- Acura 31100-RX0-A01, 31100-RX0-A01RM, Denso 104210-1530, Honda 31100-RX0-A01, 31100-RX0-A01RM
