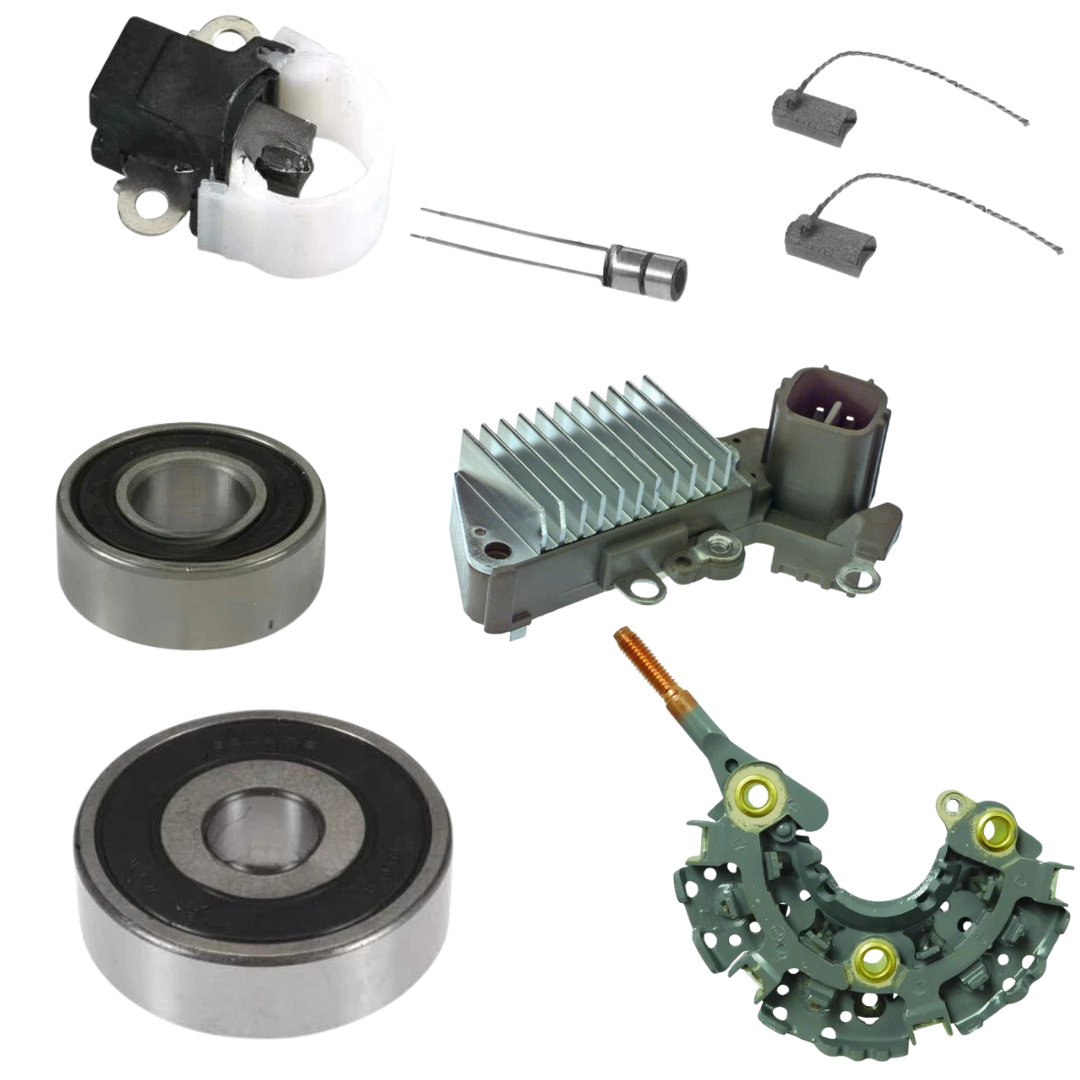

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brush Holder
Brushes
Rectifier
Slip Ring
Voltage Regulator
NOT INCLUDED IN REBUILD KIT:
Bearing Cover
Bearing Retainer
Connector
Cover 1
Diodes Negative
Diodes Positive
Ground Strap
Insulator 1
Insulator 2
Nut 1
Nut 2
Pulley
Pulley Nut
Rectifier Cover
Screw 1
Screw 2
Screw 3
Seal 1
Seal 2
Spacer
Stator
Thru Bolt
Washer Ring
Washer Spring
Specifications
- MFR:DENSO
- AMPERAGE:80
- DESIGN:IR/IF
- FEATURE 1:100% New
- PLUG CLOCK:10:00 Plug Clock
- PLUG CODE:296
- PULLEY CLASS:S6
- ROTATION:CCW
- SPECS FOR:Denso IR/IF
- SPECS:80 Amp/12 Volt, CCW, 6-Groove Pulley
- VOLTAGE:12
USED ON
- Acura (1998-1999) ** Honda (1998-2002) ** Honda - China (1998-1998)
VEHICLE APPLICATION
|
Acura Car |
CL L4 2.3L 2254cc 1998-1999 |
|
Honda Car |
Accord L4 2.3L 2254cc 1998-2002 |
|
Honda - China Car |
Accord 2.3L, Non-Turbo, Gas (F23A1) 1998 |
Replaces
- Acura 06311-PAA-505RM, 06311-PAA-506RM, 31100-PAA-A01, 31100-PAA-A01RM, Denso 101211-9990, 102211-1010, 9761219-999, Honda 06311-PAA-505RM, 06311-PAA-506RM, 31100-PAA-A01, 31100-PAA-A010M, 31100-PAA-A01RM, 31100-PAA-L71, 31100-PAA-L710, 31100-PAA-L71RM, CJV01
