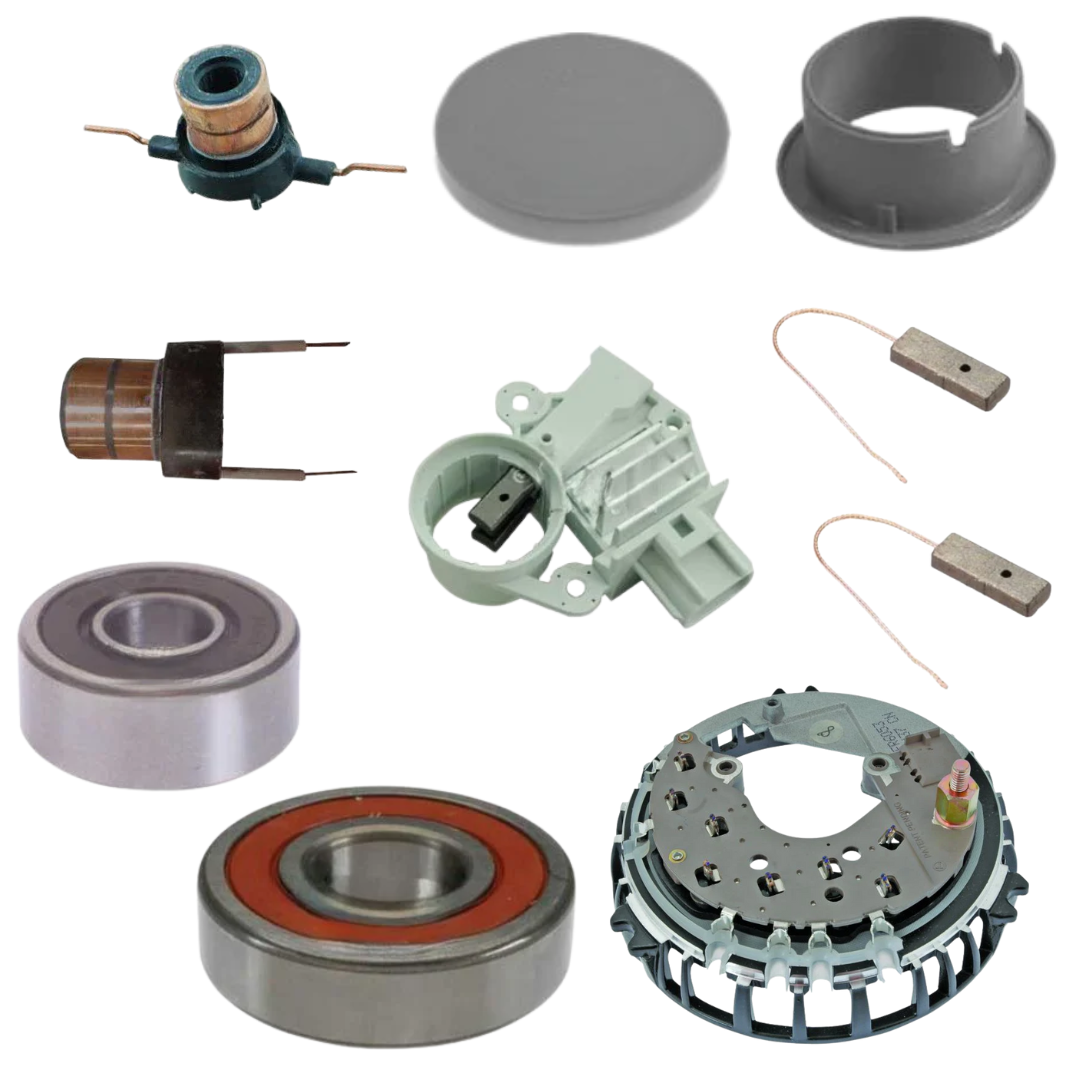

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brushes
Rectifier
Tolerance Ring
NOT INCLUDED IN REBUILD KIT:
Diodes Negative
Diodes Positive
Frame DE
Frame SRE
Pulley
Pulley Nut
Rotor
Thru Bolt
Specifications
- MFR:FORD
- Mfr Series:6G
- AMPERAGE:135
- DESIGN:IR/IF
- FEATURE 1:100% New
- FEATURE 2:WAI-Transpo rectifier features 13mm press-fit diodes w/ crimp-weld diode terminations
- FEATURE 3:Premium, hi-temperature WBD bearings
- FEATURE 4:Hi-temperature class-H windings
- FEATURE 5:Precision CNC machined castings
- FEATURE 6:OE performance output curve
- NOTE 1:337 Plug Code
- NOTE 2:Neg. Grd.
- NOTE 3:Representative image, actual item may vary
- PLUG CLOCK:03:00 Plug Clock
- PULLEY CLASS:S6
- PULLEY NOTE:66mm OD
- ROTATION:CW
- SPECS FOR:Ford 6G Series IR/IF
- SPECS:135 Amp/12 Volt, CW, 6-Groove Pulley, 03:00 Plug Clock
- VOLTAGE:12
USED ON
- Ford (2004-2007) ** Mercury (2004-2007)
Replaces
- Ford 3F2U-10300-AA, 3F2Z-10346-AA, 6F2Z-10346-BA, 6F2Z-10346-BBRM, 6F2Z-10346-BCRM, 6F2Z-10V346-BBRM, Ford Engineering 3F2U-AA, 4F23-AA, RM6F2T-10300-BE, Original Reference Number 6F2T-BB, Visteon HA
LESTER NUMBERS
- 8408
