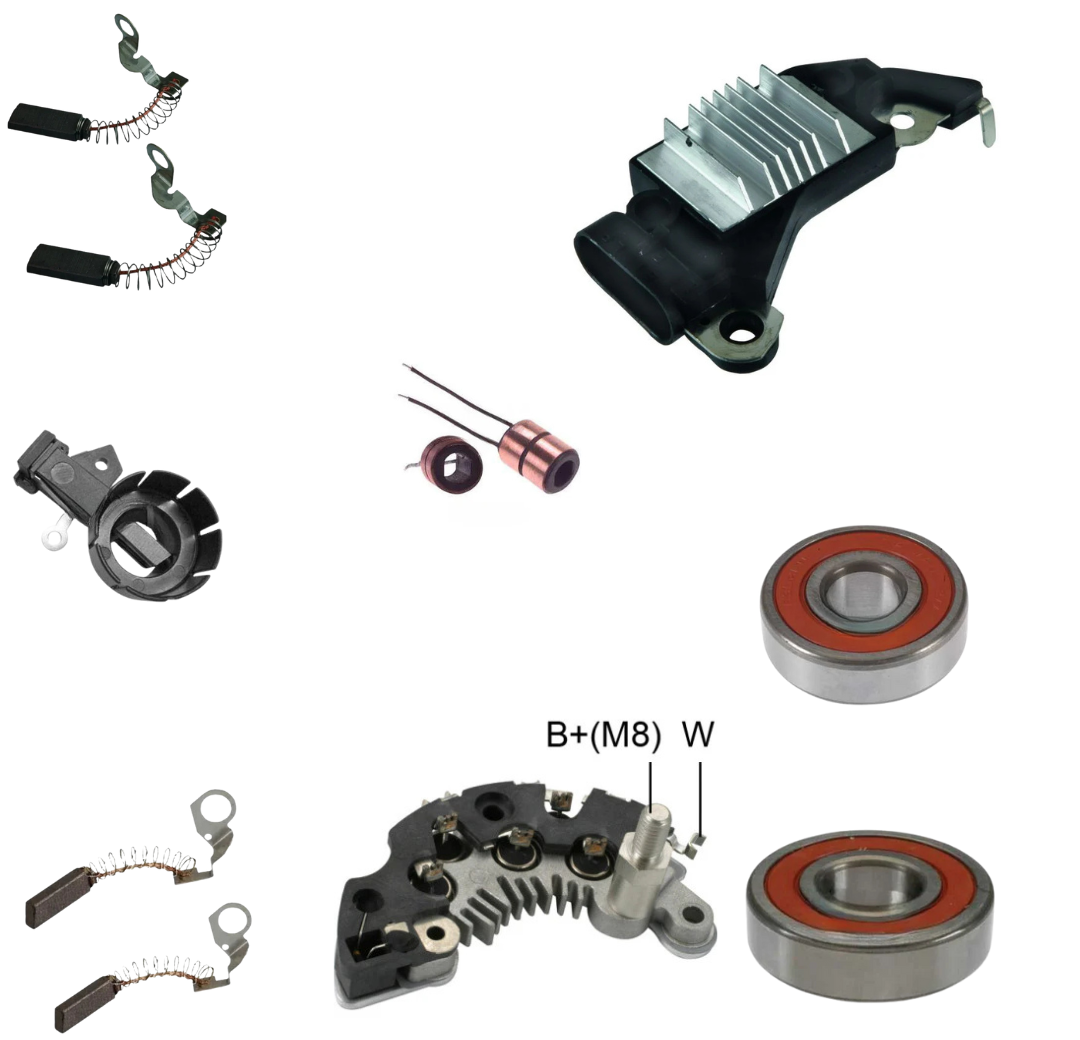

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brushes 1
Brushes 2
Brush Holder
Rectifier
Slip Ring
Voltage Regulator
NOT INCLUDED IN REBUILD KIT:
Bearing Retainer
Cover
Grease, Heat Transfer
Nut
Pulley
Rotor
Repair Harness
Screw 1
Screw 2
Stator
Thru Bolt
Test Lead
Washer Lock
Specifications
- MFR:DELCO
- Mfr Series:CS130D
- AMPERAGE:100
- DESIGN:IR/IF
- FEATURE 1:100% New
- FEATURE 2:OE performance output curve
- FEATURE 3:WAI-Transpo premium rectifier featuring press-fit avalanche diodes
- FEATURE 4:WAI-Transpo premium regulator with 20A MOSFET field transistor
- FEATURE 5:Premium, hi-temperature WBD bearings
- FEATURE 6:Hi-temperature class-H windings
- FEATURE 7:Precision CNC machined castings
- PLUG CLOCK:03:00 Plug Clock
- PULLEY CLASS:S6
- PULLEY NOTE:57mm OD
- ROTATION:CW
- SPECS FOR:Delco CS130D IR/IF
- SPECS:100 Amp/12 Volt, CW, 6-Groove/57mm OD Pulley, 03:00 Plug Clock
- VOLTAGE:12
USED ON
- Oldsmobile (1995-1997)
Replaces
- Delco 10463653, 10463884, 10480195, 10480238, GM 10463653, 10463884
LESTER NUMBERS
- 8156-3
