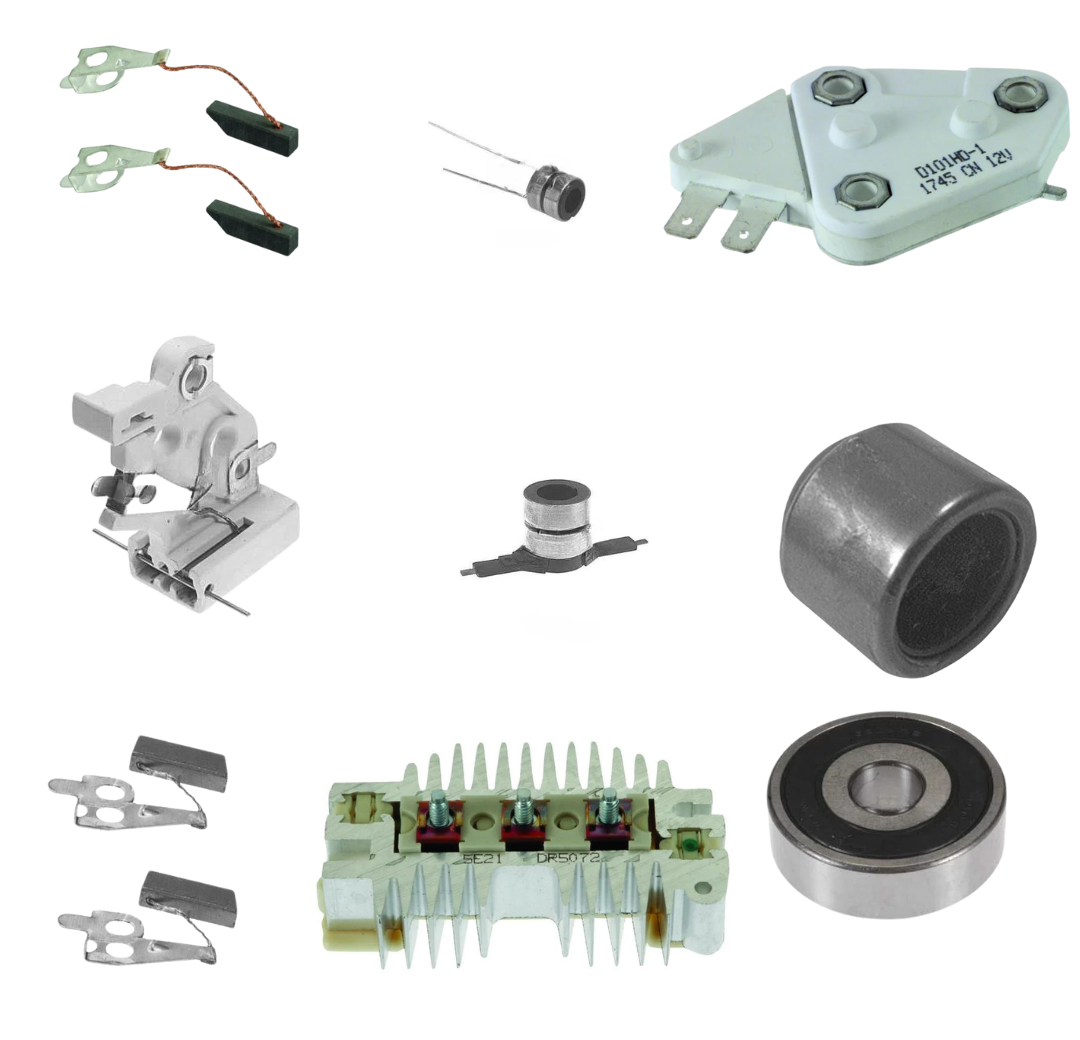

INCLUDED IN REBUILD KIT:
Bearing DE
Brushes 1
Brushes 2
Brush Holder
Needle Bearing
Rectifier
Slip Ring 1
Slip Ring 2
Voltage Regulator
NOT INCLUDED IN REBUILD KIT:
Battery Terminal
Battery Terminal Kit
Bearing Retainer
Bracket
Brush Spring
Clip
Diodes Trio
Fan
Insulator
Insulator 2
Nut
Nut 2
Nut 3
Nut 4
Pulley Nut
Pin
Plug Adapter
Pulley
Rotor
Repair Harness
Screw 1
Screw 2
Screw 3
Screw 4
Screw 5
Spacer 1
Spacer 2
Thru Bolt
Washer Lock
Washer Plain
Specifications
- MFR:DELCO
- Mfr Series:15SI
- AMPERAGE:85
- DESIGN:IR/EF
- FEATURE 1:100% New
- PLUG CLOCK:06:00 Plug Clock
- PLUG CODE:151
- PULLEY CLASS:V1
- ROTATION:CW
- SPECS FOR:Delco 15SI Series IR/EF
- SPECS:85 Amp/12 Volt, CW, 1-Groove Pulley
- VOLTAGE:12
USED ON
- Buick (1980-1987) ** Cadillac (1982-1982) ** Chevrolet (1980-1987) ** GMC (1980-1984) ** Oldsmobile (1980-1987) ** Pontiac (1980-1987)
Replaces
- Delco 10495385, 10495386, 10495389, 1100183, 1100184, 1100187, 1100190, 1100219, 1100282, 1100284, 1101037, 1101042, 1101067, 1101071, 1101072, 1101074, 1101078, 1101082, 1101083, 1101084, 1101086, 1101095, 1101098, 1101334, 1101336, 1101443, 1101449, 1101924, 1101925, 1105039, 1105040, 1105062, 1105196, 1105197, 1105198, 1105199, 1105249, 1105250, 1105328, 1105330, 1105331, 1105333, 1105415, 1105548, 1972711, 1984272, 1985876, GM 10495385, 10495386, 10495389, 1105438, 1972711, 1984272, 1985876
LESTER NUMBERS
- 7134-6, 7137-6
