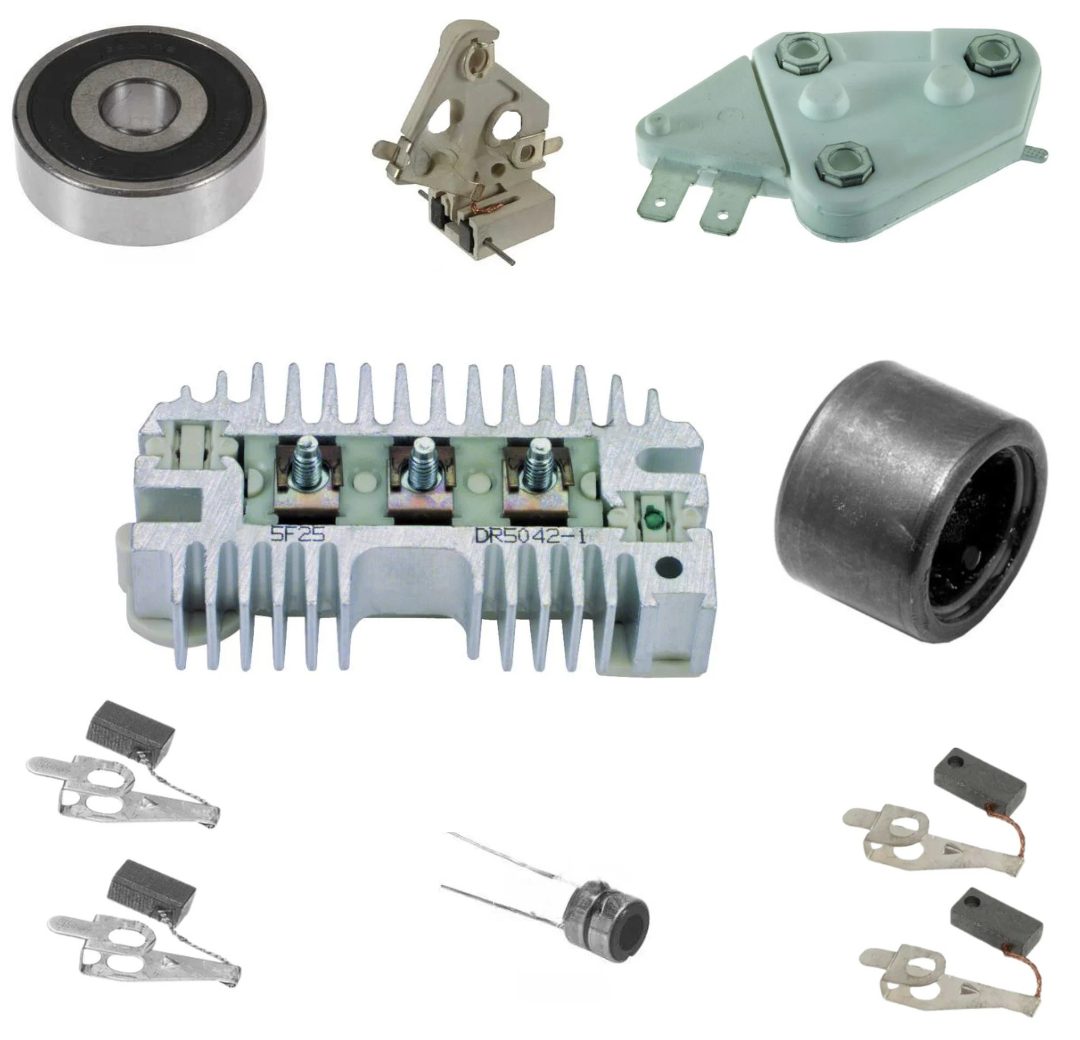

INCLUDED IN REBUILD KIT:
Bearing DE
Brushes 1
Brushes 2
Brush Holder
Needle Bearing
Rectifier
Slip Ring
Voltage Regulator
NOT INCLUDED IN REBUILD KIT:
Bearing Retainer
Brush Spring
Bolt Mounting
Bushing Mounting
Bracket
Capacitor
Cap
Clip
Diodes Trio
Frame SRE
Insulator 1
Insulator 2
Nut 1
Nut 2
Nut 3
Nut 4
Pulley Nut
Pin
Plug Adapter
Pulley
Rotor
Repair Harness
Screw 1
Screw 2
Screw 3
Screw 4
Screw 5
Spacer
Spacer 2
Sleeve
Stator
Thru Bolt
Washer Lock 1
Washer Lock 2
Washer Plain
Specifications
- MFR:DELCO
- Mfr Series:10SI
- AMPERAGE:63
- DESIGN:IR/EF
- FEATURE 1:100% New
- FEATURE 2:Standard & metric mounting
- NOTE 1:3-Wire System
- PLUG CLOCK:03:00 Plug Clock
- PLUG CODE:151
- PULLEY CLASS:V1
- ROTATION:CW
- SPECS FOR:Delco 10SI Series IR/EF
- SPECS:63 Amp/12 Volt, CW, 1-Groove Pulley, 03:00 Plug Clock, 3-Wire System
- VOLTAGE:12
USED ON
- Bobcat (1976-1997) ** Buick (1973-1985) ** Case (1973-1976) ** Caterpillar Ag. & Ind. (1983-1986) ** Chevrolet (1973-1989) ** GMC (1973-1989) ** Jeep (1976-1986) ** Miller Electric (1992-1992) ** Oldsmobile (1968-1984) ** Pontiac (1973-1985) ** VAM (1975-1983)
Replaces
- Chrysler 8134663, 8982775004, JR775004, Delco 10495382, 1100110, 1100111, 1100116, 1100117, 1100128, 1100129, 1100135, 1100142, 1100145, 1100148, 1100149, 1100151, 1100155, 1100156, 1100158, 1100159, 1100165, 1100174, 1100196, 1100198, 1100201, 1100202, 1100204, 1100227, 1100228, 1100230, 1100231, 1100232, 1100266, 1100280, 1100281, 1100297, 1100487, 1100494, 1100498, 1100542, 1100551, 1100552, 1100561, 1100562, 1100564, 1100565, 1100573, 1100575, 1100592, 1100595, 1100596, 1100597, 1100830, 1100831, 1100832, 1100852, 1100853, 1100855, 1100861, 1100865, 1100880, 1100890, 1100934, 1100935, 1100949, 1102351, 1102367, 1102368, 1102369, 1102387, 1102394, 1102397, 1102479, 1102480, 1102483, 1102488, 1102492, 1102493, 1102494, 1102495, 1102548, 1102549, 1102550, 1102593, 1102840, 1102841, 1102842, 1102843, 1102844, 1102860, 1102880, 1102881, 1102883, 1102899, 1102901, 1102903, 1102904, 1102905, 1102906, 1102911, 1102913, 1103042, 1103043, 1103044, 1103045, 1103047, 1103048, 1103051, 1103057, 1103058, 1103060, 1103061, 1103065, 1103075, 1103076, 1103082, 1103083, 1103085, 1103087, 1103088, 1103089, 1103094, 1103100, 1103101, 1103102, 1103106, 1103108, 1103109, 1103110, 1103111, 1103112, 1103118, 1103119, 1103121, 1103145, 1103146, 1103148, 1103151, 1103153, 1103154, 1103162, 1103169, 1103186, 1103187, 1103197, 1103199, 1105050, 1105079, 1105360, 1105520, 1105522, 1105556, 1105649, 1105677, 1105704, 1876680, 1976063, 1979858, 1979863, 1979865, GM 1100297, 1103060, 1103061, 1103151, 1105357, 1105360, 1976063, 1979858, 1979863, 1979865, 1984281, Jeep-Eagle 8134663, 8982775004, JR775004
LESTER NUMBERS
- 7127-3
