Aftermarket Delco Alternator Rebuild Kit 8199-2RK
Click to zoom in
Load image into Gallery viewer, Aftermarket Delco Alternator Rebuild Kit 8199-2RK

Aftermarket Delco Alternator Rebuild Kit 8199-2RK

Delco
8199-2RK
Out of stock
Rebuild Kit
$75.00
Aftermarket Alternator 8189-7N
Aftermarket Alternator 8189-7N
$400.00
Aftermarket Alternator 8199-2N
Aftermarket Alternator 8199-2N
$300.00
Aftermarket Delco Alternator Rebuild Kit 8199-2RK

Shipping

In-stock orders ship out same day or next business day via USPS.

Pre Order

Pre-orders ship out in the order received within 7–21 business days.

Description

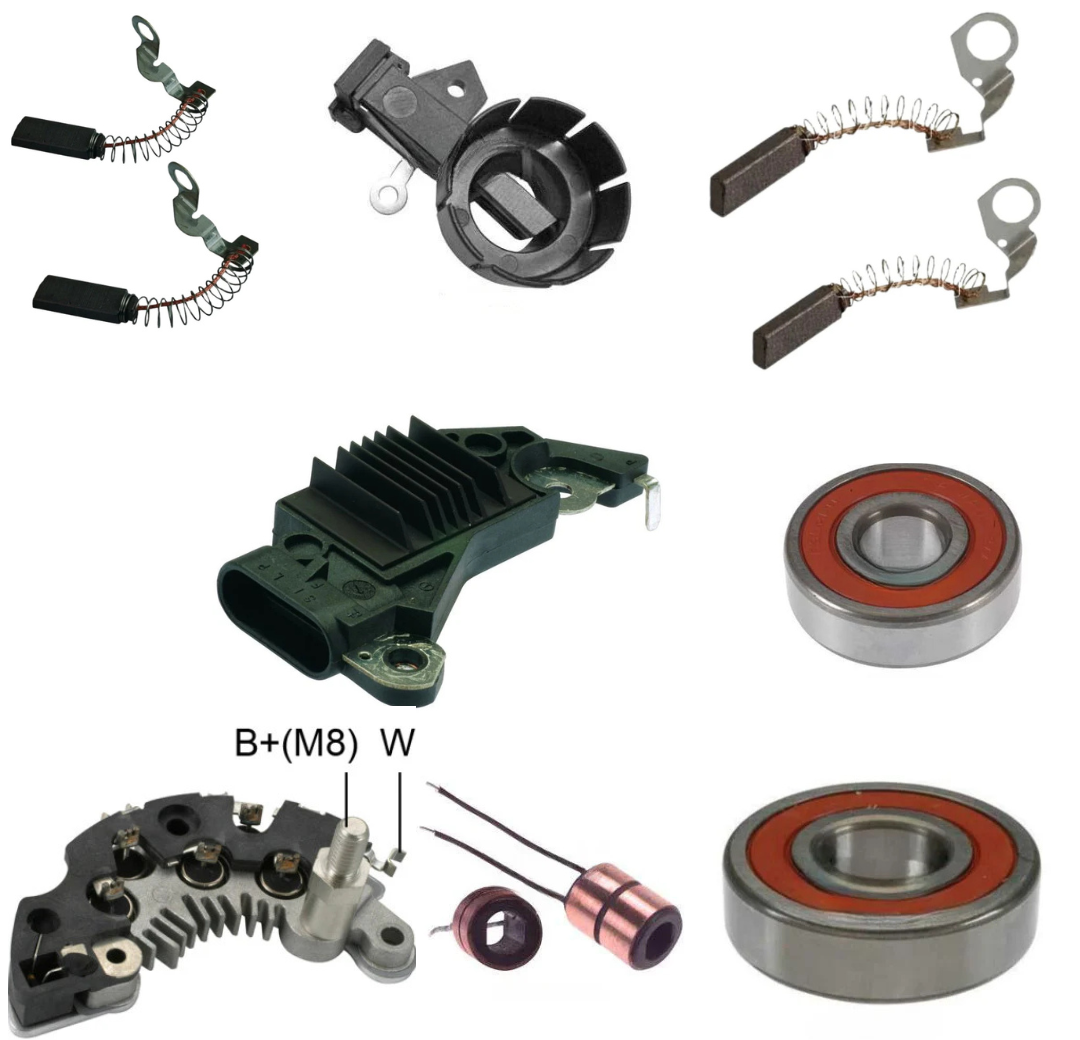

INCLUDED IN REBUILD KIT:

Bearing DE
Bearing SRE
Brushes 1
Brushes 2
Brush Holder
Rectifier
Slip Ring
Voltage Regulator

NOT INCLUDED IN REBUILD KIT:

Rectifier Cover
Bearing Retainer
Cover
Grease, Heat Transfer
Pulley Nut
Pulley
Rotor
Repair Harness
Screw 1
Screw 2
Spacer
Stator
Thru Bolt
Washer Lock

Specifications

  • MFR:DELCO
  • Mfr Series:CS130D
  • AMPERAGE:105
  • DESIGN:IR/IF
  • FEATURE 1:100% New
  • FEATURE 2:OE performance output curve
  • FEATURE 3:WAI-Transpo premium rectifier featuring press-fit avalanche diodes
  • FEATURE 4:WAI-Transpo premium regulator with 20A MOSFET field transistor
  • FEATURE 5:Premium, hi-temperature WBD bearings
  • FEATURE 6:Hi-temperature class-H windings
  • FEATURE 7:Precision CNC machined castings
  • PLUG CLOCK:02:00 Plug Clock
  • PLUG CODE:314
  • PULLEY CLASS:S5
  • ROTATION:CW
  • SPECS FOR:Delco CS130D IR/IF
  • SPECS:105 Amp/12 Volt, CW, 5-Groove Pulley, 02:00 Plug Clock
  • VOLTAGE:12

USED ON

  • Chevrolet (1996-1998) ** Pontiac (1996-1998)

Replaces

  • Delco 10463639, 10464087, 10480076, 10480289, GM 10463639, 10464087

LESTER NUMBERS

  • 8199-2
