Aftermarket Delco Alternator Rebuild Kit 8189-7RK

Click to zoom in

Load image into Gallery viewer, Aftermarket Delco Alternator Rebuild Kit 8189-7RK

Aftermarket Delco Alternator Rebuild Kit 8189-7RK

Brand: Delco

SKU: 8189-7RK

availability: In stock

Product Code: Rebuild Kit

$70.00

Quantity

Quantity must be 1 or more

Shipping

In-stock orders ship out same day or next business day via USPS.

Pre Order

Pre-orders ship out in the order received within 7–21 business days.

Customer Support

Need help finding a part? Call or Text 951.870.3394

Description

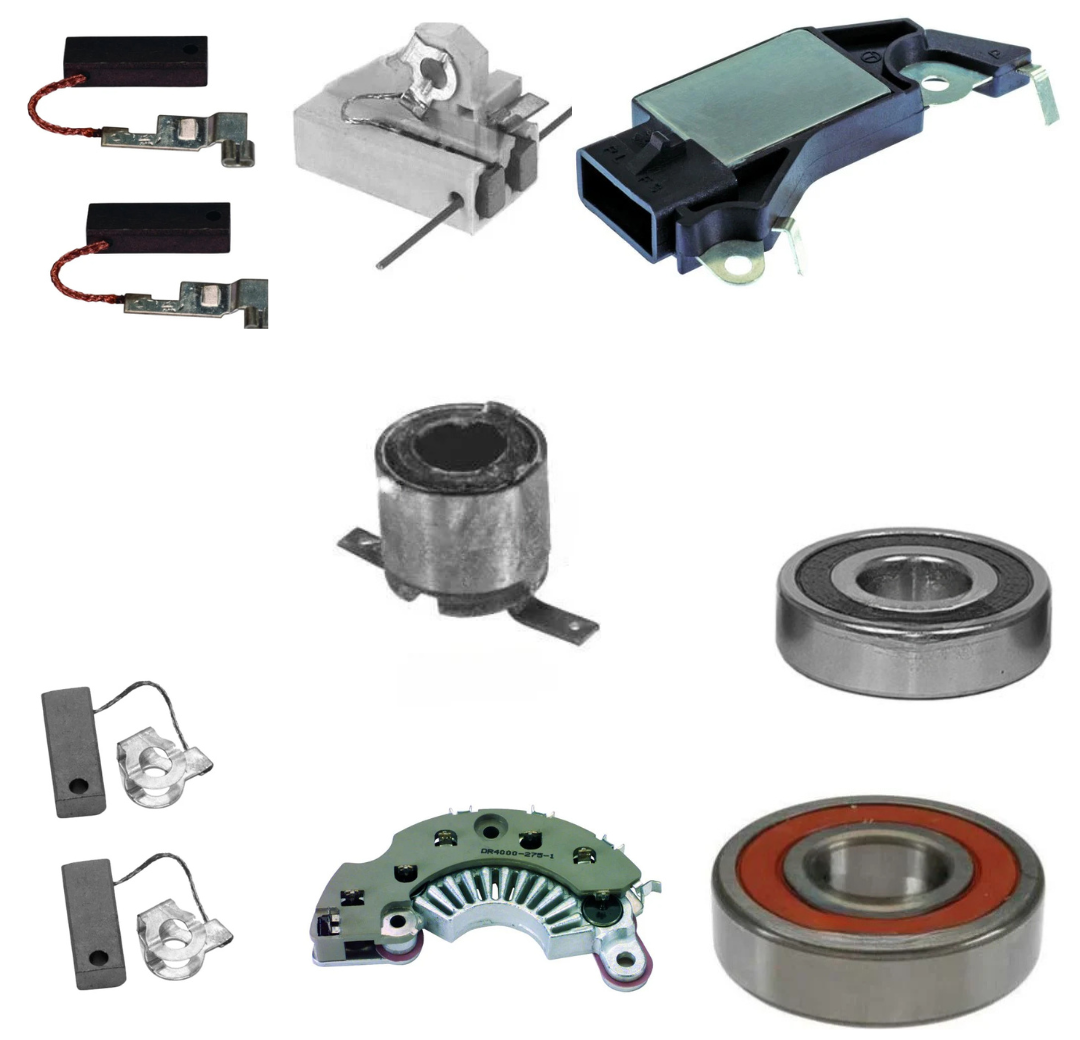

INCLUDED IN REBUILD KIT:

Bearing DE
Bearing SRE
Brushes 1
Brushes 2
Brush Holder
Rectifier
Slip Ring
Voltage Regulator

NOT INCLUDED IN REBUILD KIT:

Baffle SRE
Bearing Retainer
Battery Terminal
Battery Terminal Kit
Brush Spring
Cover
Fan
Frame DE
Frame SRE
Grease, Heat Transfer
Insulator
Nut 1
Nuts 2
Pulley Nut
Pin
Rotor
Repair Harness
Screw
Spacer 1
Spacer 2
Spacer 3
Stator
Thru Bolt
Washer Lock

Specifications

MFR:DELCO
Mfr Series:CS130
AMPERAGE:105
DESIGN:IR/EF
FEATURE 1:100% New
FEATURE 2:OE performance output curve
FEATURE 3:WAI-Transpo premium rectifier featuring press-fit avalanche diodes
FEATURE 4:WAI-Transpo premium regulator with 20A MOSFET field transistor
FEATURE 5:Premium, hi-temperature WBD bearings
FEATURE 6:Hi-temperature class-H windings
FEATURE 7:Precision CNC machined castings
NOTE 1:309 Plug Code
NOTE 2:Neg. Grd.
PLUG CLOCK:07:00 Plug Clock
PULLEY CLASS:S5
PULLEY NOTE:56mm OD
ROTATION:CW
SPECS FOR:Delco CS130 Series IR/EF
SPECS:105 Amp/12 Volt, CW, 5-Groove Pulley, 07:00 Plug Clock
VOLTAGE:12

USED ON

Chevrolet (1995-1995) ** Pontiac (1995-1995)

Replaces

Delco 10463604, 10480055, GM 10463604

LESTER NUMBERS

8189-7
