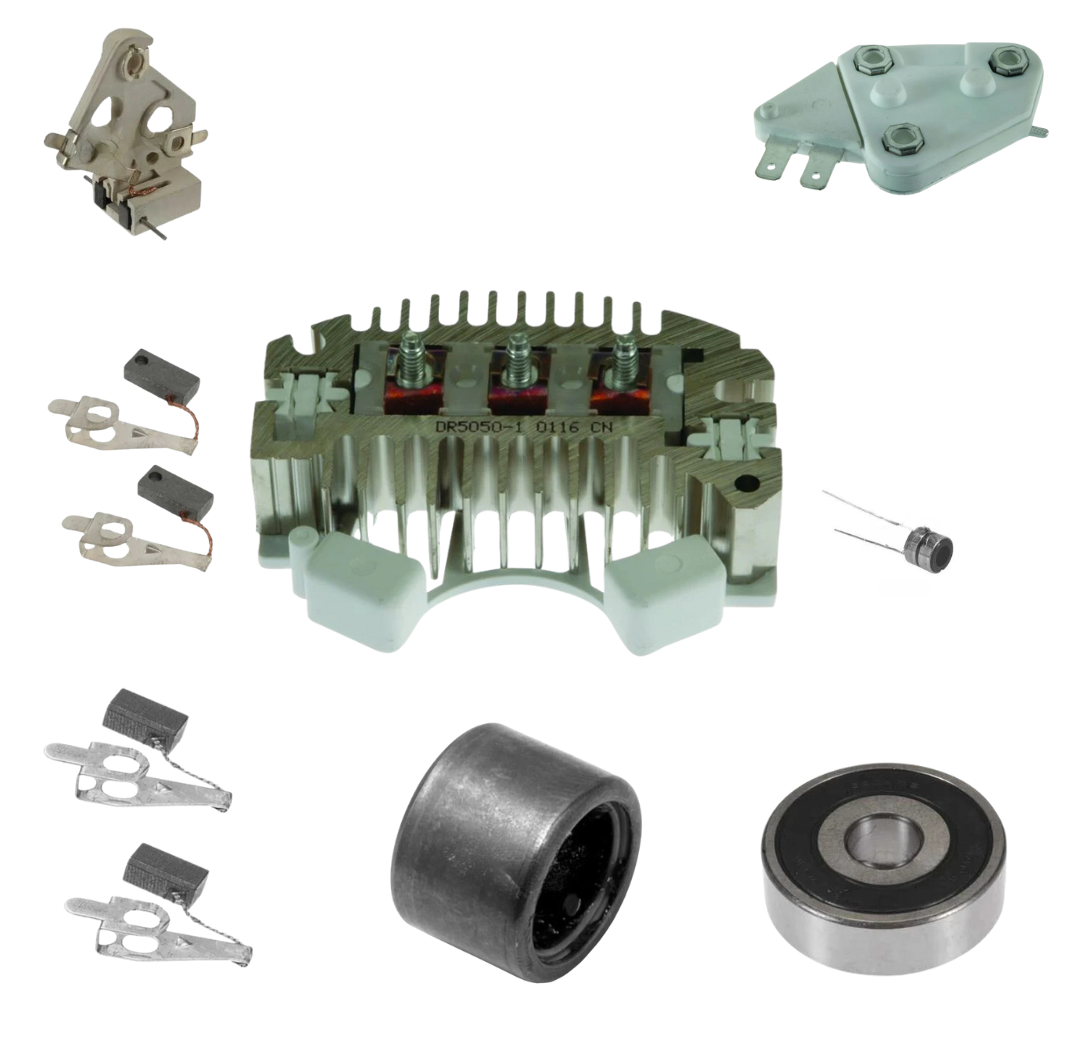

INCLUDED IN REBUILD KIT:
Bearing DE
Brushes 1
Brushes 2
Slip Ring
NOT INCLUDED IN REBUILD KIT:
Battery Terminal
Battery Terminal Kit
Bearing Retainer
Bracket
Capacitor
Clip
Diodes Trio
Frame DE
Frame SRE
Insulator
Insulator 2
Pin
Plug Adapter
Pulley
Rotor
Repair Harness
Screw
Screw 2
Screw 3
Screw 4
Screw 5
Spacer 1
Stator
Thru Bolt
Washer Plain
Specifications
- MFR:DELCO
- Mfr Series:12SI
- AMPERAGE:94
- DESIGN:IR/EF
- DIM 1:M8 x 1.25 Adj. Ear
- FEATURE 1:100% New
- NOTE 1:Neg. Grd.
- NOTE 2:3-Wire System
- PLUG CLOCK:03:00 Plug Clock
- PLUG CODE:151
- PULLEY CLASS:V1
- ROTATION:CW
- SPECS FOR:Delco 12SI Series IR/EF
- SPECS:94 Amp/12 Volt, CW, Neg. Grd., 1-Groove Pulley, 03:00 Plug Clock, 3-Wire System
- VOLTAGE:12
USED ON
- Buick (1983-1987) ** Cadillac (1985-1986) ** Chevrolet (1983-1991) ** GMC (1983-1991) ** Oldsmobile (1982-1987) ** Pontiac (1983-1987)
Replaces
- Chrysler 8134664, 8982775005, JR775005, Delco 10463055, 10463056, 10463057, 10463058, 10463059, 10463397, 10495418, 10495421, 10495422, 10495428, 10495433, 10495434, 10495435, 10497079, 1100200, 1100206, 1100208, 1100217, 1100239, 1100247, 1100249, 1100250, 1100251, 1100252, 1100263, 1100273, 1100275, 1100298, 1101156, 1101157, 1101240, 1101243, 1101301, 1101307, 1101332, 1101333, 1105034, 1105058, 1105059, 1105060, 1105081, 1105083, 1105182, 1105432, 1105441, 1105442, 1105506, 1105507, 1105521, 1105523, 1105545, 1105555, 1105576, 1105582, 1105597, 1105598, 1105599, 1105602, 1105610, 1105611, 1105621, 1105623, 1105624, 1105627, 1105630, 1105631, 1105633, 1105635, 1105647, GM 10463055, 10463056, 10463057, 10463058, 10463059, 10495422, 10495433, 10495434, 10495435, 10497079, 1100250, 1101307, 1105647, Jeep-Eagle 8134664, 8982775005, JR775005
LESTER NUMBERS
- 7272-3, 7273-3, 7294-3
