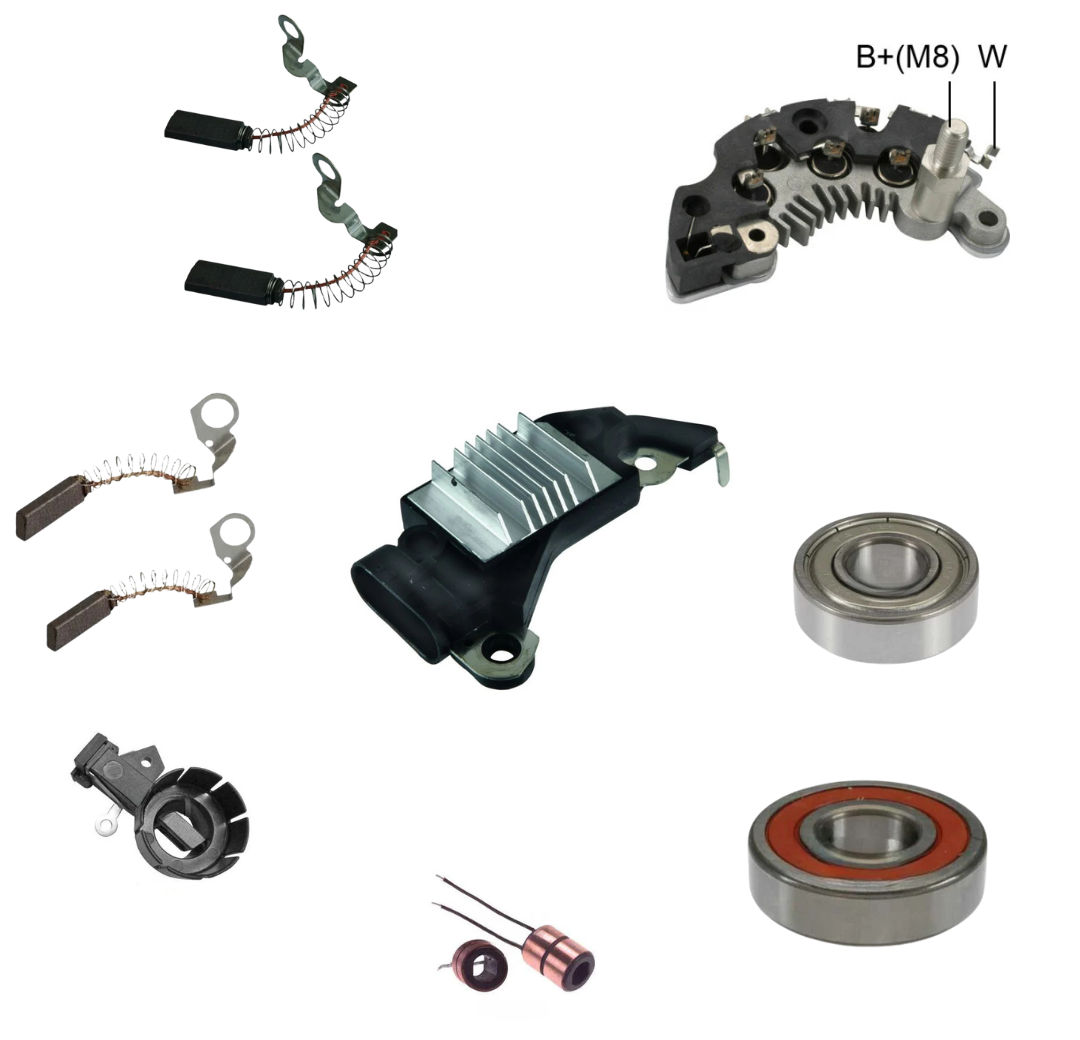

INCLUDED IN REBUILD KIT:
Bearing DEF
Bearing SRE
Brushes
Brushes Holder Assembly
Slip Ring
Rectifier
Specifications
- MFR:DELCO
- Mfr Series:CS130D
- AMPERAGE:102
- DESIGN:IR/IF
- FEATURE 1:100% New
- FEATURE 2:OE performance output curve
- FEATURE 3:WAI-Transpo premium rectifier featuring press-fit avalanche diodes
- FEATURE 4:WAI-Transpo premium regulator with 20A MOSFET field transistor
- FEATURE 5:Premium, hi-temperature WBD bearings
- FEATURE 6:Hi-temperature class-H windings
- FEATURE 7:Precision CNC machined castings
- PLUG CLOCK:05:00 Plug Clock
- PLUG CODE:313
- PULLEY CLASS:S6
- ROTATION:CW
- SPECS FOR:Delco CS130D IR/IF
- SPECS:102 Amp/12 Volt, CW, 6-Groove Pulley, 05:00 Plug Clock
- VOLTAGE:12
USED ON
- Chevrolet (1998-2002) ** Pontiac (1998-2002)
Replaces
- Delco 10464070, 10464402, 10464407, 10480308, 10480342, 10480343, GM 10464070, 10464407
LESTER NUMBERS
- 8242-5
