Aftermarket Delco Alternator Rebuild Kit 8172-7RK
Click to zoom in
Load image into Gallery viewer, Aftermarket Delco Alternator Rebuild Kit 8172-7RK

Aftermarket Delco Alternator Rebuild Kit 8172-7RK

Delco
8172-7RK
Out of stock
Rebuild Kit
$90.00
Aftermarket Delco Alternator Rebuild Kit 7273-9RK
Aftermarket Delco Alternator Rebuild Kit 7273-9RK
$80.00
Aftermarket Alternator 8172-7N
Aftermarket Alternator 8172-7N
$579.00
Aftermarket Delco Alternator Rebuild Kit 8172-7RK

Shipping

In-stock orders ship out same day or next business day via USPS.

Pre Order

Pre-orders ship out in the order received within 7–21 business days.

Description

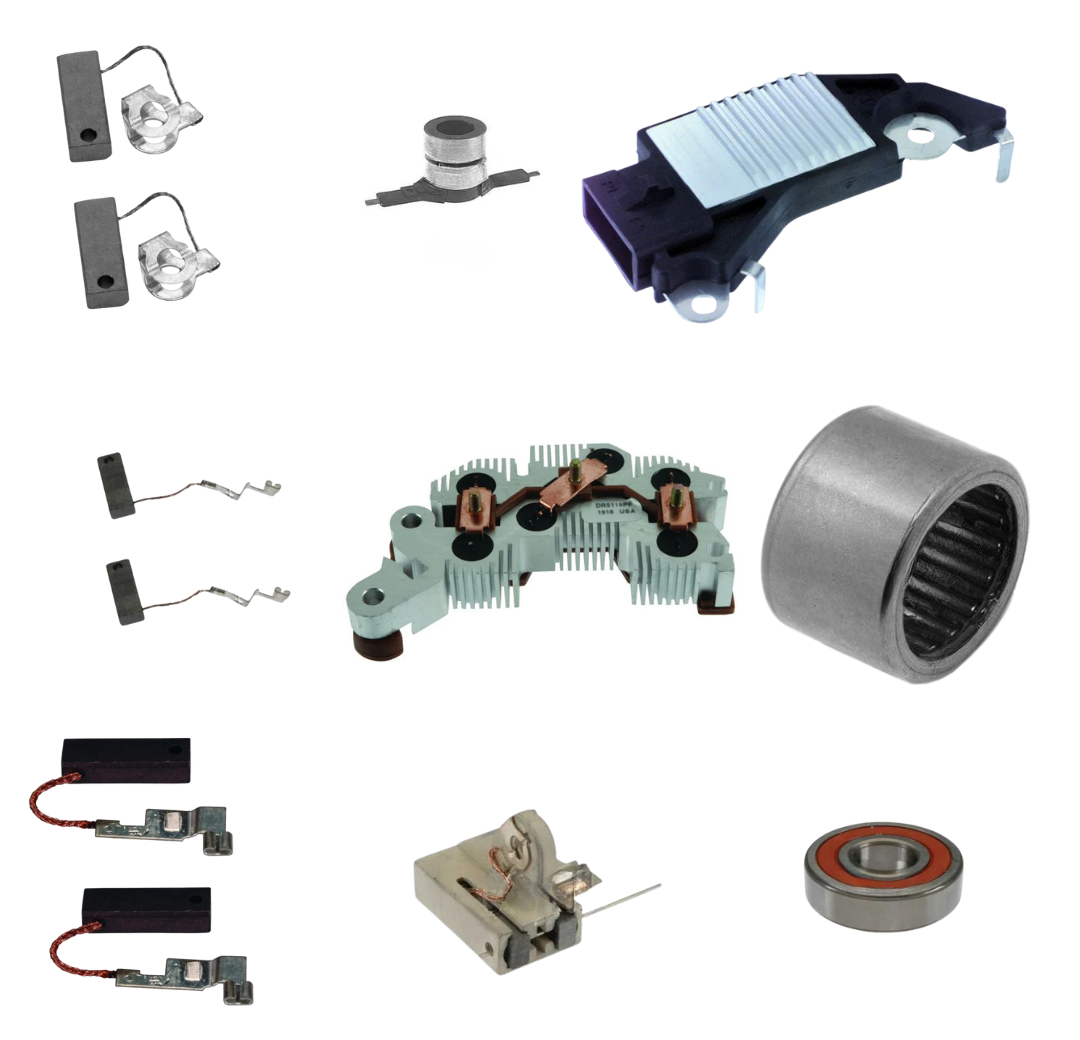

INCLUDED IN REBUILD KIT:

Bearing DE
Brushes 1
Brushes 2
Brushes 3
Brush Holder
Needle Bearing
Rectifier
Slip Ring
Voltage Regulator
NOT INCLUDED IN REBUILD KIT:
Battery Terminal
Bearing Retainer
Brush Spring
Capacitor
Connector
Fan
Frame SRE
Nut 1
Nut 2
Nut 3
Nut 4
Pulley Nut
Repair Harness
Screw 1
Screw 2
Screw 3
Screw 4
Spacer
Stator
Thru Bolt
Washer Lock

Specifications

  • MFR:DELCO
  • Mfr Series:CS144 LATE
  • AMPERAGE:140
  • DESIGN:IR/EF
  • DIM 1:10mm Dia. Unthreaded Adj. Ear
  • FEATURE 1:100% New
  • NOTE 1:310 Plug Code
  • NOTE 2:Neg. Grd.
  • PLUG CLOCK:07:00 Plug Clock
  • PULLEY CLASS:S6
  • PULLEY NOTE:62mm OD
  • ROTATION:CW
  • SPECS FOR:Delco CS144 LATE IR/EF
  • SPECS:140 Amp/12 Volt, CW, 6-Groove Pulley, 07:00 Plug Clock
  • VOLTAGE:12

USED ON

  • Chevrolet (1994-1997) ** Pontiac (1994-1997)

Replaces

  • Delco 10463523, 10463680, 10480111, 10480203, GM 10463523, 10463680

LESTER NUMBERS

  • 8172-7
