Aftermarket Delco Alternator Rebuild Kit 7860-11RK
Click to zoom in
Load image into Gallery viewer, Aftermarket Delco Alternator Rebuild Kit 7860-11RK

Aftermarket Delco Alternator Rebuild Kit 7860-11RK

Delco
7860-11RK
Out of stock
Rebuild Kit
$70.00
Aftermarket Delco Alternator Rebuild Kit 7272-6RK
Aftermarket Delco Alternator Rebuild Kit 7272-6RK
$55.00
Aftermarket Delco Alternator Rebuild Kit 8119-7RK
Aftermarket Delco Alternator Rebuild Kit 8119-7RK
$70.00
Aftermarket Delco Alternator Rebuild Kit 7860-11RK

Shipping

In-stock orders ship out same day or next business day via USPS.

Pre Order

Pre-orders ship out in the order received within 7–21 business days.

Description

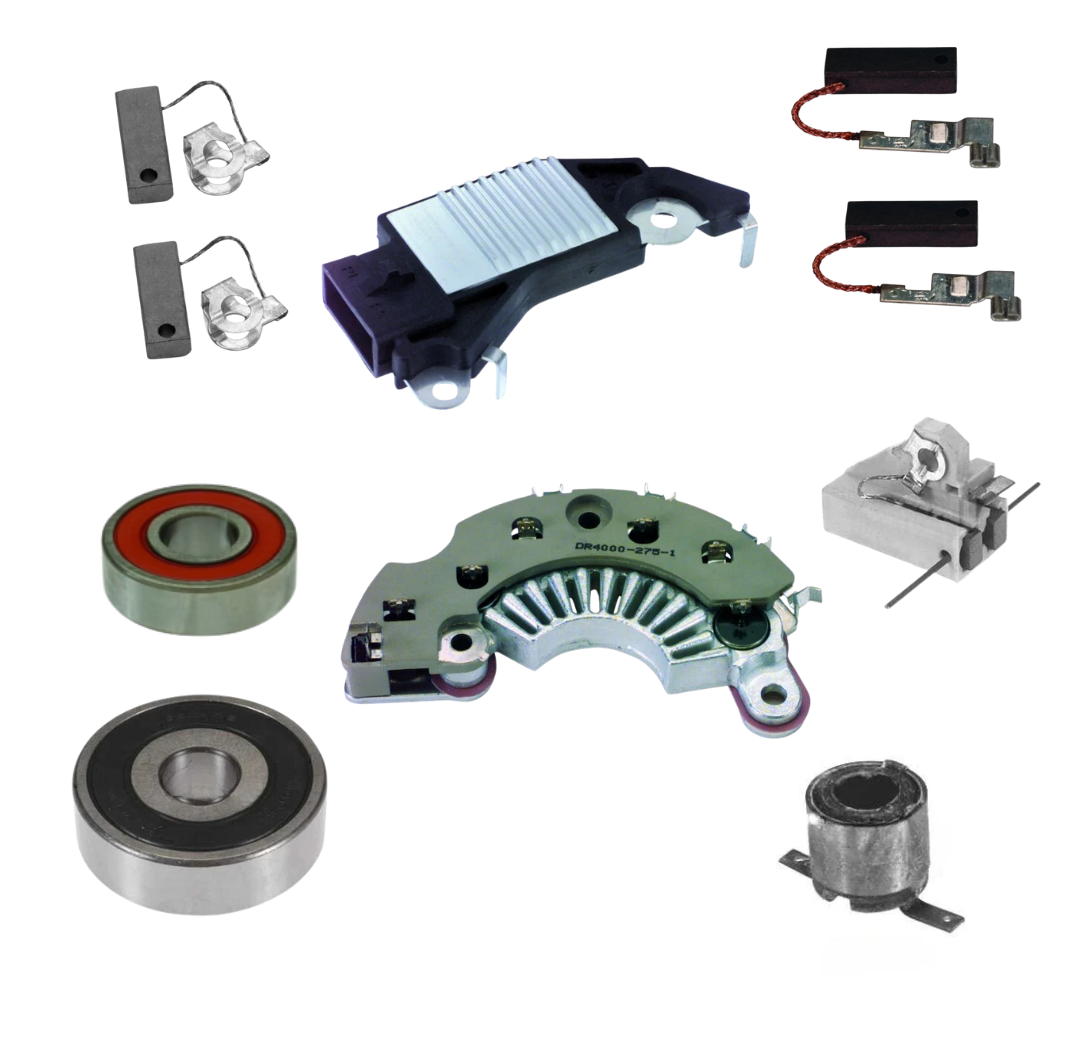

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brushes 1
Brushes 2
Brush Holder
Rectifier
Slip Ring
Voltage Regulator
NOT INCLUDED IN REBUILD KIT:
Baffle SRE
Battery Terminal
Battery Terminal Kit
Bearing Retainer
Brush Spring
Cover
Fan
Frame SRE
Grease, Heat Transfer
Insulator
Nut 1
Nut 2
Pulley Nut
Pin
Rotor
Repair Harness
Screw
Spacer
Spacer 2
Stator
Thru Bolt 1
Thru Bolt 2
Washer Lock

Specifications

  • MFR:DELCO
  • Mfr Series:CS130
  • AMPERAGE:100
  • DESIGN:IR/EF
  • FEATURE 1:100% New
  • ROTATION:CW
  • SPECS FOR:Delco CS130 Series IR/EF
  • SPECS:100 Amp/12 Volt, CW, 6-Groove Pulley, 11:00 Plug Clock
  • VOLTAGE:12

    USED ON

    • Chevrolet (1987-1993) ** GMC (1987-1993)

      Replaces

      • Delco 10463049, 1101346, 1101618, 1105722, GM 10463049, 10463621

      LESTER NUMBERS

      • 7860-11, 7880-11
