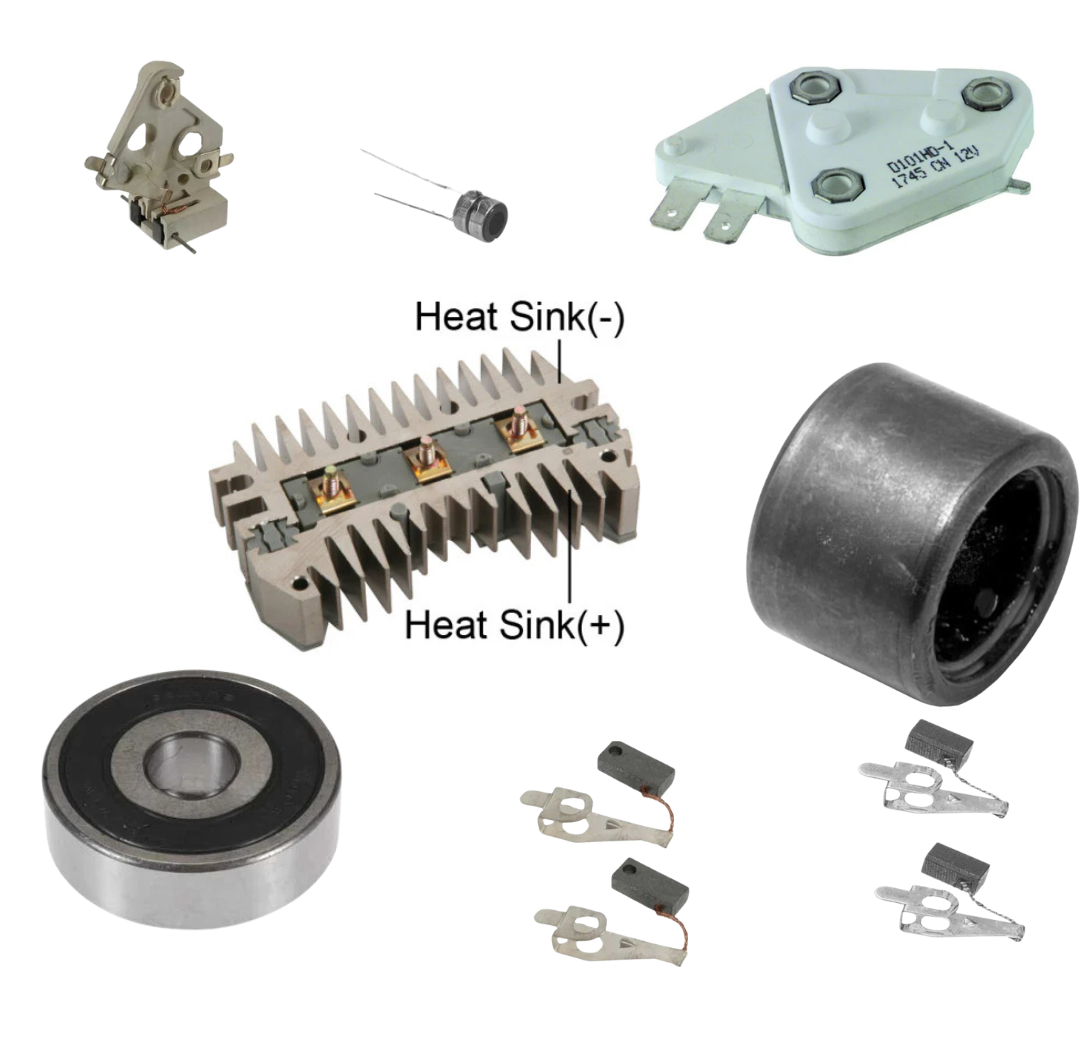

INCLUDED IN REBUILD KIT:
Bearing DE
Brushes 1
Brushes 2
Slip Ring
NOT INCLUDED IN REBUILD KIT:
Bearing Retainer
Bracket
Clip
Diodes Trio
Insulator 1
Insulator 2
Pulley Nut
Nut
Nut 2
Nut 3
Pin
Plug Adapter
Repair Harness
Screw
Screw 2
Screw 3
Screw 4
Stator
Thru Bolt
Thru Bolt
Washer Plain
Specifications
- MFR:DELCO
- Mfr Series:27SI/100
- AMPERAGE:100
- DESIGN:IR/EF
- FEATURE 1:100% New
- NOTE 1:Standard & metric mtg
- PLUG CLOCK:12:00 Plug Clock
- PLUG CODE:151
- PULLEY CLASS:w/o Pulley
- ROTATION:CW
- SPECS FOR:Delco 27SI/Type 100 Series IR/EF
- SPECS:100 Amp/12 Volt, CW, w/o Pulley
- VOLTAGE:12
USED ON
- Buick (1970-1980) ** Cadillac (1972-1985) ** Chevrolet (1973-1990) ** GMC (1973-1990) ** Oldsmobile (1975-1980) ** Pontiac (1970-1980)
Replaces
- Cummins 3604669RX, Delco 10463100, 10463307, 10463308, 1101015, 1101016, 1101017, 1101018, 1101019, 1101020, 1101021, 1101023, 1101024, 1101025, 1101026, 1101027, 1101028, 1101031, 1101032, 1101033, 1101034, 1101035, 1101036, 1101043, 1101046, 1101047, 1101050, 1101059, 1101060, 1101062, 1101063, 1101064, 1101073, 1101090, 1101091, 1101109, 1101178, 1101434, 1101435, 1105345, 1105577, 1105578, 1105637, 1105693, 1105709, 1972724, 1979868, GM 1101050, 1972724, 1979868
LESTER NUMBERS
- 7135, 7135M, 7157M
