Aftermarket Alternator 8113-11N
$550.00

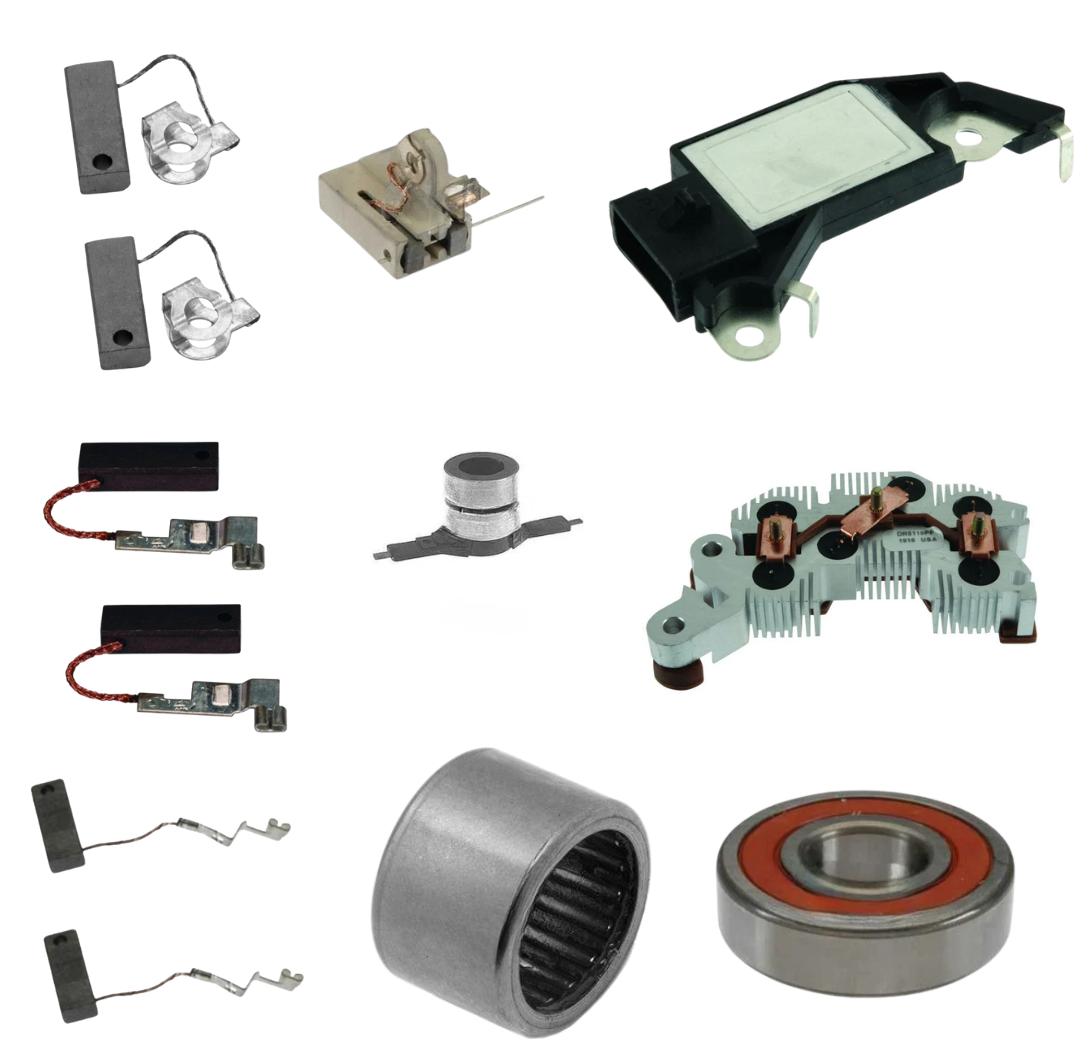

INCLUDED IN REBUILD KIT:
Bearing DE
Brushes 1
Brushes 2
Brushes 3
Brush Holder
Rectifier
Slip Ring
NOT INCLUDED IN REBUILD KIT:
Bearing Retainer
Brush Spring
Capacitor
Connector
Nut
Nut 2
Nut 3
Nut 5
Repair Harness
Screw 2
Spacer
Stator
Thru Bolt
Washer Lock
Specifications
- MFR:DELCO
- Mfr Series:CS144 LATE
- AMPERAGE:140
- DESIGN:IR/EF
- FEATURE 1:100% New
- NOTE 1:309 Plug Code
- PLUG CLOCK:11:00 Plug Clock
- PULLEY CLASS:S6
- PULLEY NOTE:62mm OD
- ROTATION:CW
- SPECS FOR:Delco CS144 LATE IR/EF
- SPECS:140 Amp/12 Volt, CW, 6-Groove Pulley, 11:00 Plug Clock
- VOLTAGE:12
USED ON
- Cadillac (1993-1993) ** Oldsmobile (1995-1999)
Replaces
- Delco 10463366, 10463410, 10463689, 10464078, 10480019, 10480177, 10480282, 1101850, GM 10463366, 10463410, 10463689, 10464078, 10464435, 19244776
LESTER NUMBERS
- 8113-11, 8188-11
