Aftermarket Delco Alternator Rebuild Kit 7860-7RK

Click to zoom in

Load image into Gallery viewer, Aftermarket Delco Alternator Rebuild Kit 7860-7RK

Aftermarket Delco Alternator Rebuild Kit 7860-7RK

Brand: Delco

SKU: 7860-7RK

availability: Out of stock

Product Code: Rebuild Kit

$70.00

Quantity

Quantity must be 1 or more

Shipping

In-stock orders ship out same day or next business day via USPS.

Pre Order

Pre-orders ship out in the order received within 7–21 business days.

Description

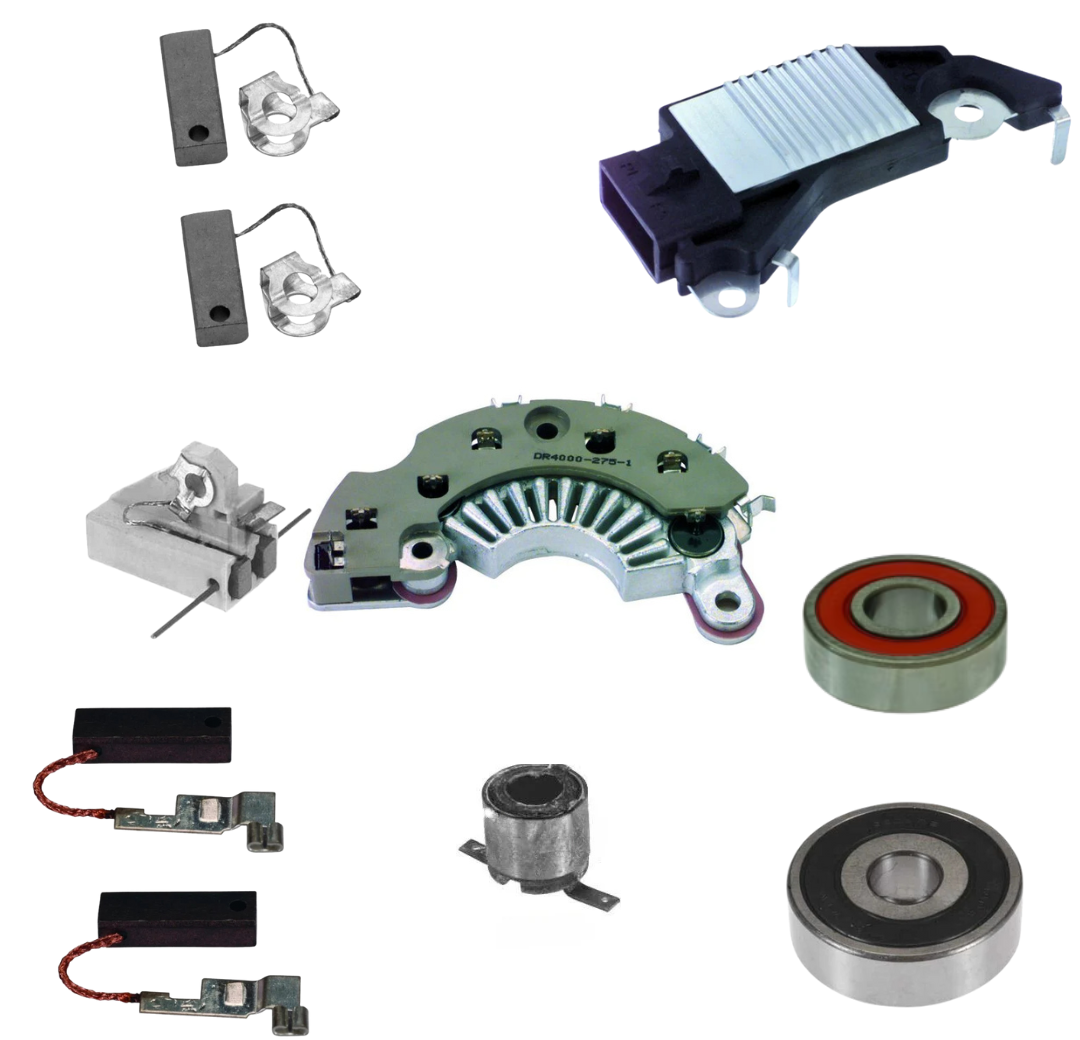

INCLUDED IN REBUILD KIT:

Bearing DE
Bearing SRE
Brushes 1
Brushes 2
Brush Holder
Rectifier
Slip Ring
Voltage Regulator

NOT INCLUDED IN REBUILD KIT:

Baffle SRE
Battery Terminal
Battery Terminal Kit
Bearing Retainer 1
Bearing Retainer 2
Brush Spring
Cover
Fan
Frame SRE
Grease, Heat Transfer
Insulator
Nut 1
Nut 2
Pulley Nut
Pin
Pulley
Rotor
Repair Harness
Screw
Spacer 1
Spacer 2
Stator
Thru Bolt
Washer Lock

Specifications

MFR:DELCO
Mfr Series:CS130
AMPERAGE:105
DESIGN:IR/EF
NOTE 1:310 Plug Code
NOTE 2:Neg. Grd.
PLUG CLOCK:07:00 Plug Clock
PULLEY CLASS:S6
PULLEY NOTE:56mm OD
ROTATION:CW
SPECS FOR:Delco CS130 Series IR/EF
SPECS:105 Amp/12 Volt, CW, 6-Groove/56mm OD Pulley, 07:00 Plug Clock
VOLTAGE:12

USED ON

Buick (1988-1989) ** Cadillac (1987-1988) ** Chevrolet (1987-1994) ** Oldsmobile (1987-1993) ** Pontiac (1987-1994)

Replaces

Delco 10463040, 10463042, 10463101, 10463178, 10463187, 10479903, 10479905, 1101319, 1101612, 1101832, 1101846, 1105694, 1105698, GM 10463040, 10463042, 10463101, 10463178, 10463187

LESTER NUMBERS

7860-7, 7880-7, 7926-7
