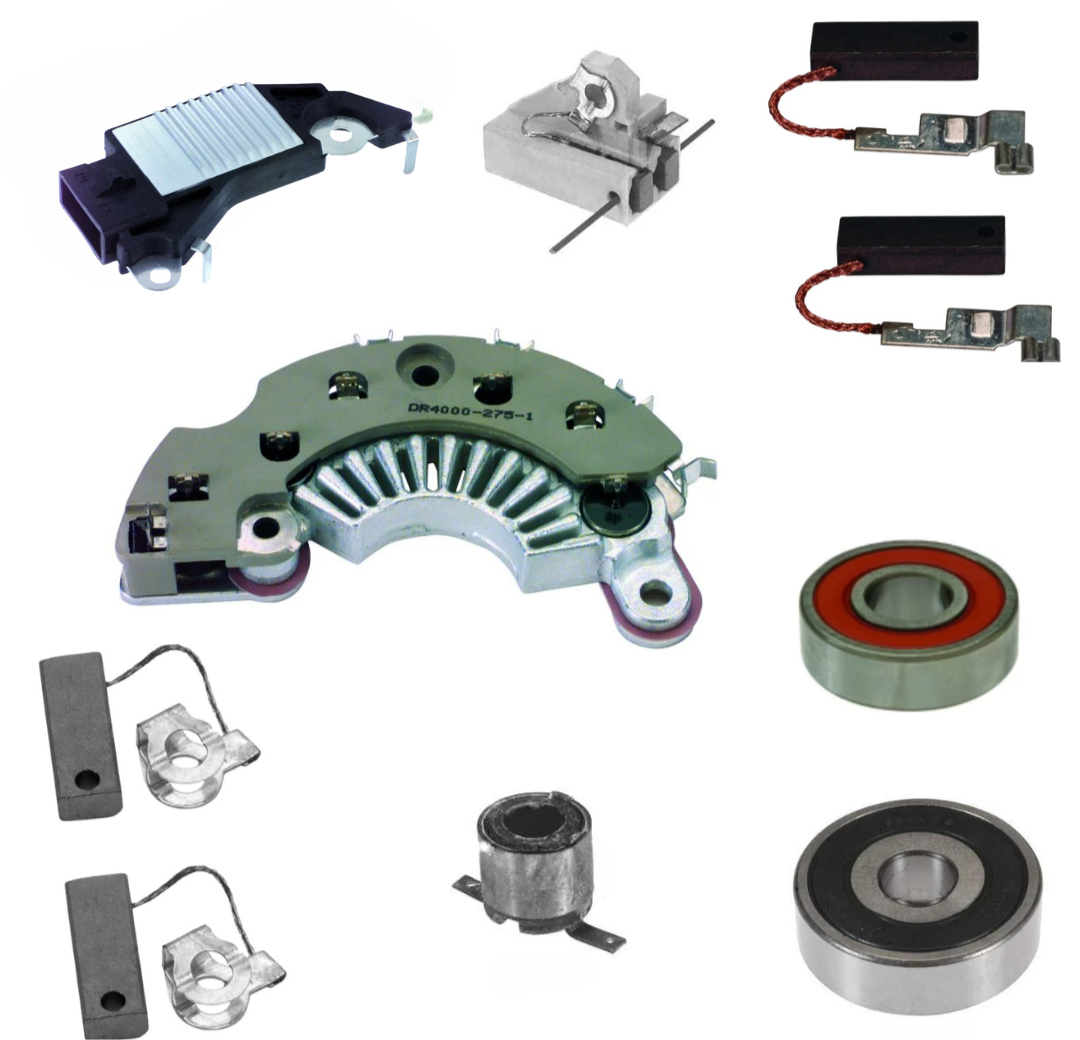

INCLUDED IN REBUILD KIT:
Bearing SRE
Brushes 1
Brushes 2
Brush Holder
Slip Ring
NOT INCLUDED IN REBUILD KIT:
Battery Terminal
Battery Terminal Kit
Bearing Retainer 2
Brush Spring
Cover
Fan
Frame SRE
Insulator
Nut 1
Nut 2
Nut 3
Pulley Nut
Pin
Rotor
Repair Harness
Spacer 1
Spacer 2
Spacer 3
Washer Lock
Specifications
- MFR:DELCO
- Mfr Series:CS130
- AMPERAGE:105
- DESIGN:IR/EF
- FEATURE 1:100% New
- FEATURE 2:OE performance output curve
- FEATURE 3:WAI-Transpo premium rectifier featuring press-fit avalanche diodes
- FEATURE 4:WAI-Transpo premium regulator with 20A MOSFET field transistor
- FEATURE 5:Premium, hi-temperature WBD bearings
- FEATURE 6:Hi-temperature class-H windings
- FEATURE 7:Precision CNC machined castings
- NOTE 1:310 Plug Code
- NOTE 2:Neg. Grd.
- PLUG CLOCK:07:00 Plug Clock
- PULLEY CLASS:S6
- PULLEY NOTE:62mm OD
- ROTATION:CW
- SPECS FOR:Delco CS130 Series IR/EF
- SPECS:105 Amp/12 Volt, CW, 6-Groove Pulley, 07:00 Plug Clock
- VOLTAGE:12
USED ON
- Buick (1986-1988) ** Chevrolet (1990-1990) ** GMC (1990-1990) ** Oldsmobile (1986-1988) ** Pontiac (1986-1988)
Replaces
- Delco 10463005, 10463006, 10463028, 10463085, 10463089, 10463143, 10497120, 10497121, 1101125, 1101126, 1101150, 1101151, 1101184, 1101464, 1105671, 1105672, GM 10463005, 10463006, 10463028, 10463089, 10463143
LESTER NUMBERS
- 7802-7, 7894-7
