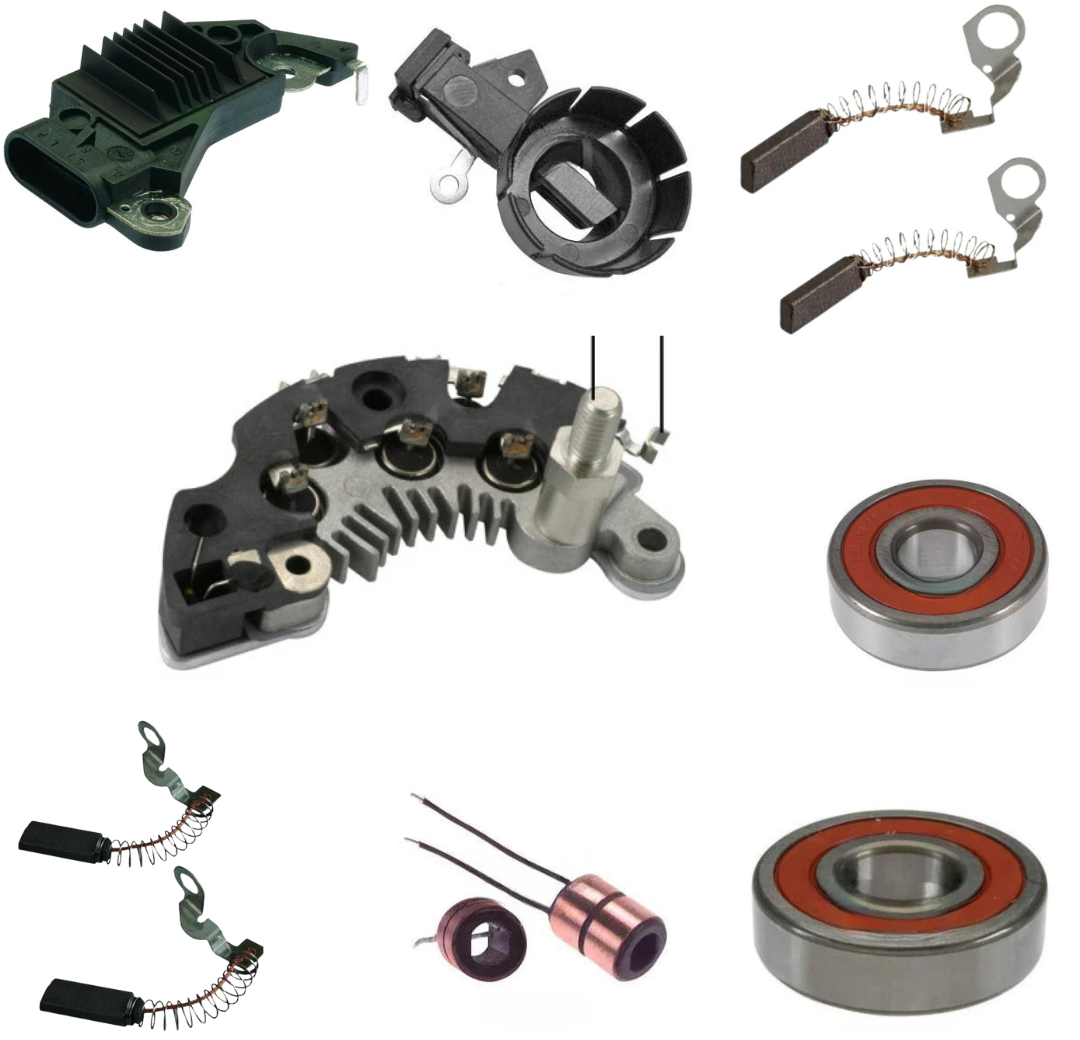

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brushes 1
Brushes 2
Brush Holder
Rectifier
Slip Ring
Voltage Regulator
NOT INCLUDED IN REBUILD KIT:
Bearing Retainer
Cover
Grease, Heat Transfer
Pulley Nut
Pulley
Rotor
Repair Harness
Screw 1
Screw 2
Stator
Thru Bolt
Washer Lock
Specifications
- MFR:DELCO
- Mfr Series:CS130D
- AMPERAGE:105
- DESIGN:IR/IF
- FEATURE 1:100% New
- FEATURE 2:OE performance output curve
- FEATURE 3:WAI-Transpo premium rectifier featuring press-fit avalanche diodes
- FEATURE 4:WAI-Transpo premium regulator with 20A MOSFET field transistor
- FEATURE 5:Premium, hi-temperature WBD bearings
- FEATURE 6:Hi-temperature class-H windings
- FEATURE 7:Precision CNC machined castings
- PLUG CLOCK:11:00 Plug Clock
- PULLEY CLASS:S6
- ROTATION:CW
- SPECS FOR:Delco CS130D IR/IF
- SPECS:105 Amp/12 Volt, CW, 6-Groove Pulley, 11:00 Plug Clock
- VOLTAGE:12
USED ON
- Buick (1996-1996) ** Chevrolet (1995-1999) ** Pontiac (1995-1999)
Replaces
- Delco 10463630, 10463966, 10464073, 10464075, 10464409, 10480065, 10480182, 10480240, 10480262, 10480264, 10480307, GM 10464073, 10464075, 10464409
LESTER NUMBERS
- 8200-11, 8224-11
