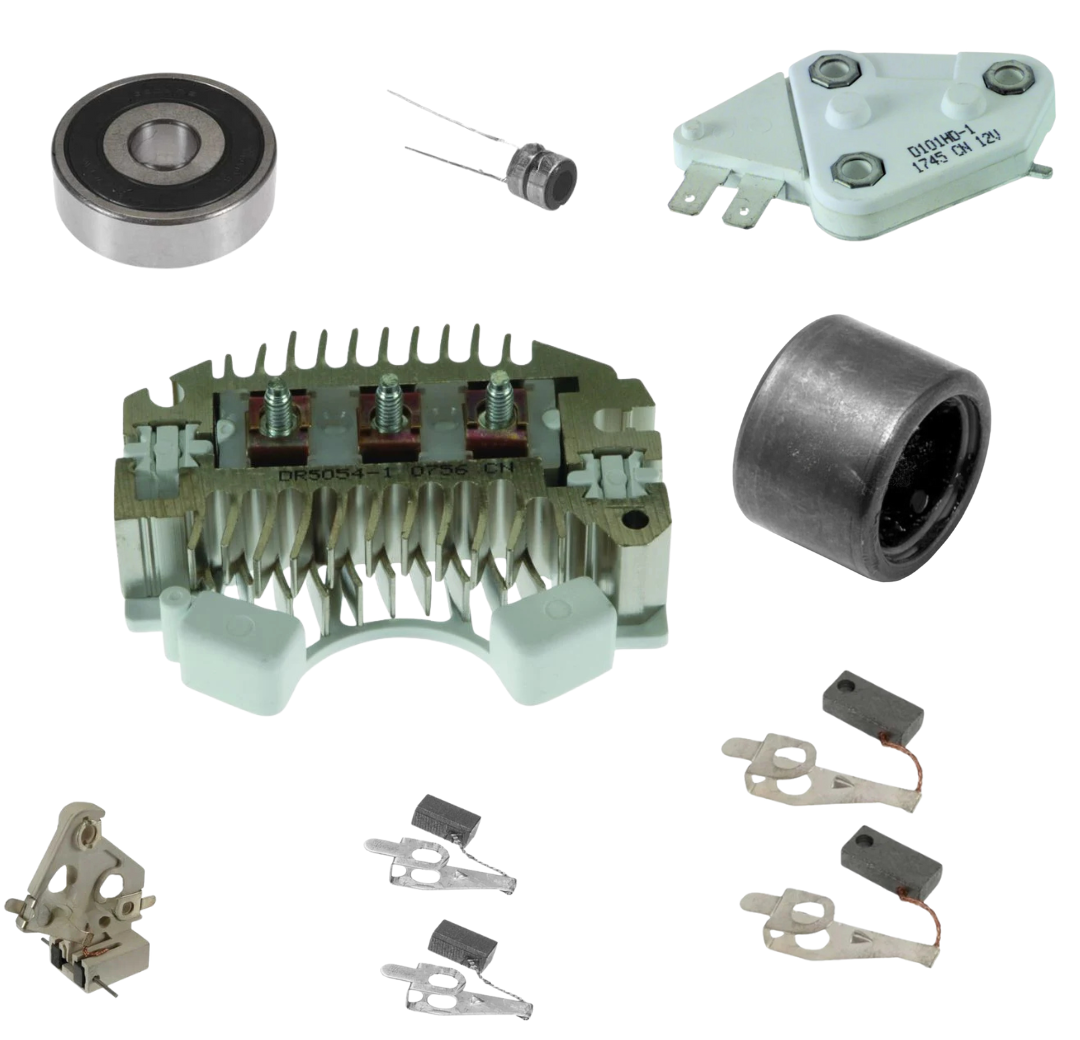

INCLUDED IN REBUILD KIT:
Bearing DE
Brushes 1
Brushes 2
Brush Holder
Needle Bearing
Rectifier
Slip Ring
Voltage Regulator
NOT INCLUDED IN REBUILD KIT:
Battery Terminal
Battery Terminal Kit
Bearing Retainer
Brush Spring
Bracket
Capacitor
Clip
Diodes Trio
Fan
Frame DE
Frame SRE
Insulator 1
Insulator 2
Nut
Nut 2
Nut 3
Nut 4
Pulley Nut
Plug Adapter
Rotor
Repair Harness
Screw 1
Screw 2
Screw 3
Screw 4
Screw 5
Spacer
Stator
Thru Bolt
Washer Lock
Washer Plain
Specifications
- MFR:DELCO
- Mfr Series:12SI
- AMPERAGE:94
- DESIGN:IR/EF
- FEATURE 1:100% New
- NOTE 1:151 Plug Code
- NOTE 2:Neg. Grd.
- PLUG CLOCK:09:00 Plug Clock
- PLUG CODE:151
- PULLEY CLASS:V1
- ROTATION:CW
- SPECS FOR:Delco 12SI Series IR/EF
- SPECS:94 Amp/12 Volt, CW, Neg. Grd., 1-Groove Pulley
- VOLTAGE:12
USED ON
- American Motors (1983-1988) ** Buick (1983-1987) ** Chevrolet (1983-1992) ** GMC (1983-1992) ** Godwin (1995-2000) ** Jeep (1983-1991) ** Oldsmobile (1983-1986) ** Pontiac (1983-1987) ** Sullair (1986-1992)
Replaces
- Chrysler 8134664, 83505104, 8982775005, JR775005, Delco 10463058, 10463397, 10463655, 10495425, 10495426, 10495427, 10497076, 10497081, 10497425, 1100207, 1100209, 1100240, 1100242, 1100288, 1100289, 1100290, 1100291, 1100299, 1100300, 1101300, 1101484, 1105022, 1105044, 1105045, 1105046, 1105082, 1105084, 1105091, 1105092, 1105183, 1105245, 1105372, 1105444, 1105446, 1105447, 1105449, 1105511, 1105543, 1105544, 1105580, 1105588, 1105590, 1105592, 1105600, 1105603, 1105652, 1105653, 1105654, 1105674, 1105675, 1105676, 1105707, 1105708, GM 10495427, 10497076, 10497081, 19135710, 19135756, 88864400, Hyster 3002927, 304252, 304253, Jeep-Eagle 8134664, 83505104, 8982775005, JR775005
LESTER NUMBERS
- 7272-9, 7273-9, 7294-9
