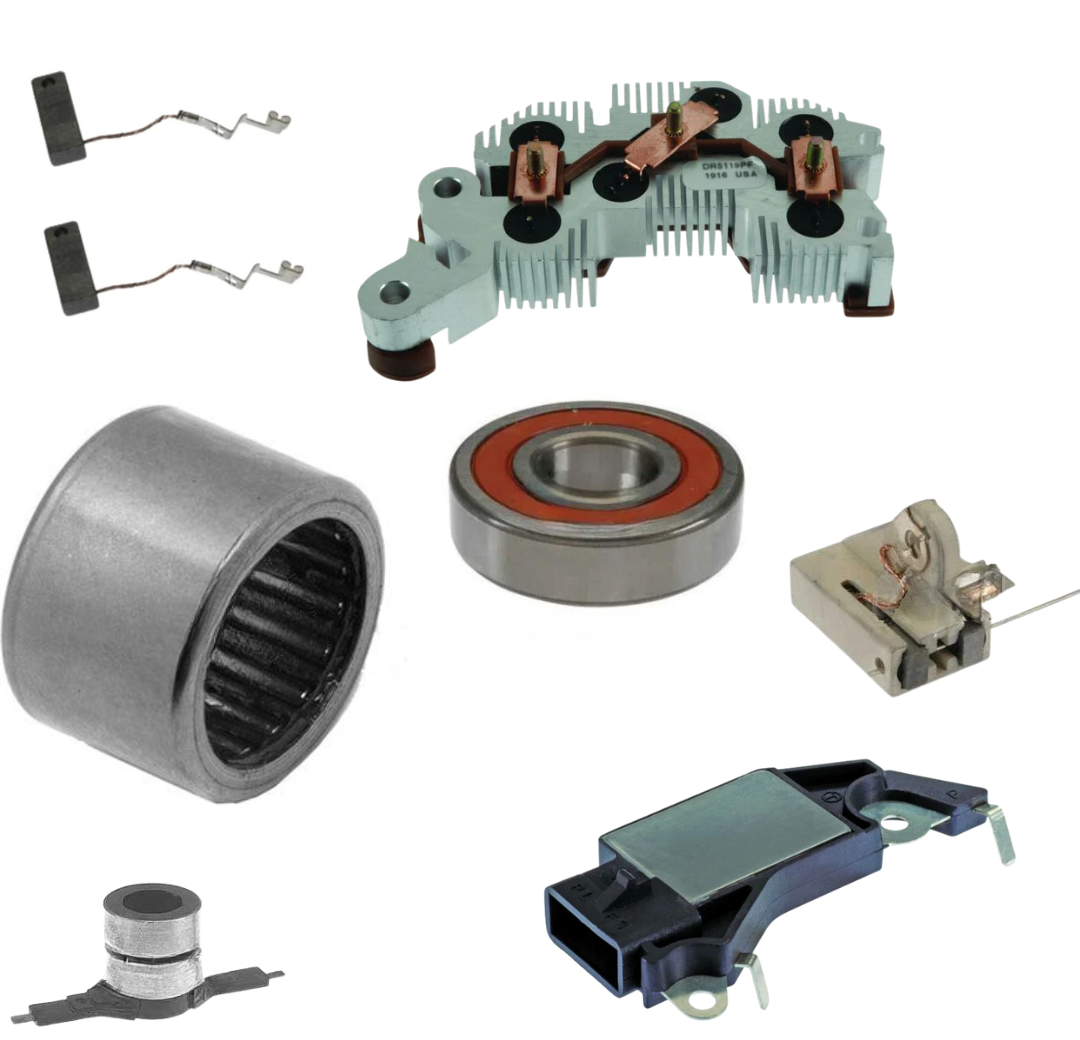

INCLUDED IN REBUILD KIT:
Bearing DE
Brushes 1
Brushes 2
Brush Holder
Rectifier
Slip Ring
Voltage Regulator
NOT INCLUDED IN REBUILD KIT:
Brush Spring
Capacitor
Connector
Frame SRE
Nut 1
Pulley Nut
Repair Harness
Screw 2
Screw 3
Spacer
Stator
Thru Bolt
Specifications
- MFR:DELCO
- Mfr Series:CS144 LATE
- AMPERAGE:140
- DESIGN:IR/EF
- FEATURE 1:100% New
- NOTE 1:310 Plug Code
- NOTE 2:Neg. Grd.
- PLUG CLOCK:05:00 Plug Clock
- PULLEY CLASS:S6
- PULLEY NOTE:62mm OD
- ROTATION:CW
- SPECS FOR:Delco CS144 LATE IR/EF
- SPECS:140 Amp/12 Volt, CW, 6-Groove Pulley, 05:00 Plug Clock
- VOLTAGE:12
USED ON
- Buick (1994-1995) ** Oldsmobile (1994-1995) ** Pontiac (1994-1995)
Replaces
- Delco 10463625, 10480171, GM 10463625
LESTER NUMBERS
- 8192-5
