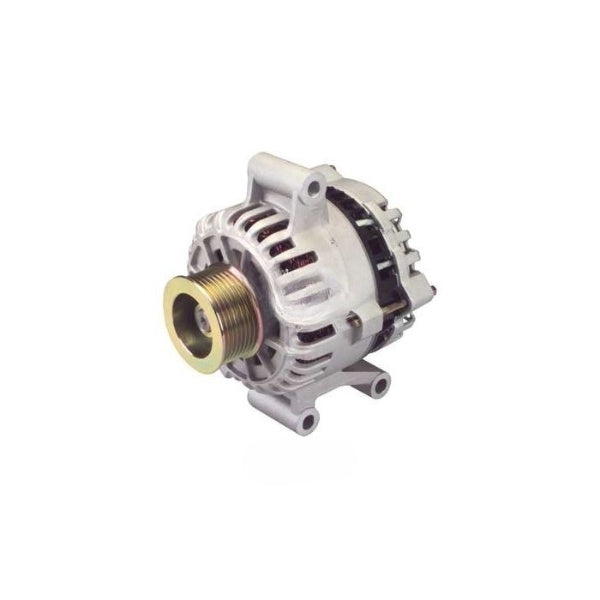

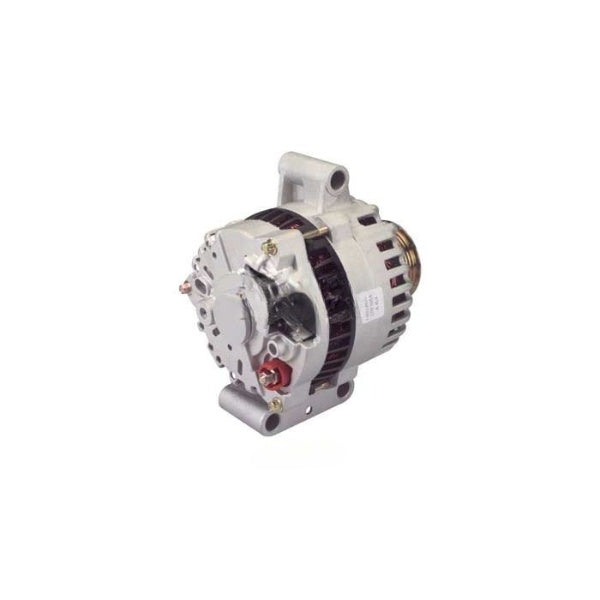

Aftermarket Alternator 8316N

Brand: Ford

SKU: 8316N

availability: Out of stock

Product Code: Alternator

$450.00

Quantity

Quantity must be 1 or more

In-stock orders ship out same day or next business day via USPS.

Pre-orders ship out in the order received within 7–21 business days.

Rebuild Kit & Parts Breakdown

MFR:FORD
Mfr Series:6G
AMPERAGE:110
DESIGN:IR/IF
FEATURE 1:100% New
FEATURE 2:WAI-Transpo rectifier features 13mm press-fit avalanche diodes w/ crimp-weld diode terminations
FEATURE 3:Premium, hi-temperature WBD bearings
FEATURE 4:Hi-temperature class-H windings
FEATURE 5:Precision CNC machined castings
FEATURE 6:OE performance output curve

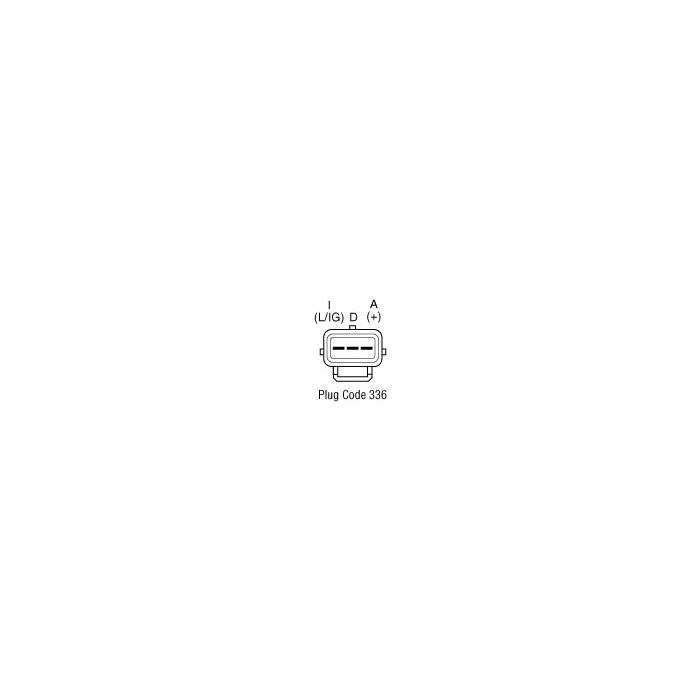

NOTE 1:336 Plug Code
NOTE 2:Neg. Grd.
NOTE 3:With avalanche diodes
NOTE 4:Will replace Ford F81U-10300-EB, F81Z-10346-EA Alternators w/o avalanche diodes (Lester 7796)
NOTE 5:Representative image, actual item may vary
PLUG CLOCK:03:00 Plug Clock
PULLEY CLASS:S8
PULLEY NOTE:64mm OD
ROTATION:CW
SPECS FOR:Ford 6G Series IR/IF
SPECS:110 Amp/12 Volt, CW, 8-Groove Pulley, 03:00 Plug Clock
VOLTAGE:12

Ford 2C3U-10300-BB, 2C3U-10300-BC, 2C3Z-10346-BA, 2C3Z-10346-BARM, 2C3Z-10346-BB, 2C3Z-10V346-BBRM, 4U2Z-10V346-CARM, Ford Engineering 2C3U-BB, 2C3U-BC, Visteon FD
