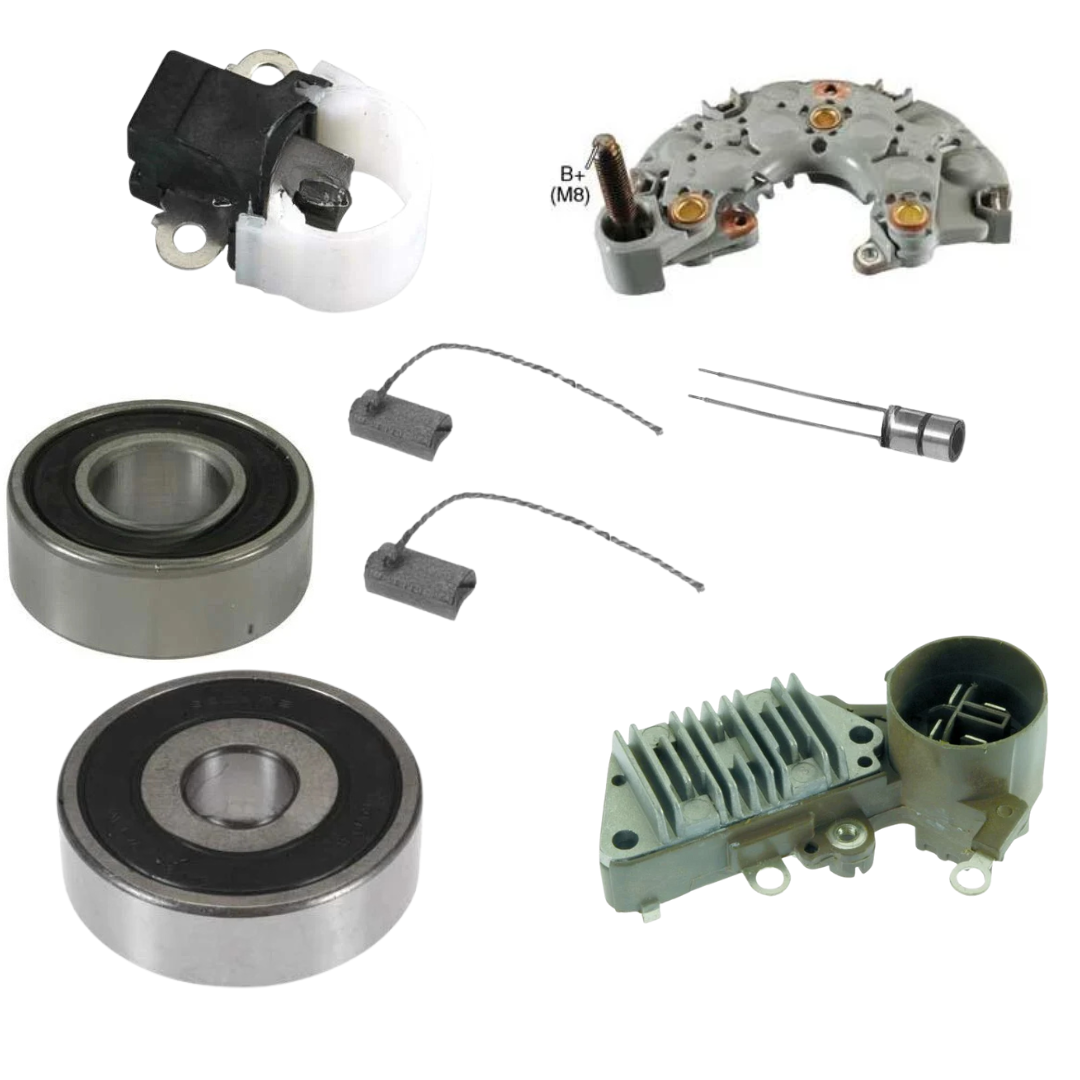

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brush Holder
Brushes
Rectifier
Slip Ring
Voltage Regulator
NOT INCLUDED IN REBUILD KIT:
Bearing Cover
Bearing Retainer
Connector
Diodes Negative
Diodes Positive
Ground Stud
Insulator 1
Insulator 2
Nut 1
Nut 2
Nut 3
Pulley
Pulley Nut
Repair Harness
Rotor
Screw 1
Screw 2
Screw 3
Screw 4
Seal 1
Seal 2
Seal 3
Spacer
Stator
Thru Bolt
Washer Ring
Specifications
- MFR:DENSO
- AMPERAGE:110
- DESIGN:IR/IF
- FEATURE 1:100% New
- PLUG CLOCK:12:00 Plug Clock
- PLUG CODE:290
- PULLEY CLASS:S5
- ROTATION:CW
- SPECS FOR:Denso IR/IF
- SPECS:110 Amp/12 Volt, CW, 5-Groove Pulley
- VOLTAGE:12
USED ON
- Acura (1991-1995) ** Honda - Europe (1991-1996)
VEHICLE APPLICATION
|
Acura Car |
Legend V6 3.2L 3206cc 1991-1995 |
|
Honda - Europe Car |
Legend 3200, V6, C32A 1991-1996 |
LESTER NUMBERS
- 13387
Replaces
- Acura 31100-PY3-003, 31100-PY3-003RM, 31100-PY3-013, CLB18, Denso 100211-6170, 9760211-617, Honda 31100-PY3-003, 31100-PY3-003RM, 31100-PY3-013, CLB18
