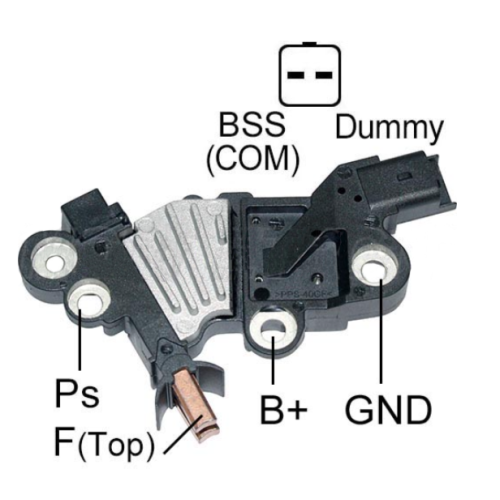

Aftermarket Bosch Voltage Regulator IB5293

Specifications

• MFR: BOSCH
• FEATURE 1: 100% New
• NOTE 1: BSS
• SPECS FOR: Bosch IR/IF
• SPECS: 12 Volt

Used On

• Mini (2007-2009)

Lester Numbers

11336

Replaces

Bosch: F 00M 346 035, F 00M 346 065
Original Reference Number: 4047024282513, IA7245BOSCH

Vehicle Application

Citroen - Europe Car
Berlingo 1.6 [5FS(EP6C)] 2009–2016
Berlingo 1.6 VTi 120 [5FS(EP6C)] 2009–2016
C4 1.6 THP 140 [EP6DT] 2008–2016
C4 1.6 THP 150 [EP6DT] 2008–2016
C5 1.6 16V X7 [5FV(EP6CDT)] 2009–2016

Mini - Europe Car
Clubman Cooper S 1.6 [N18B16A] 2010–2014
Clubman Cooper 1.6 [N12B16A] 2007–2016
Cooper S 1.6 [N14B16A] 2006–2013
Cooper S 1.6 [N18B16A] 2007–2016
Cooper 1.6 [N12B16..] 2006–2016
Cooper 1.6 [N16B16A] 2010–2016
John Cooper Works 1.6 [N14B16C] 2008–2013

Mini Car
Cooper L4 1.6L 1598cc N12B16A 2007–2009

Peugeot - Europe Car
207 CC 1.6 16V Turbo [EP6CDT] 2009–2016
207 SW 1.6 16V [5FY(EP6DTS)] 2007–2016
3008 1.6 2009–2016
3008 1.6 i [EP6CDT] 2009–2016
3008 1.6 i THP 150 [5FX(EP6DT)] 2009–2016
3008 1.6 THP [5FV(EP6DT)] 2009–2016
3008 1.6 VTi [5FW(EP6)] 2009–2016
308 CC 1.6 16V [5FT(EP6DT)] 2009–2016
308 CC 1.6 16V [5FV(EP6CDT)] 2009–2016
308 SW 1.6 16V [5FT(EP6DT)] 2007–2016
308 SW 1.4 16V [8FS(EP3)] 2009–2016
308 SW 1.6 16V [5FV(EP6CDT)] 2009–2016
508 SW 1.6 THP [5FV(EP6DT)] 2010–2016
508 SW 1.6 VTi [5FS(EP6C)] 2010–2016
850i 1.6 Turbo [EP6DT] 2006–2016
850i 1.6 Turbo 16V [5FX(EP6DT)] 2006–2016
850i 1.4 16V [EP3C] 2007–2016
850i 1.6 16V [5FW(EP6)] 2007–2016
850i 1.6 16V RC [5FY(EP6DTS)] 2007–2016
850i 1.6 16V Turbo [EP6DT] 2007–2016
850i 1.6 i 2007–2016
850i 1.6 i RC 2007–2016
850i 1.6 16V Turbo [5FX(EP6DT)] 2009–2016
Magnum 1.4 16V [EP3] 2007–2016
Magnum 1.4 i 2007–2016
Magnum 1.6 16V [5FT(EP6DT)] 2007–2016
Magnum 1.6 16V [5FX(EP6DT)] 2007–2016
Magnum 1.6 16V [EP6..] 2007–2016
Magnum 1.6 16V [EP6] 2007–2016
Magnum 1.6 16V [5FY(EP6DTS)] 2008–2016
Magnum 1.6 16V [EP6DTS] 2008–2016
Magnum 1.4 16V [8FR(EP3C)] 2009–2016
Magnum 1.6 16V [5FV(EP6CDT)] 2009–2016
Model 1506 1.6 16V [5FV(EP6DT)] 2009–2016
Model 1506 1.6 16V [5FW(EP6)] 2009–2016
Partner I 1.6 [5FS(EP6C)] 2010–2016
Partner Tepee 1.6 [5FS(EP6C)] 2010–2016
RCZ 1.6 16V [5FV(EP6CDT)] 2010–2016
RCZ 1.6 16V [EP6CDTX] 2010–2016
V3500 1.6 THP [5FV(EP6DT)] 2010–2016
V3500 1.6 VTi [5FS(EP6C)] 2010–2016

Features & Benefits

• Precision aftermarket replacement part
• Regulates alternator output voltage
• Helps maintain proper battery charging
• Supports stable charging system performance
• Manufactured to match original specifications
• Designed for dependable long-term operation
• Ideal for alternator rebuilding and repair
• Cross-referenced to OEM and aftermarket part numbers

What Does a Voltage Regulator Do?

The voltage regulator controls the alternator's output by regulating current supplied to the rotor field winding. As electrical demand changes, the regulator continuously adjusts field current to maintain the proper charging voltage for the battery and the vehicle's electrical system.

A properly functioning voltage regulator helps prevent battery overcharging and undercharging while protecting sensitive electrical components from excessive voltage. Because charging system performance depends on the interaction between the regulator, rotor, stator, rectifier, and battery, replacing a faulty regulator is an important step in restoring alternator performance.

Common Signs Replacement Is Needed

Replace the voltage regulator if you notice:

• Battery overcharging
• Battery not charging
• Low charging voltage
• High charging voltage
• Battery warning light illuminated
• Intermittent charging problems
• Headlights that brighten or dim with engine speed
• Charging system failure during testing
• Voltage regulator failure discovered during alternator rebuilding

Installation Recommendations

Installation should be performed by a qualified technician or experienced alternator rebuilder. Before installing the new regulator, inspect the brushes, brush holder, slip rings, rotor, stator, rectifier, wiring, and electrical connections for signs of wear or damage.

Always verify connector configuration and mounting style before installation. After assembly, bench-test the alternator to confirm proper charging voltage and overall charging system performance.

While You're Rebuilding

Inspect other common wear components to help maximize charging system reliability:

• Bearings
• Brushes
• Brush Holder
• Slip Rings
• Rectifier
• Diodes
• Rotor
• Clutch Pulley
• Insulators

Why Buy From RC Auto Electric?

RC Auto Electric specializes in alternator and starter rebuilding components for professional rebuilders, repair shops, automotive technicians, and DIY enthusiasts. Our extensive catalog includes thousands of OEM and aftermarket electrical components backed by accurate cross-reference information to help simplify part identification and reduce ordering mistakes.

Disclaimer

Compatibility information is provided as a reference only. Manufacturing revisions, production changes, and previous rebuilding modifications may affect internal alternator components. Always compare the original part, connector configuration, mounting style, voltage specifications, cross-reference numbers, and product photographs before installation. If you are unsure about compatibility, contact RC Auto Electric before ordering.
