Specifications
- MFR:DENSO
- DIM 1:57.5mm Mtg. Length
- FEATURE 1:100% New
- FEATURE 2:Field Rating 5 Amps
- FEATURE 3:A typical Vsat is 0.4 Volts, @ 5 Amps, 12 Volts
- FEATURE 4:Ignition Activated
- FEATURE 5:Over voltage indication and under voltage indication
- NOTE 1:Standard lamp function - no output.

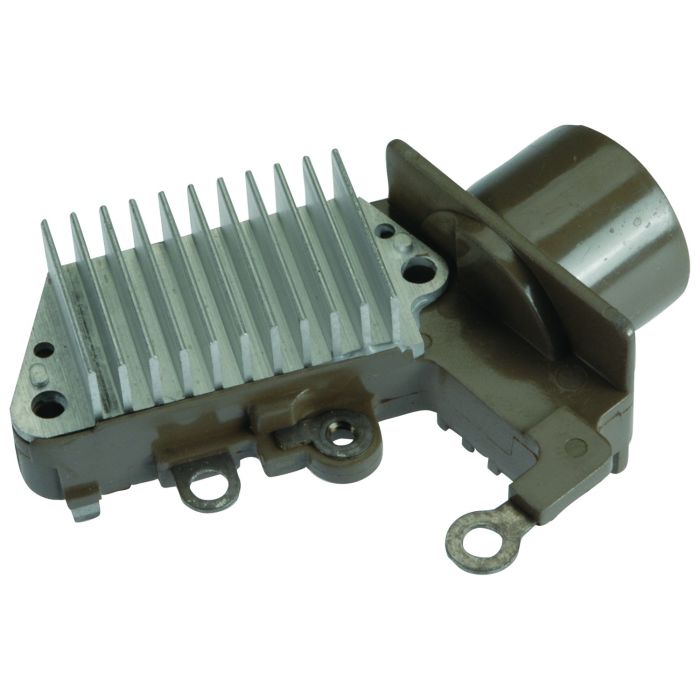

- SPECS FOR:Denso IR/IF Alternators

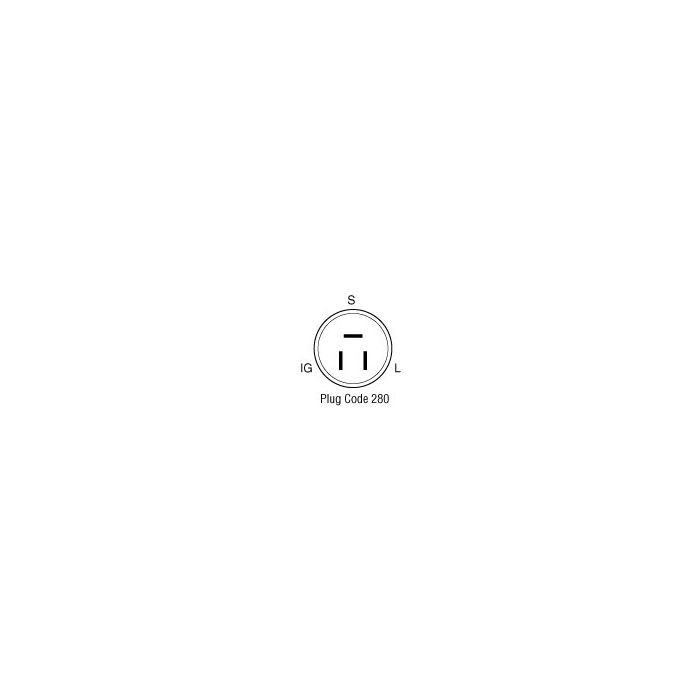

- SPECS:12 Volt, A-Circuit, Low Side Drive Regulator, S-IG-L Terminals, 14.5 Vset
USED ON
- Mercury (1994-2000)
Replaces
- Denso 126000-1770
LESTER NUMBERS
- 12358, 12359
UNIT NUMBERS
- Denso 101211-3020, 101211-3021, 101211-3380; Mercury Marine 821663, 821663-1, 821663-A1, 828506
