Specifications
- MFR:FORD
- FEATURE 1:100% New
- FEATURE 2:Computer controlled voltage regulation
- NOTE 1:Regulation Voltage controlled by vehicle PCM (PWM signal input to RC-terminal).
- NOTE 2:LI-terminal output provides feedback to vehicle PCM.
- NOTE 3:Vehicle indicator lamp is fully controlled by the vehicle PCM.
- NOTE 4:*Replaces Ford VP4F1U-10C359-AA, VP4L3U-10C359-AA white body regulator w/ blue cover.
- SPECS FOR:Ford 6G Series IR/IF Alternators

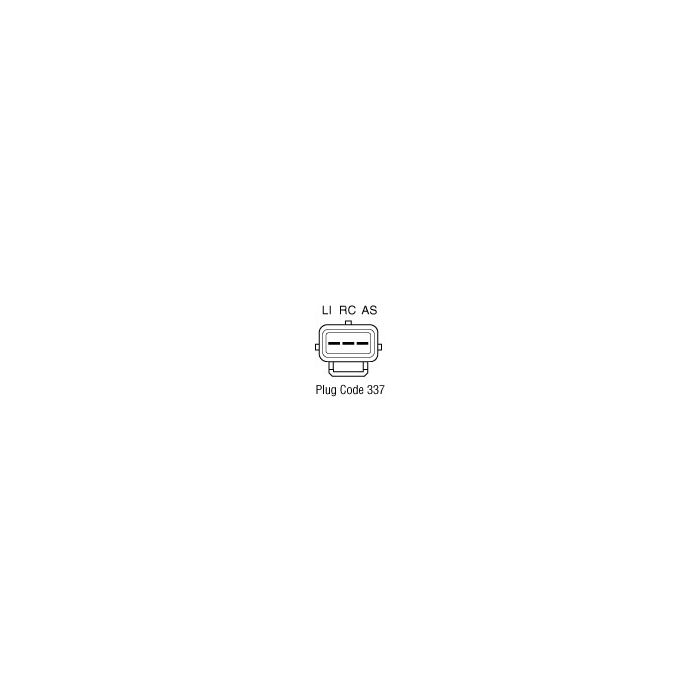

- SPECS:12 Volt, A-Circuit, LI-RC-AS Terminals, 14.0 Vset, White w/ Gray Cover*
USED ON
- Ford (1999-2003)
Replaces
- Ford XW4U-10C359-AB, Visteon ALT-C-160
LESTER NUMBERS
- 23555, 7788, 8253, 8260, 8418, 8521
UNIT NUMBERS
- Ford 1L8U-10300-BB, 1L8U-10300-BC, 1L8Z-10346-BA, 1L8Z-10V346-BBRM, 1S41-10300-AA, 2F1U-10300-CC, 2MSU-10300-AA, 3F1T-10300-AA, 4F1T-10300-AA, 4U2Z-10V346-ALRM, 6F1Z-10346-ARM, RM4U2J10309AMA, XF2U-10300-AB, XF2U-10300-BC, XF2U-10300-BD, XF2U-10300-BE, XF2U-10300-DA, XF2Z-10346-AA, XF2Z-10346-AARM, XF2Z-10346-BA, XF2Z-10346-BARM, XF2Z-10346-D, XF2Z-10V346-ABRM, XF2Z-10V346-ACRM, XF2Z-10V346-BBRM, XS71-10300-LA; Ford Engineering 1L8U-BB, 1L8U-BC, 1S41-AA, 2F1U-CC, 2MSU-AA, 3F1T-AA, 4F1T-AA, RM4U2J-10D309-BAC, XF2U-AB, XF2U-BC, XF2U-BD, XF2U-BE, XF2U-DA, XS71-LA; Visteon CT, CT, CV, DF, DG, DJ, DS, FG, FM, FS
