Specifications
- MFR:DELCO
- FEATURE 1:100% New Heavy Duty ASVR Design
- FEATURE 2:OE compliant functions & performance: current limiting, thermal shutdown, load dump protection, shorted field & lamp circuit protection
- FEATURE 3:Welded construction - no solder joints for hi-temperature reliability & increased field life
- NOTE 1:Designed for DR4402, DR4403 series rectifiers w/ screw down collar.
- SPECS FOR:Delco AD230 Series IR/IF Alternators

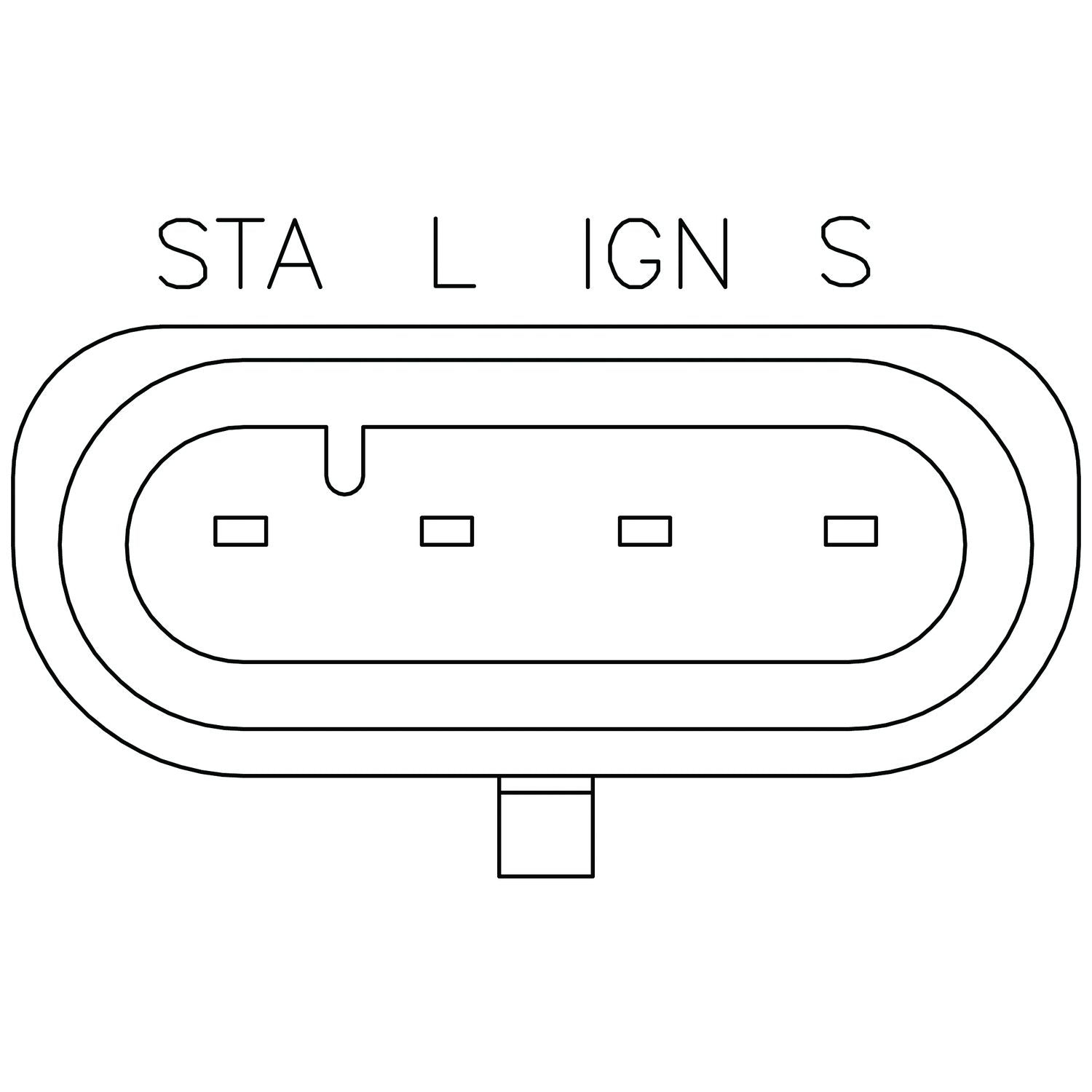

- SPECS:12 Volt, B-Circuit, P-L-I-S Terminals, 14.8 Vset, 2.5 sec. LRC
USED ON
- Cadillac (2002-2002) ** Chevrolet (1999-2004) ** GMC (1999-2002)
Replaces
- Delco 10458201, 10494747, Delco ASVR 10458201, Original Reference Number 4747
LESTER NUMBERS
- 8238
UNIT NUMBERS
- Delco 10480229; Original Reference Number 10480229W
