Aftermarket Alternator Press Fit Diode Negative 32-1050101

If an alternator rectifier has a failed negative diode, weak charging output, excessive AC ripple, or recurring electrical problems, this aftermarket alternator press-fit diode negative 32-1050101 provides a reliable replacement option for professional rebuilding applications.

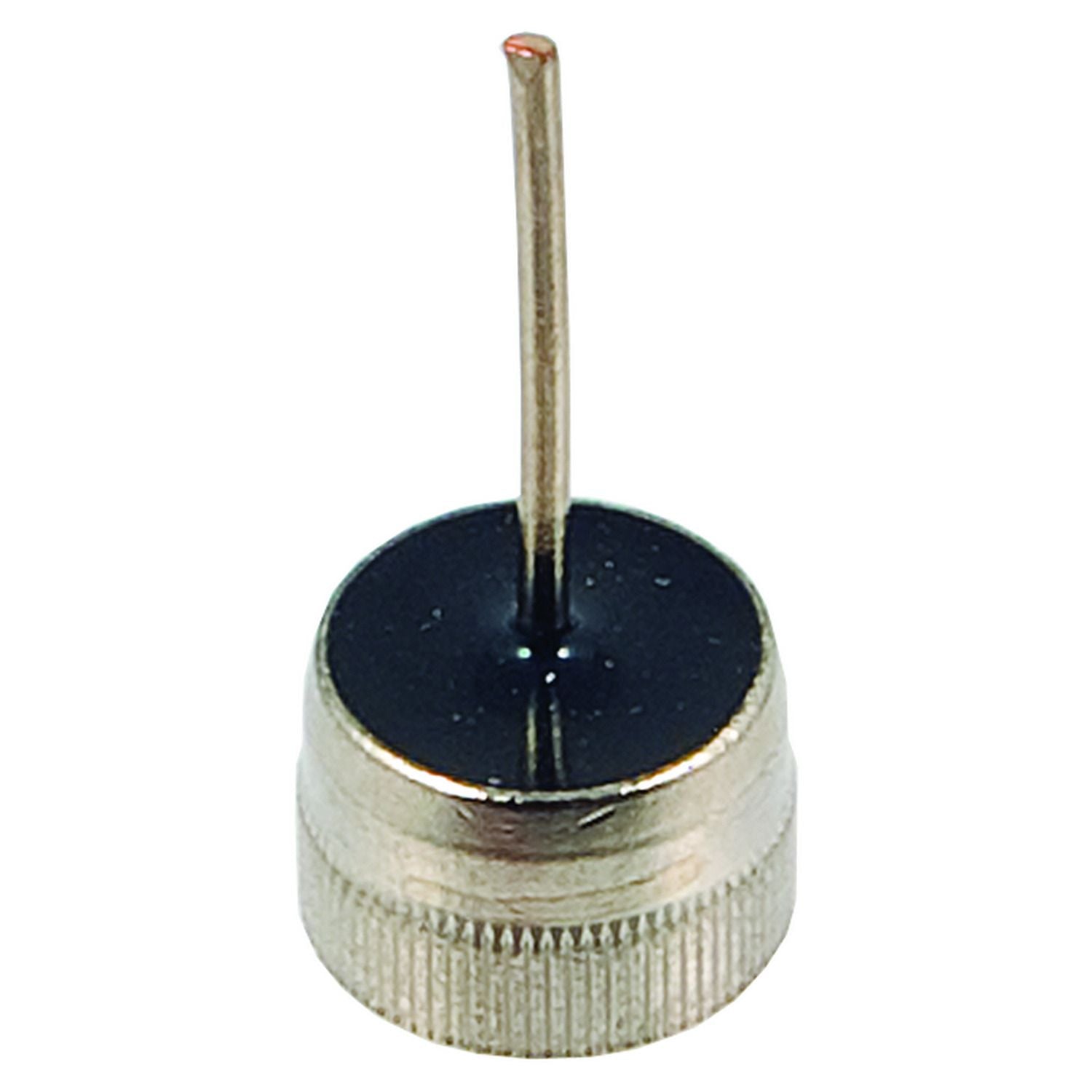

This negative alternator diode is designed with a 50 Amp, 20–24 Volt avalanche rating, a 13mm press-fit body, and a nickel-plated finish for compatible alternator rectifier repair.

🔧 Alternator Press-Fit Diode Negative 32-1050101 Replacement

Built for professional alternator rebuilding and electrical repair, this 100% new negative-polarity diode helps restore proper rectification when its dimensions, polarity, and electrical ratings match the original component.

🔧 Specifications

SPECS: Negative, 50 Amp/20–24 Volt Avalanche, 13mm Press-Fit
POLARITY: Negative
DIM 1: Height: 28.00 ± 0.5mm
DIM 2: Lead: 28mm OAL
NOTE 1: Nickel Plated
FEATURE 1: 100% New

🔢 Lester Numbers

11074, 11912, 13541, 13542, 13815, 13945, 13971

🔁 Replaces

Bosch 0 270 300 056
Original Reference Number 245, 421
Valeo 2807402

🔩 Unit Numbers

Audi, Volkswagen 028 903 359 C, 028-903-359B, 028-903-359C, 028-903-359G, 028-903-359J, 028903359D, 030 903 023 C
BMW 12-31-1-705-483, 12-31-1-705-557, 12-31-7-501-592, 12-31-7-501-687, 12-31-7-508-052, 12-31-7-508-054, 12-31-7-508-258, 12-31-7-508-286, 12411432977, 12411740624, 12411740626
Bosch 0 122 0AA 1H0, 0 122 0AA 1J0, 0 122 468 015, 0 123 500 005, 0 123 510 017, 0 123 545 002, 0 123 545 003, 1 127 011 134, 1 127 319 009, 1 127 319 018, 1 127 319 019, 1 127 319 029, 1 127 319 031, 1 127 319 510, 1 127 319 552, 1 127 319 576, 1 127 319 593, 1 127 319 617, 1 127 319 623, 1 127 319 637, 1 127 319 638, 1 127 319 639, 1 127 319 667, 1 127 319 690, 1 127 319 728, 1 127 319 730, 1 127 319 738, 1 127 319 816, 1 127 320 639, 1 127 320 805, 1 127 320 807, 1 127 320 808, 1 127 320 818, 1 127 320 824, 1 127 320 834, 1 127 320 844, 1 127 320 850, 1 127 320 852, 1 127 320 854, 1 127 320 860, 1 127 320 862, 1 127 320 864, 1 127 320 882
Fiat 9946868
Hyundai 37300-37250
Land Rover YLE000040
Marelli 940038207, 940038355
Mercedes-Benz 000-154-98-16, 001-154-35-16
Original Reference Number 808, 81115650, 818, 850, 860, 9019, 9510, SGH9B029
Valeo 2548363, SG9B025, SG9B029
Volvo 5003919-0, 5003919-7, 5003920, 5003920-0, 5003920-5, 5003971, 5003971-8, 6849755, 6849755-1, 8111117, 8111117-0, 9130273, 9130273-0, 9130273-7, 9130275, 9130275-0, 9130275-2, 9162422, 9447865

⚡ Common Problems This Fixes

• Failed negative diode in the alternator rectifier
• Low or unstable alternator charging output
• Excessive AC ripple in the charging system
• Battery discharge caused by rectifier failure

💎 Why Choose This Alternator Diode

• Negative-polarity 50 Amp avalanche design
• Designed for 20–24 Volt electrical applications
• 13mm press-fit body for compatible rectifier assemblies
• Nickel-plated and supplied as a 100% new component

🇺🇸 USA Shipping

Fast and reliable shipping is available across the United States.

Aftermarket Alternator Press Fit Diode Negative 32-1050101 – Professional Product Overview

Aftermarket Alternator Press Fit Diode Negative 32-1050101 is an aftermarket electrical service component for technicians, alternator rebuilders, repair facilities, and parts buyers seeking an accurately identified negative rectifier diode. This listing is organized around part number 32-1050101, its negative polarity, specified electrical capacity, physical measurements, replacement references, and the product photographs shown above. These identifiers are important because press-fit diodes that appear similar may differ in polarity, current capacity, voltage design, body diameter, lead configuration, height, finish, or intended rectifier assembly.

Part 32-1050101 is specified as a negative-polarity avalanche diode rated at 50 amps for 20–24-volt applications. It uses a 13mm press-fit body, has a listed height of 28.00 ± 0.5mm, and includes a lead measuring approximately 28mm overall. The component is nickel plated and supplied as 100% new. When all of these details agree with the original diode and rectifier design, 32-1050101 may be evaluated for compatible alternator rebuilding, rectifier repair, restoration, or professional replacement inventory.

Why Accurate Part Identification Matters

A reliable alternator repair begins with selecting the correct diode. The rectifier assembly contains positive and negative diodes that control current flow in specific directions. Because 32-1050101 is a negative diode, it should not be substituted for a positive-polarity component simply because the body dimensions appear similar. Installing a diode with the wrong polarity can prevent correct rectification and may lead to charging problems, excessive ripple, heat, or repeat alternator failure.

The 13mm press-fit measurement is equally important. A diode that is too small may not remain securely seated or transfer heat effectively through the rectifier plate. A component that is too large may damage the plate or diode body during pressing. The 50-amp, 20–24-volt avalanche specification must also correspond with the serviced alternator design. Compare the full part number, polarity, measurements, electrical ratings, reference numbers, and photographs before placing an order.

Key Benefits of Choosing the Correct Negative Diode

The value of Alternator Press Fit Diode Negative 32-1050101 begins with its clearly stated electrical and dimensional profile. Its negative polarity, 50-amp capacity, 20–24-volt avalanche rating, and 13mm press-fit construction provide several important comparison points for professional rebuilders. The listed height and lead dimensions allow the component to be checked against the removed diode before installation begins.

The nickel-plated finish and 100% new condition make this diode suitable for rebuilding work where a previously used electrical component is not preferred. The associated Lester, Bosch, Valeo, vehicle manufacturer, and unit references can also support identification research. However, compatibility remains dependent on matching the actual internal rectifier configuration rather than relying on one reference number alone.

Verified Specifications and Product Details

The original listing above provides the controlling specifications for part 32-1050101. It is identified as a negative-polarity, 50-amp avalanche diode for 20–24-volt applications. The diode uses a 13mm press-fit body, has a specified height of 28.00 ± 0.5mm, and includes a lead approximately 28mm in overall length. It is nickel plated and supplied as a 100% new alternator repair component.

Associated Lester references include 11074, 11912, 13541, 13542, 13815, 13945, and 13971. Replacement references include Bosch 0 270 300 056, Original Reference Numbers 245 and 421, and Valeo 2807402. The listing also includes unit numbers associated with Bosch, Audi, Volkswagen, BMW, Fiat, Hyundai, Land Rover, Marelli, Mercedes-Benz, Valeo, Volvo, and other references. These numbers should be used as research and comparison tools. A unit-number match does not replace verification of polarity, press-fit diameter, voltage range, current rating, height, lead arrangement, and rectifier design.

Compatibility and Fitment Checklist

Before ordering diode 32-1050101, confirm that the original failed component is positioned and identified as a negative diode. Measure the press-fit section and verify that the receiving rectifier plate is intended for a 13mm diode body. Compare the original component’s height and lead length with the listed measurements. Confirm that the alternator and rectifier system are designed for a 50-amp diode with a 20–24-volt avalanche rating.

Review the complete Bosch, Valeo, Lester, manufacturer, and unit numbers instead of matching only a shortened reference. Examine the product photographs from the same orientation as the removed component. Compare the lead shape, body profile, contact surfaces, surrounding plate arrangement, and installation direction. Alternators carrying similar external part numbers may contain different internal rectifier designs because of production changes or manufacturer revisions. If any specification conflicts, request technical confirmation before attempting installation.

Installation and Rebuilding Guidance

Installation should be completed by a technician or rebuilder who understands alternator rectifier service and has suitable pressing, measuring, soldering, and testing equipment. Disconnect the vehicle or equipment power source according to the applicable service procedure before removing the alternator. During disassembly, document stator connections, diode positions, insulators, terminal orientation, fasteners, and wire routing.

Test the rectifier and individual diodes with appropriate electrical equipment before replacing components. Use a proper support fixture and pressing tool so installation force is applied evenly to the correct area of the diode body. Do not hammer the diode, press directly against the lead, enlarge the rectifier opening, or force a mismatched part into position. Incorrect pressure can damage the diode, rectifier plate, insulation, or heat-transfer surface.

After installation, verify diode direction, polarity, continuity, electrical isolation, rectifier condition, and alternator output. Inspect related components such as stator leads, soldered connections, regulators, bearings, and heat-dissipation surfaces. Professional bench testing can help identify incorrect polarity, weak connections, excessive ripple, or charging irregularities before the alternator is returned to service.
