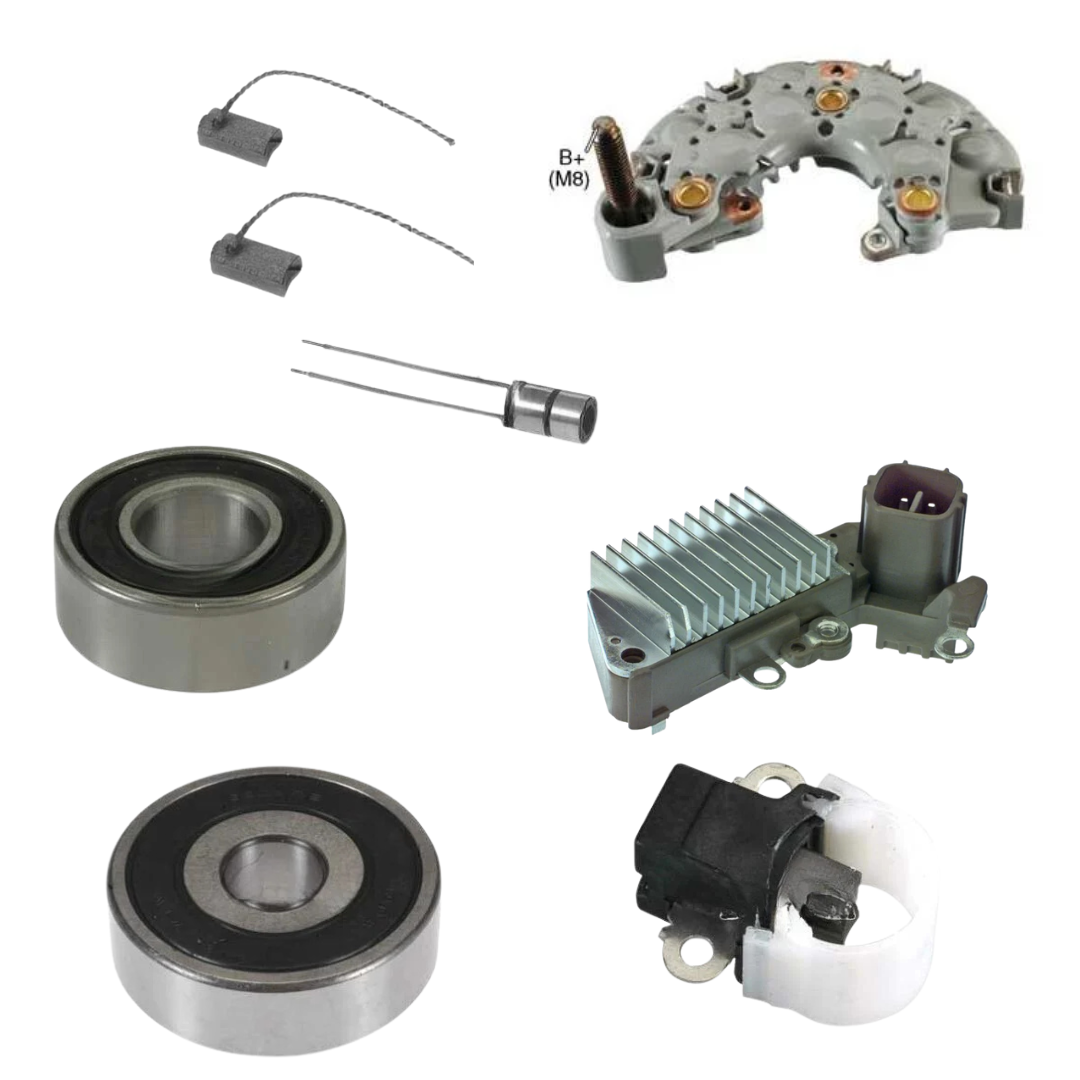

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brush Holder
Brushes
Rectifier
Slip Ring
Voltage Regulator
NOT INCLUDED IN REBUILD KIT:
Bearing Cover
Bearing Retainer
Connector
Diodes Negative
Diodes Positive
Ground Strap
Insulator 1
Nut 1
Nut 2
Nut 3
Pulley
Pulley Nut
Rectifier Cover
Screw 1
Screw 2
Screw 3
Seal 1
Seal 2
Spacer
Stator
Thru Bolt
Washer Ring
Washer Spring
Specifications
- MFR:DENSO
- AMPERAGE:120
- DESIGN:IR/IF
- FEATURE 1:100% New
- PLUG CLOCK:12:00 Plug Clock
- PLUG CODE:296
- PULLEY CLASS:S6
- ROTATION:CW
- SPECS FOR:Denso IR/IF
- SPECS:120 Amp/12 Volt, CW, 6-Groove Pulley
- VOLTAGE:12
USED ON
- Acura (2001-2003)
VEHICLE APPLICATION
|
Acura Car |
CL V6 3.2L 3210cc 2001-2003 TL V6 3.2L 3210cc 2002- 2003 |
LESTER NUMBERS
- 13836
Replaces
- Acura 06311-PGE-505RM, 31100-PFW-J01, 31100-PFW-J02, 31100-PFW-J02RM, CJG69, CLG69, CLH09, Denso 102211-0690, 102211-0691, 102211-3090
Read More
